NIGHT VISION
HOUSING GUIDE

Mono, Bino, or Pano? Fixed bridge or articulating? Manual gain or automatic? Aluminum or polymer? This guide breaks down the housing features that actually matter when choosing the foundation of your night vision system.

Platform Selection Housing Features Housing Comparison QDEF Selection Guide

START HERE

THE HOUSING IS THE FOUNDATION

The housing determines how your night vision system interfaces with you. It affects weight, articulation, controls, durability, battery configuration, ergonomics, and how the system behaves when mounted to a helmet.

Unlike image intensifier tubes, a housing doesn't directly determine image quality. What it determines is how effectively you can use those tubes.

There isn't one housing that is right for everyone. The best choice depends on your application, feature requirements, weight goals, durability expectations, and budget.

01 // CHOOSE YOUR PLATFORM

MONO VS BINO VS PANO

Before choosing a specific housing, determine which overall platform makes sense for how you intend to use your night vision.

01 //

MONO

SINGLE-TUBE SYSTEM

A monocular uses one intensifier tube and provides the lowest weight, lowest entry cost, and considerable flexibility.

  • Lightweight
  • Lower system cost
  • Helmet or handheld use
  • Highly versatile
02 //

BINO

DUAL-TUBE SYSTEM

Binocular systems use two intensifiers and provide a more natural viewing experience for extended helmet-mounted use.

  • Two intensified images
  • Natural viewing experience
  • Excellent situational awareness
  • Most common premium platform
03 //

PANO

PANORAMIC SYSTEM

Panoramic systems increase horizontal field of view beyond conventional monocular and binocular configurations.

  • Expanded field of view
  • Maximum situational awareness
  • Premium system architecture
  • Higher weight and cost

02 // BRIDGE DESIGN

FIXED VS ARTICULATING

FIXED //

RUGGED SIMPLICITY

A fixed-bridge housing keeps both optical pods in a fixed relationship to the bridge.

The major advantage is simplicity. Fewer moving components can contribute to an extremely rugged housing architecture.

The tradeoff is reduced flexibility when transitioning the system away from the eyes or operating one eye independently.

ARTICULATING //

MODERN ERGONOMICS

Articulating housings allow each optical pod to rotate independently away from the user's eyes.

This can reduce the system's profile when stowed, allow one pod to be moved out of the way, and provide greater flexibility during use.

Articulation has become one of the most popular features on modern binocular night vision systems.

03 // FEATURES

WHAT FEATURES ACTUALLY MATTER?

01 // MANUAL GAIN

CONTROL IMAGE BRIGHTNESS

Manual gain allows the user to reduce or increase the brightness of the intensified image.

This can be useful in changing lighting environments and can reduce perceived image brightness when operating around significant ambient light.

Manual gain is useful — but it is not mandatory for a high-performance system.

02 // IPD STOPS

REPEATABLE POD POSITION

IPD — interpupillary distance — stops limit how far inward an articulating pod can rotate.

Once adjusted for the user, they make it easier to return the pods to a consistent viewing position instead of readjusting alignment every time the system is deployed.

03 // POD SHUTOFF

INDEPENDENT CONTROL

Some articulating housings automatically deactivate an individual optical pod when it is rotated upward or away from the user's eye.

This allows one side of the system to be temporarily stowed without leaving the intensifier operating unnecessarily.

04 // ONBOARD IR

BUILT-IN ILLUMINATION

Some housings include an integrated infrared illuminator for close-range supplemental illumination.

Onboard IR can be useful for administrative tasks and confined spaces, but many professional users also rely on dedicated helmet or weapon-mounted infrared illumination.

05 // POWER

BATTERY ARCHITECTURE

Housing designs commonly use AA or CR123 batteries, while some systems support external battery packs.

External packs can relocate weight toward the rear of the helmet and may increase available runtime depending on the system.

06 // MODULARITY

HOW THE SYSTEM CAN EVOLVE

Modern housings increasingly use modular designs that allow components, bridges, power configurations, or optical assemblies to be serviced or changed.

For customers planning to keep a system long term, architecture and serviceability can matter as much as the original feature list.

04 // MATERIALS

ALUMINUM VS POLYMER

ALUMINUM //

DURABILITY-FOCUSED

Aluminum housings are typically chosen when rigidity, impact resistance, and a highly durable structural platform are priorities.

Modern CNC-machined aluminum systems can provide excellent strength, but they generally carry a weight penalty compared with equivalent reinforced-polymer designs.

REINFORCED POLYMER //

WEIGHT-FOCUSED

Modern reinforced and carbon-fiber-filled polymers can dramatically reduce housing weight while maintaining impressive durability.

They are not simply "cheap plastic." Premium night vision housings increasingly use engineered polymer materials specifically because of their strength-to-weight advantages.

QDEF NOTE // Weight should be evaluated as part of the complete system. Tubes, optics, mounts, external battery packs, helmet accessories, and counterweights all contribute to how a night vision setup actually feels on the helmet.

05 // MONOCULAR PLATFORMS

POPULAR MONOCULAR HOUSINGS

Monocular housings remain one of the most versatile ways to enter analog night vision. They can provide excellent capability with less weight and cost than multi-tube systems.

MONO // 01

RVM-14

AB NIGHT VISION

The RVM-14 modernizes the traditional PVS-14 concept with a rugged aluminum housing while maintaining compatibility with common PVS-14-style optical components.

  • Aluminum construction
  • Manual gain
  • Onboard IR
  • CR123 power
BEST FIT Users wanting a rugged modern monocular built around the proven PVS-14 ecosystem.
MONO // 02

PVS-14

NOCTIS / CARSON STYLE

The PVS-14 remains the benchmark monocular platform. Decades of military and commercial use have created an enormous ecosystem of compatible optics, accessories, replacement parts, and mounting solutions.

  • Proven architecture
  • Manual gain
  • Onboard IR
  • Large aftermarket ecosystem
BEST FIT Buyers who value proven compatibility, serviceability, and maximum parts availability.
MONO // 03

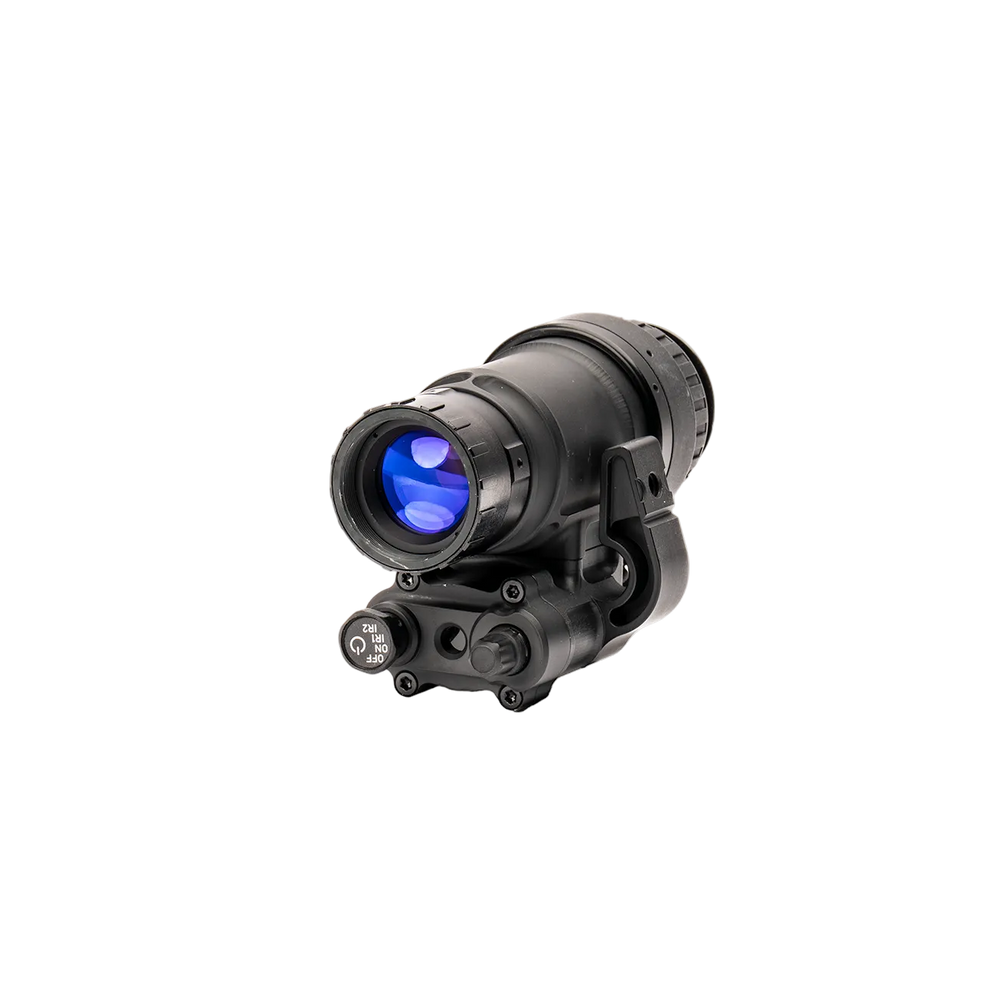

MH-14

LOW LIGHT INNOVATIONS

The MH-14 is a modern monocular housing designed to combine familiar PVS-14-style architecture with contemporary materials, ergonomics, and construction.

  • Modern monocular architecture
  • Manual gain
  • Onboard IR
  • Common optical compatibility
BEST FIT Users who want familiar monocular capability in a more contemporary housing.
MONO // 04

TALON

NOCTURN INDUSTRIES

The Talon takes a weight-focused approach to the monocular platform using modern reinforced-polymer construction and updated ergonomics.

  • Extremely lightweight architecture
  • Manual gain
  • Adjustable onboard IR
  • Modern reinforced-polymer construction
BEST FIT Weight-conscious users looking for a modern alternative to traditional PVS-14 architecture.

06 // BINOCULAR PLATFORMS

POPULAR BINOCULAR HOUSINGS

The modern binocular market offers everything from extremely simple, rugged designs to highly modular platforms with manual gain, independent pod control, IPD stops, external power capability, and advanced electronics.

BINO // 01

RNVG-A

AB NIGHT VISION

The RNVG-A brings articulation to the ruggedized RNVG design philosophy, combining an aluminum architecture with independently articulating optical pods.

  • Aluminum construction
  • Articulating pods
  • Onboard IR
  • Durability-focused architecture
BEST FIT Users prioritizing rugged construction while still wanting modern pod articulation.
BINO // 02

MGA

AB NIGHT VISION

The MGA combines articulating binocular ergonomics with manual gain and a rugged aluminum housing architecture.

  • Manual gain
  • Articulating pods
  • Onboard IR
  • Aluminum construction
BEST FIT Customers wanting an aluminum articulating bino with manual image-brightness control.
BINO // 03

DTNVS

ACT IN BLACK

The DTNVS established itself as one of the most recognizable lightweight articulating binocular housings in the modern night vision market.

  • Articulating pods
  • Independent pod shutoff
  • Lightweight polymer architecture
  • Optional IPD stops
BEST FIT Users who prioritize proven articulating ergonomics and low housing weight.
BINO // 04

DTNVS-MG

ACT IN BLACK

The DTNVS-MG retains the basic DTNVS architecture while adding manual gain control for users who want direct image-brightness adjustment.

  • Manual gain
  • Articulating pods
  • Independent pod control
  • Optional IPD stops
BEST FIT Users who like DTNVS ergonomics but consider manual gain an important feature.
BINO // 05

MH-1

LOW LIGHT INNOVATIONS

The MH-1 is built around modularity, manual gain, articulation, and modern ergonomics while retaining a durable aluminum platform.

  • Manual gain
  • Articulating pods
  • IPD stops
  • Modular aluminum architecture
BEST FIT Customers looking for a feature-rich, modular aluminum binocular system.
BINO // 06

KATANA-M

NOCTURN INDUSTRIES

The Katana-M is focused on minimizing housing weight while retaining modern articulation and IPD control.

  • Extremely lightweight
  • Articulating pods
  • IPD stops
  • Carbon-fiber-reinforced polymer architecture
BEST FIT Users who place housing weight near the top of their priority list.
BINO // 07

KATANA-R

NOCTURN INDUSTRIES

The Katana-R applies the Katana design philosophy to a rugged aluminum architecture.

  • Articulating pods
  • IPD stops
  • Aluminum construction
  • Simplified controls
BEST FIT Customers who like the Katana concept but prefer an aluminum housing architecture.
BINO // 08

MANTICORE-M

NOCTURN INDUSTRIES

The Manticore-M combines lightweight reinforced-polymer construction with manual gain and a more feature-rich electronics package.

  • Manual gain
  • Articulating pods
  • IPD stops
  • Onboard IR
BEST FIT Buyers wanting manual gain and modern controls without moving to a heavier aluminum housing.
BINO // 09

MANTICORE-R

NOCTURN INDUSTRIES

The Manticore-R combines the Manticore control architecture with rugged aluminum construction.

  • Manual gain
  • Articulating pods
  • IPD stops
  • Aluminum construction
BEST FIT Feature-focused users who also prioritize a rugged aluminum housing.
BINO // 10

RAPTOR

NOCTURN INDUSTRIES

The Raptor represents a modern feature-focused Nocturn platform built around articulation, manual gain, onboard illumination, and contemporary controls.

  • Manual gain
  • Articulating pods
  • IPD stops
  • Adjustable onboard IR
BEST FIT Customers seeking a feature-rich Nocturn binocular platform.
SPECIFICATION NOTE // Housing manufacturers periodically revise designs, electronics, materials, accessories, and specifications. Exact weight, runtime, warranty coverage, and configuration can vary by housing revision and selected components. Refer to the current product listing or contact Quad Defense when an individual specification is critical to your build.

07 // QUICK REFERENCE

BINOCULAR FEATURE COMPARISON

HOUSING ARTICULATION MANUAL GAIN IPD STOPS ONBOARD IR GENERAL FOCUS
RNVG-A Yes No No Yes Rugged aluminum
MGA Yes Yes No Yes Manual-gain aluminum
DTNVS Yes No Optional Yes Lightweight ergonomics
DTNVS-MG Yes Yes Optional Yes Lightweight + gain
MH-1 Yes Yes Yes Yes Modular aluminum
Katana-M Yes No Yes No Minimum weight
Katana-R Yes No Yes No Simple aluminum
Manticore-M Yes Yes Yes Yes Lightweight + features
Manticore-R Yes Yes Yes Yes Rugged + features
Raptor Yes Yes Yes Yes Feature-focused

08 // QDEF PRIORITIES

WHAT SHOULD I ACTUALLY PRIORITIZE?

Housing comparisons can quickly turn into a checklist of features. Instead, start with what actually affects how you will use the system.

01 //
PLATFORM
Decide whether Mono, Bino, or Pano best fits the mission before worrying about individual housing features.
02 //
ERGONOMICS
Articulation, control placement, IPD adjustment, and how the system interfaces with your helmet matter every time you wear it.
03 //
WEIGHT
Less weight can improve comfort, but total system balance matters more than housing weight alone.
04 //
DURABILITY
Choose materials and architecture appropriate for how hard the device will actually be used.
05 //
FEATURES
Manual gain, IR, IPD stops, and external power are valuable when they support your use case — not simply because they appear on a spec sheet.
06 //
COMPLETE BUILD
Housing, optics, intensifier tubes, and helmet interface should be selected as one system rather than as isolated components.

09 // SELECTION GUIDE

WHICH TYPE OF HOUSING SHOULD YOU BUY?

WANT MAXIMUM VALUE? //

Start with a monocular. A quality Mono gives you true analog night vision capability with lower weight and lower system cost, while leaving room in the budget for better tubes and optics.

WANT THE MOST NATURAL EXPERIENCE? //

Move to a binocular platform. For most serious helmet-mounted users, a modern articulating bino provides an excellent balance of capability, ergonomics, weight, and cost.

WANT MINIMUM WEIGHT? //

Look closely at lightweight reinforced-polymer housings such as the Katana-M, DTNVS family, and other weight-focused designs.

WANT MAXIMUM RUGGEDNESS? //

Consider aluminum housings where structural rigidity and a durability-focused architecture outweigh absolute minimum weight.

WANT MANUAL GAIN? //

Narrow the list to housings built specifically around manual-gain tube control, then compare weight, materials, articulation, IPD features, and power architecture.

WANT MAXIMUM FIELD OF VIEW? //

A panoramic system changes the equation entirely. If expanded horizontal field of view is the priority and the additional cost and weight are acceptable, Pano becomes the premium solution.

10 // BUILD THE SYSTEM

HOUSING IS ONLY ONE PART OF THE BUILD

The best housing doesn't automatically create the best night vision system.

Housing, optics, and image intensifier tubes all need to work together around your requirements and budget.

That's why The Dark Room starts with the platform, moves into housing selection, then allows you to configure optics and intensifier performance as one complete system.

THE QDEF RULE //

BUILD THE SYSTEM.
NOT THE SPEC SHEET.

The lightest housing isn't automatically the best. The housing with the most features isn't automatically the best. And the most expensive option isn't automatically the right choice.

The correct housing is the one that gives you the durability, ergonomics, controls, and architecture your application actually requires.

Quad Defense builds the housing, optics, and intensifier package around the complete mission — not a single number on a comparison chart.
