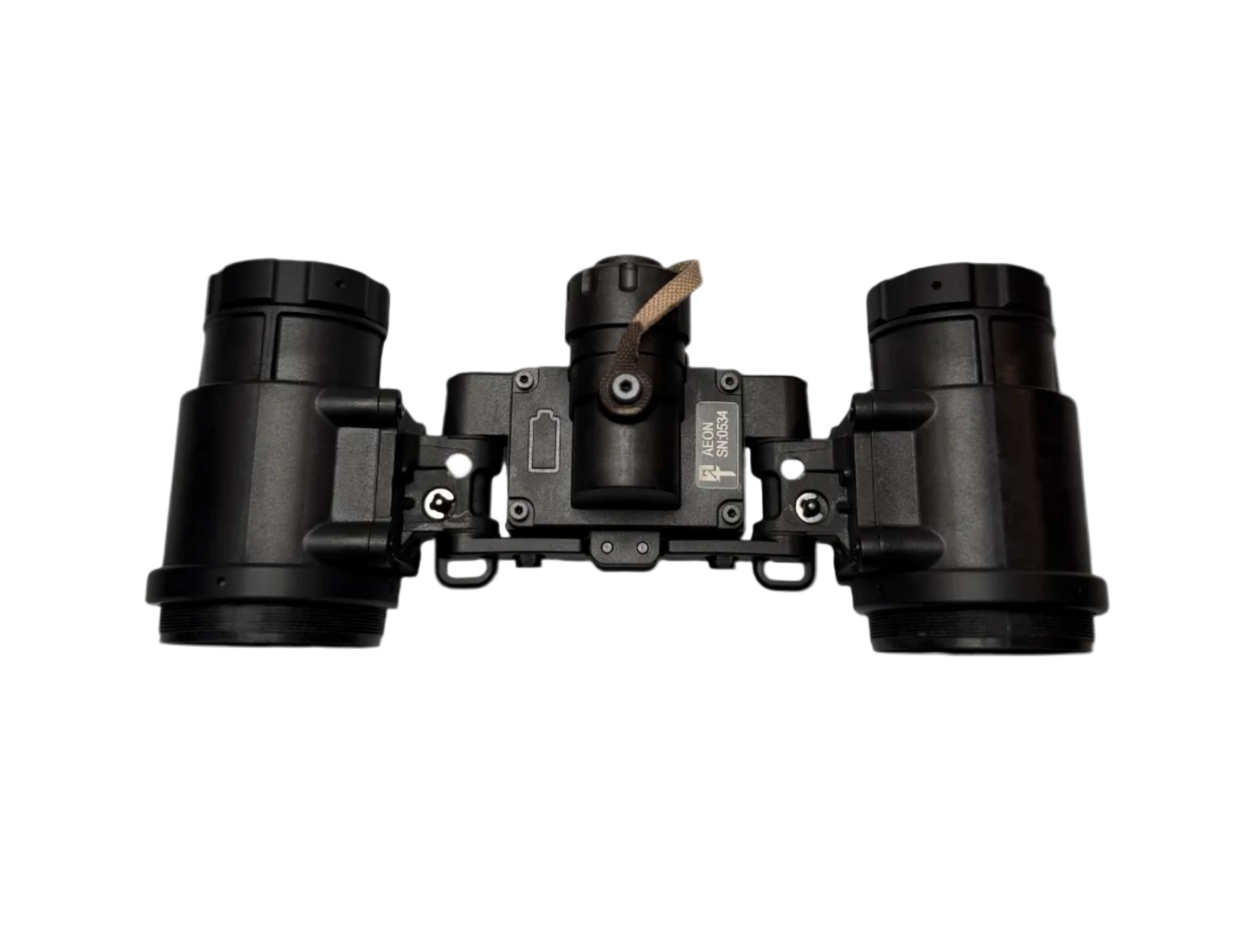

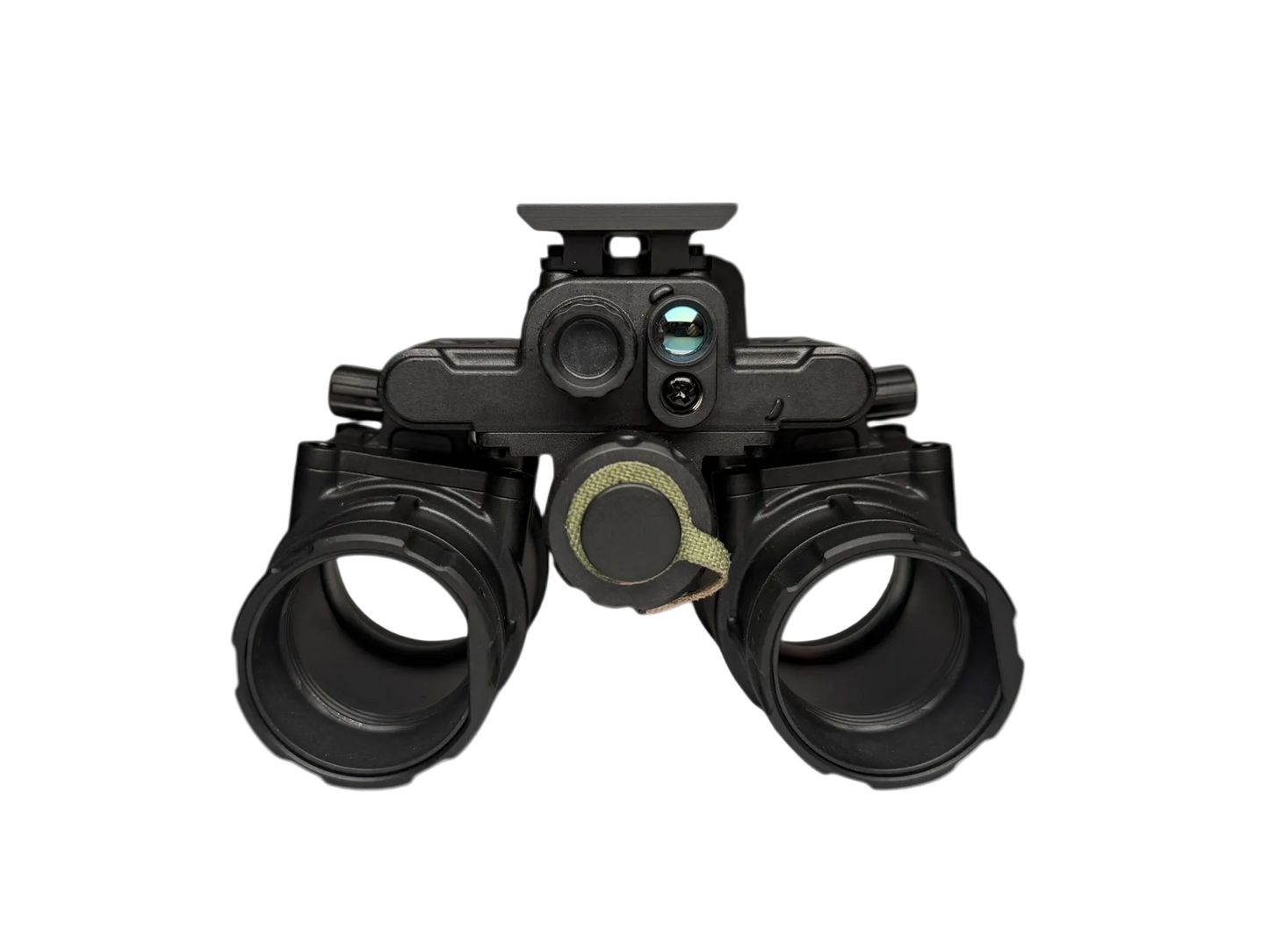

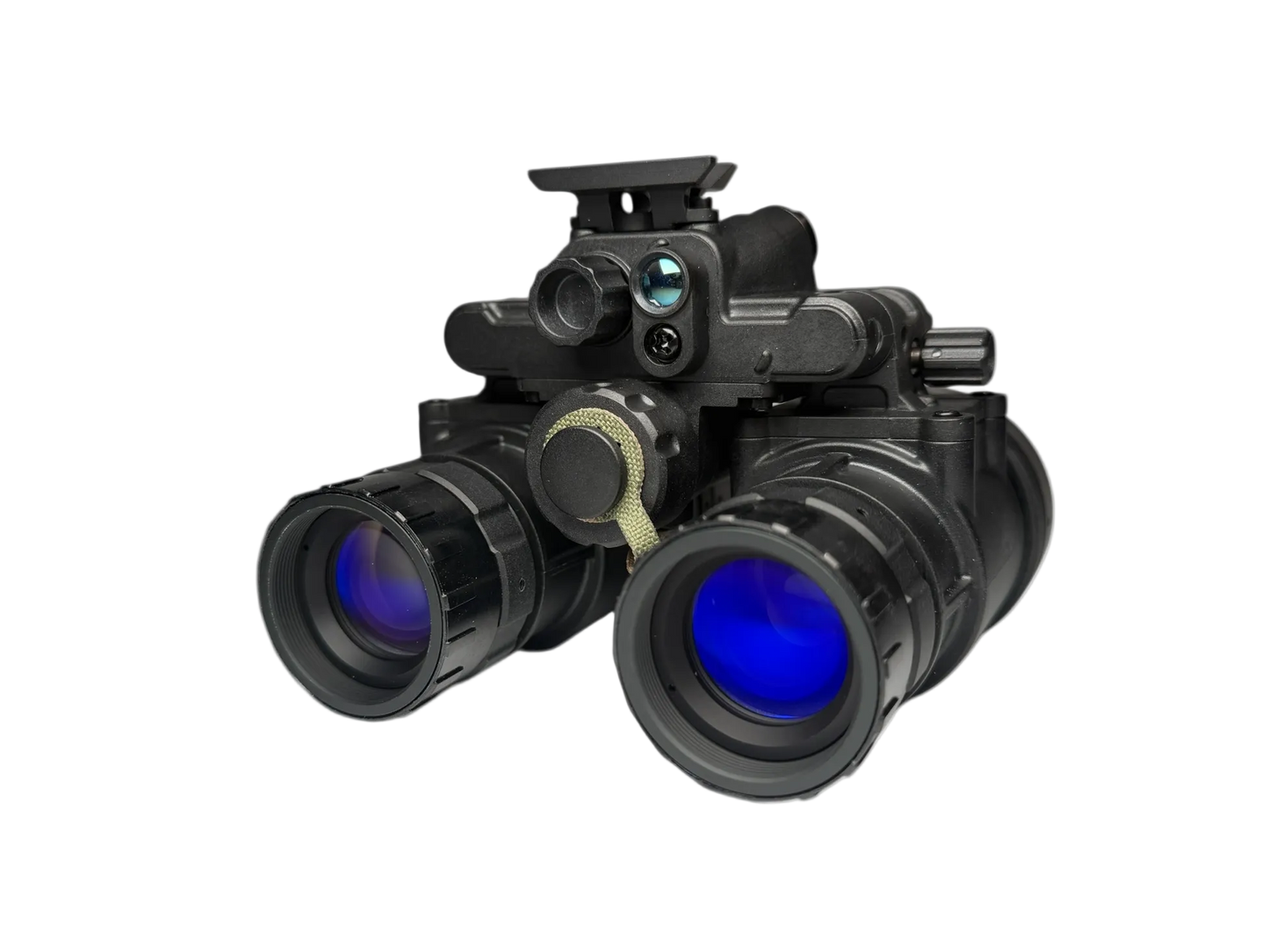

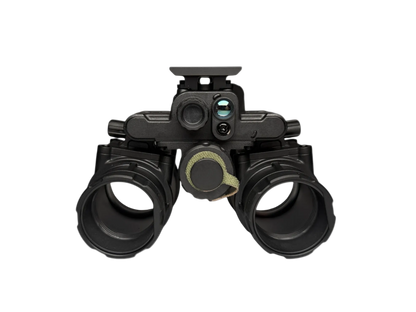

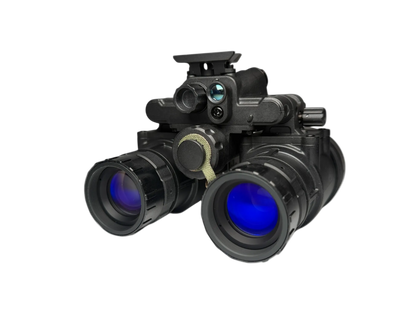

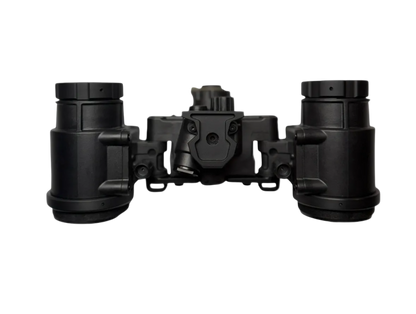

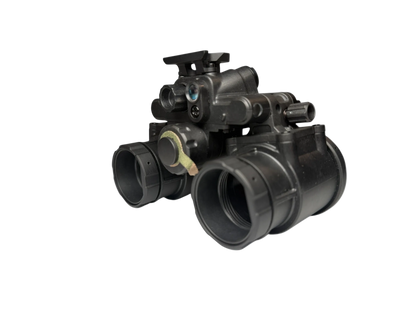

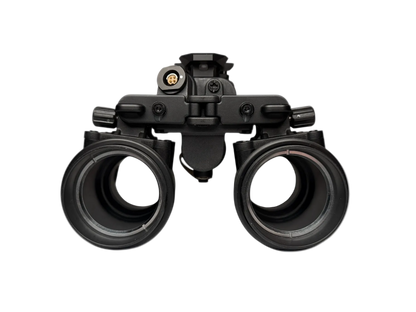

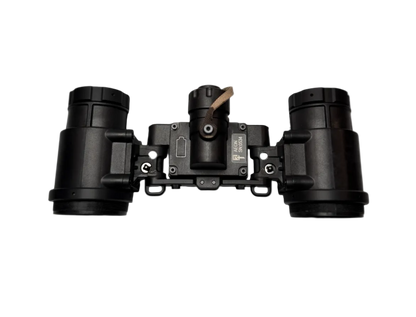

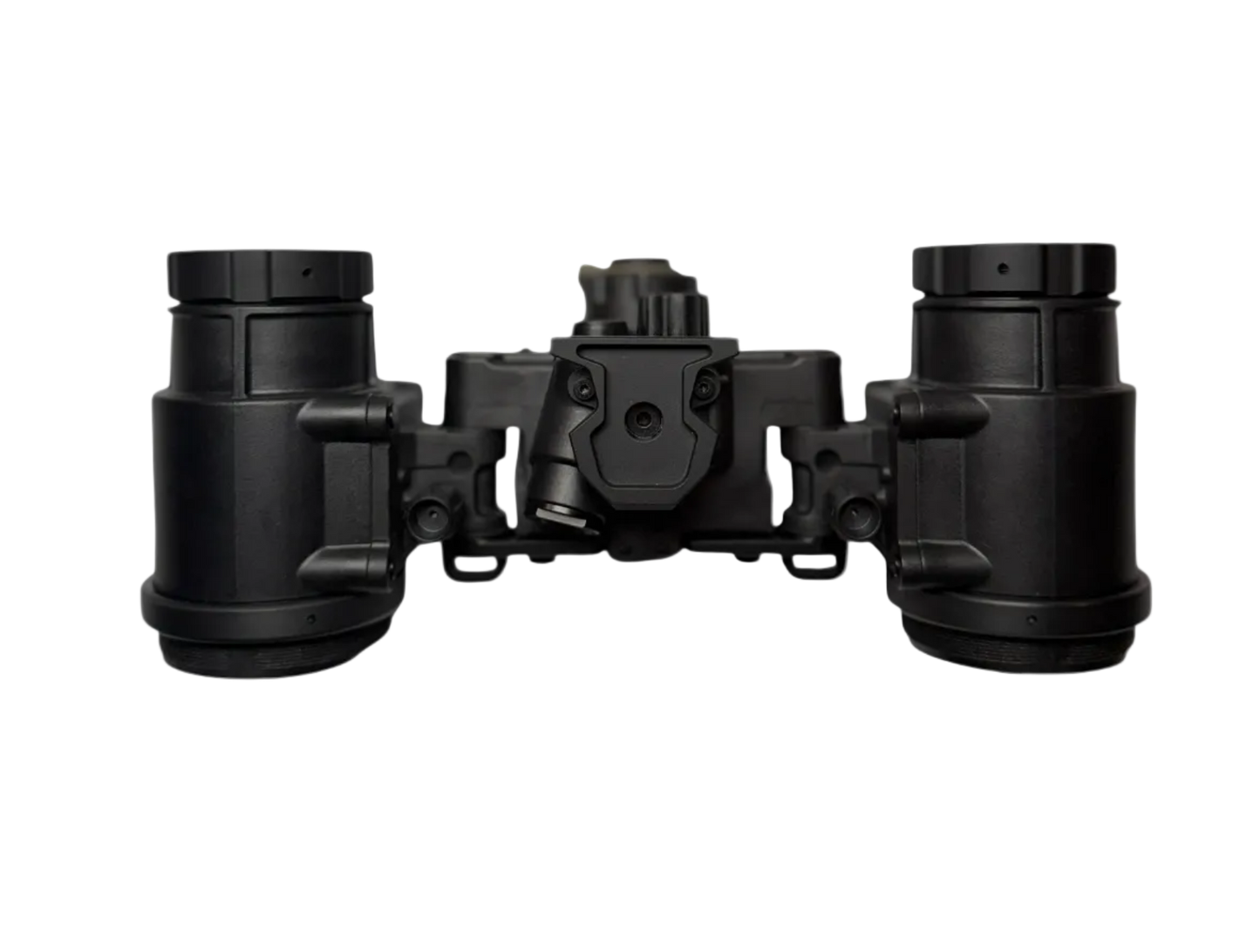

AeonTac | ANVB Night Vision Binocular HOUSING

AeonTac | ANVB Night Vision Binocular HOUSING

HOUSING KIT ONLY. NO INTENSIFIER TUBES INCLUDED! Only Housing and Optics.

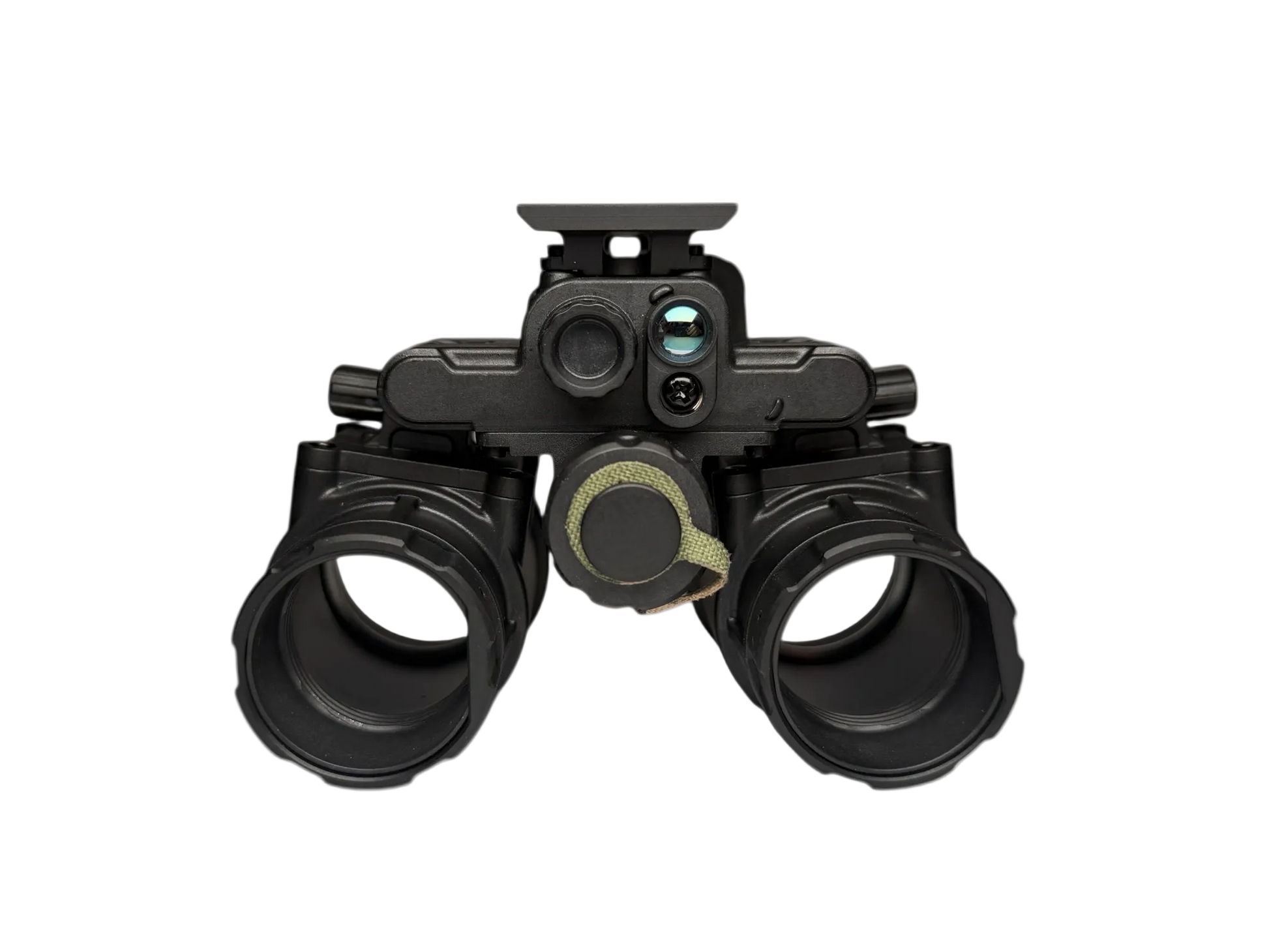

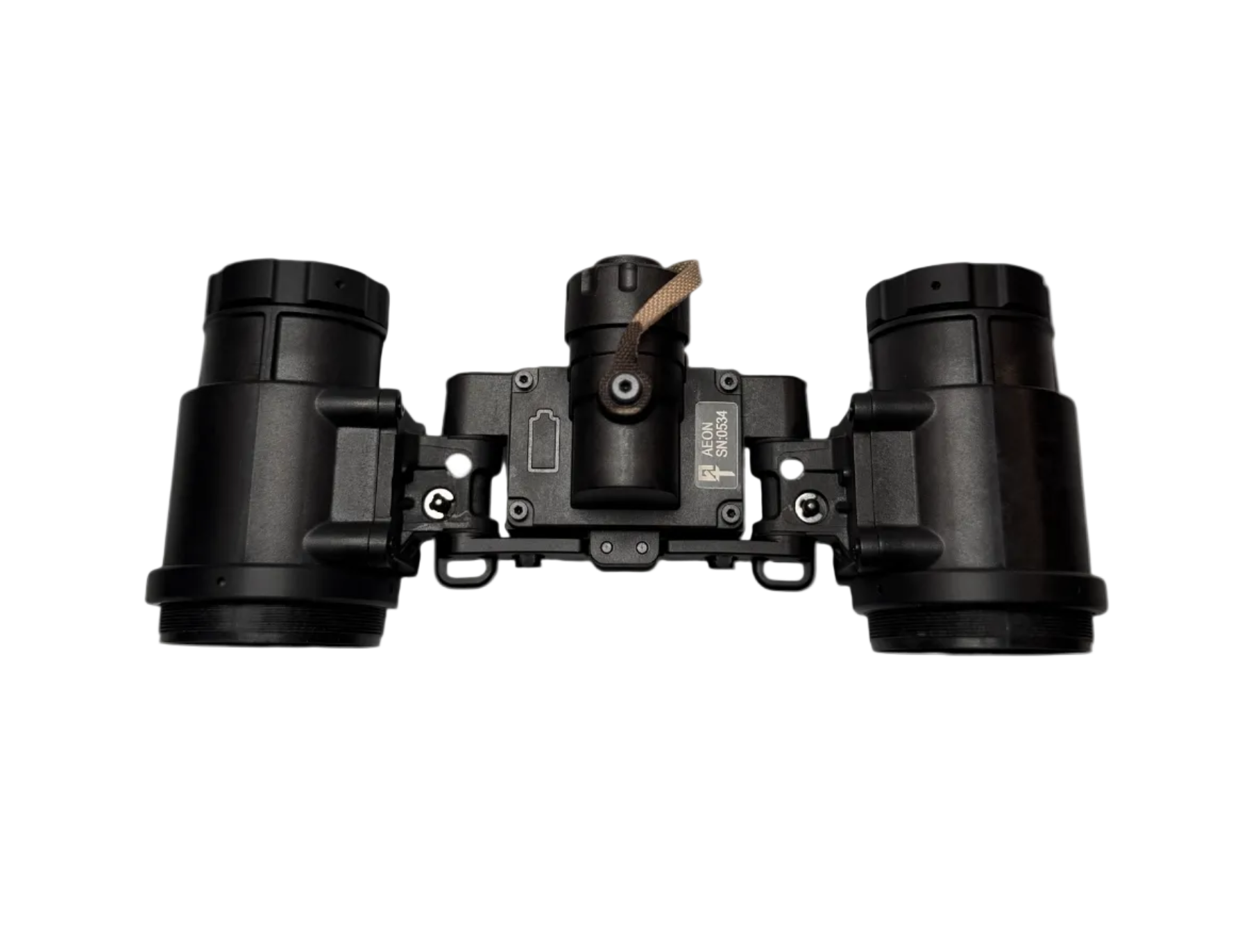

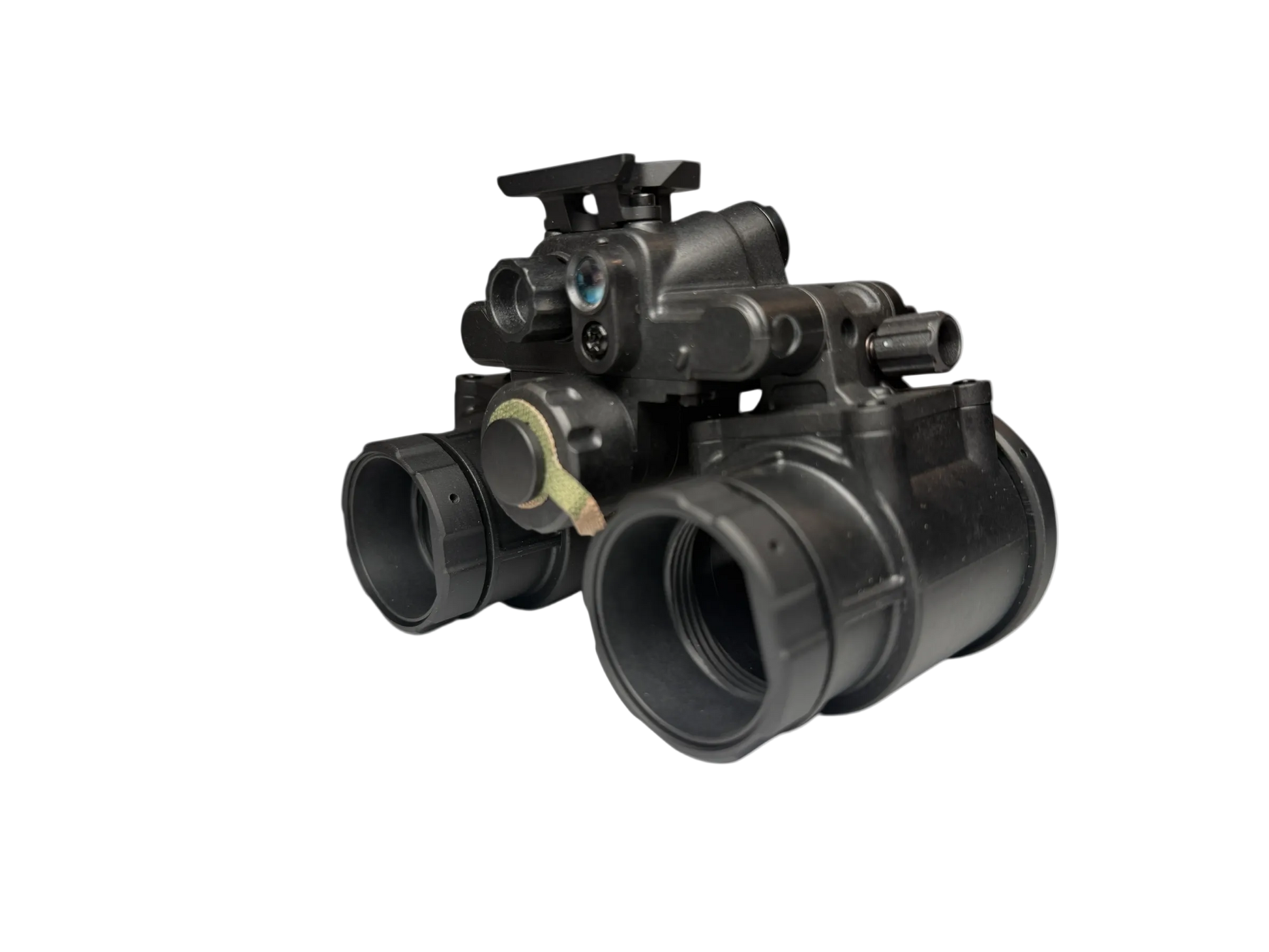

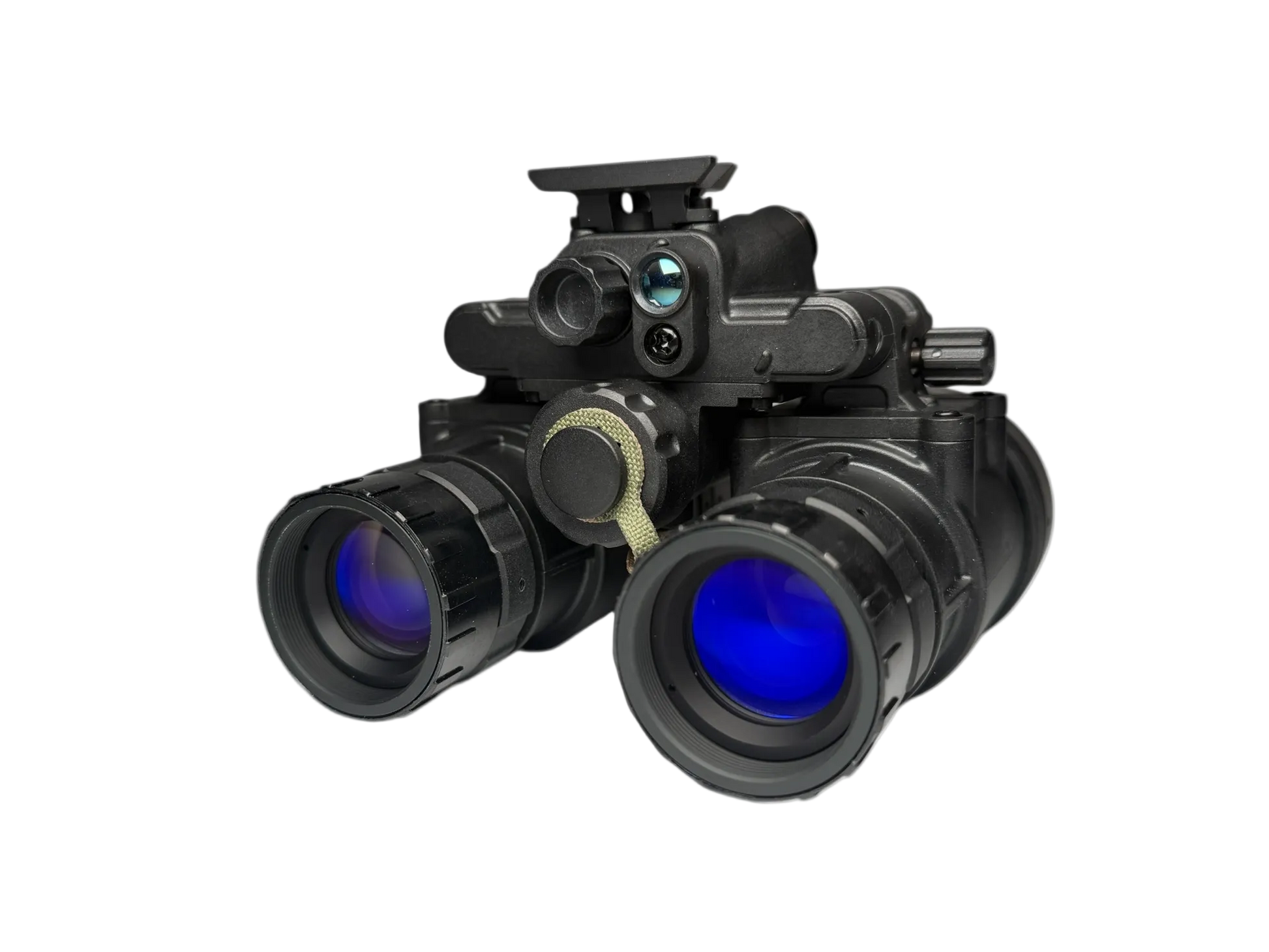

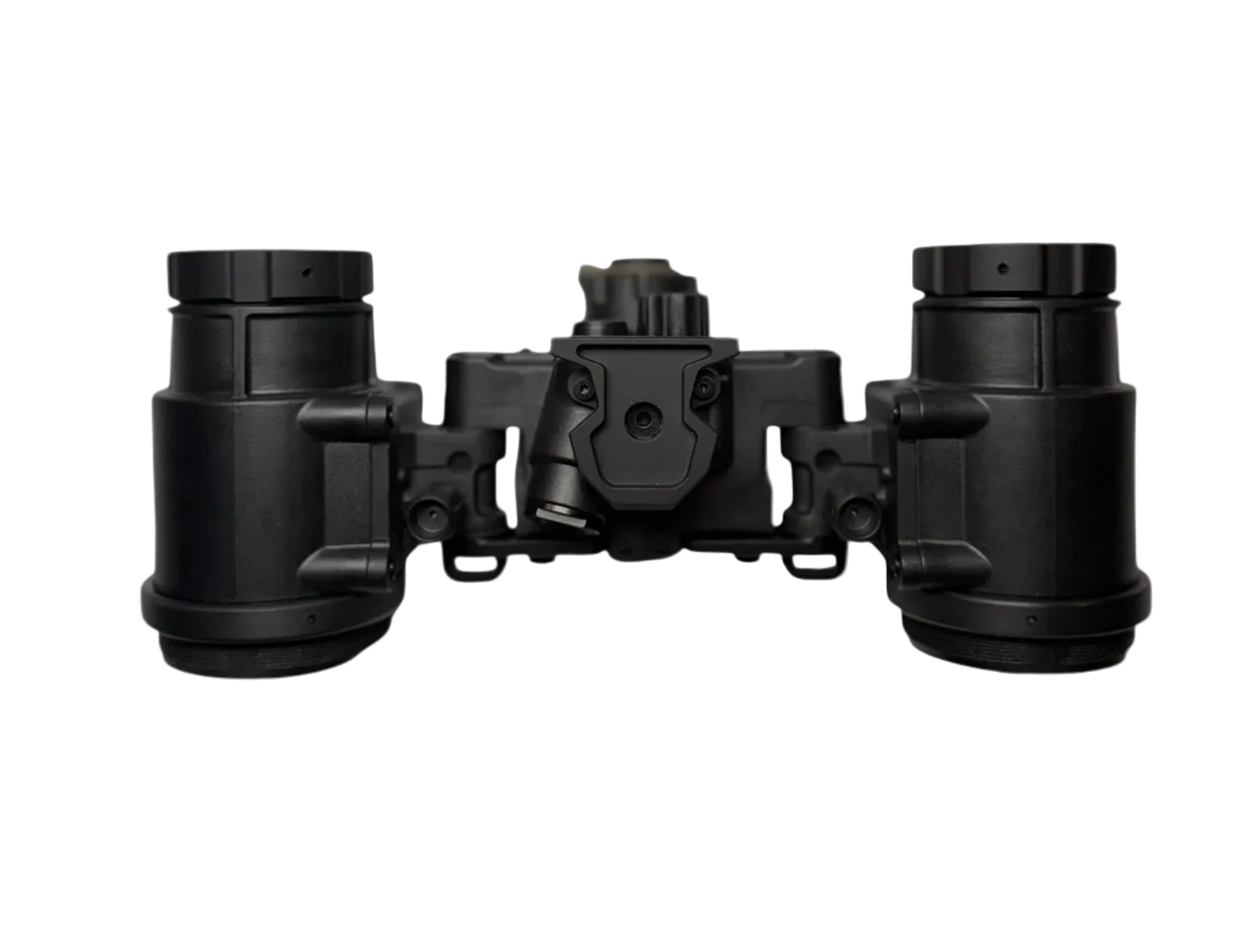

The Aeon ANVG Manual Gain Articulating Night Vision Binocular – Housing is a feature-rich dual-tube night vision platform designed for custom night vision builds.

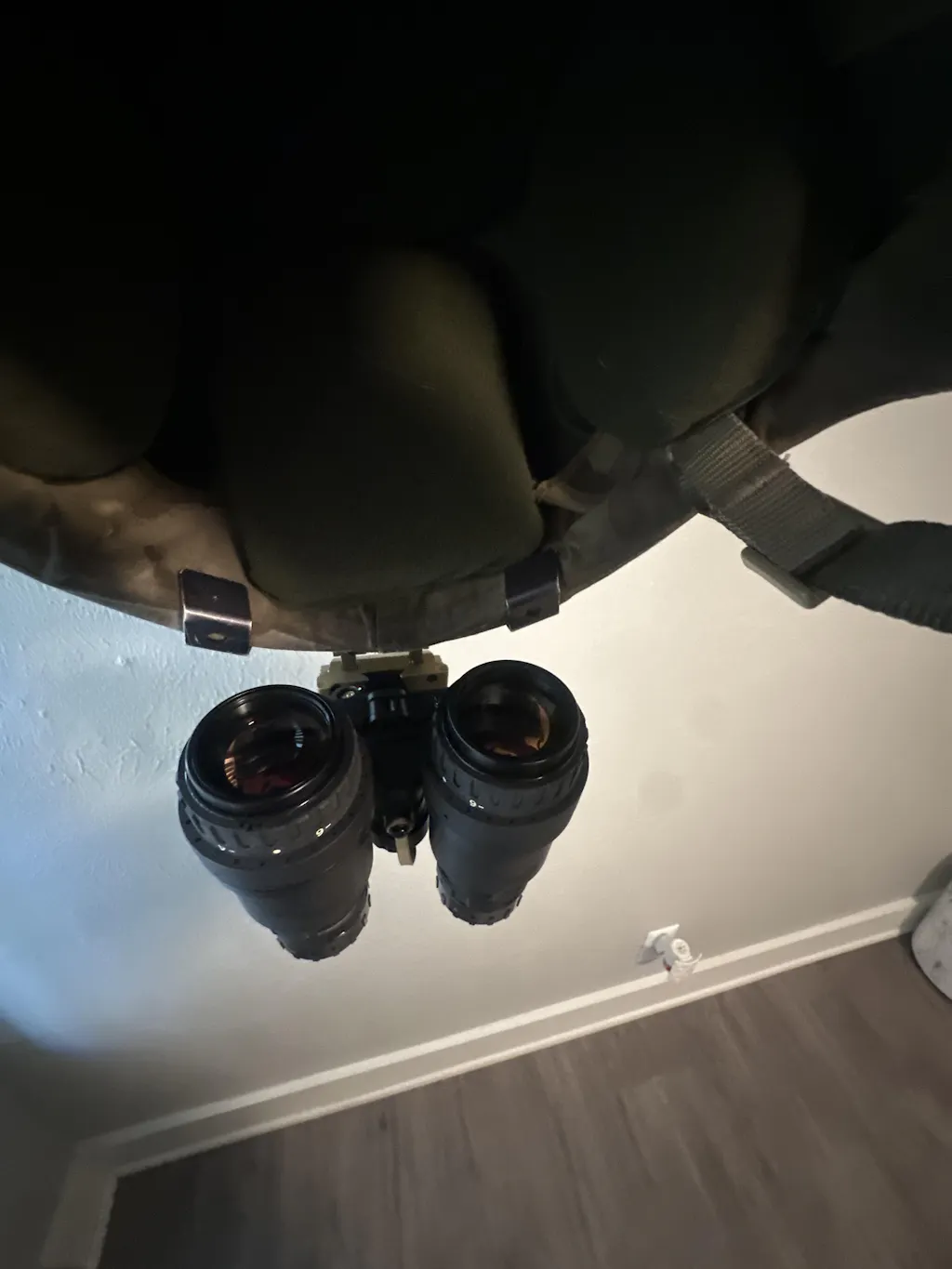

The ANVG housing includes premium features normally found only in higher-priced systems, including manual gain control, independent pod shutoff, built-in IR illuminator, IPD stops, external power capability, and articulating pods for improved helmet stow profile and ergonomics. The articulating design allows each pod to shut off automatically when rotated up, preventing light splash and preserving light discipline.

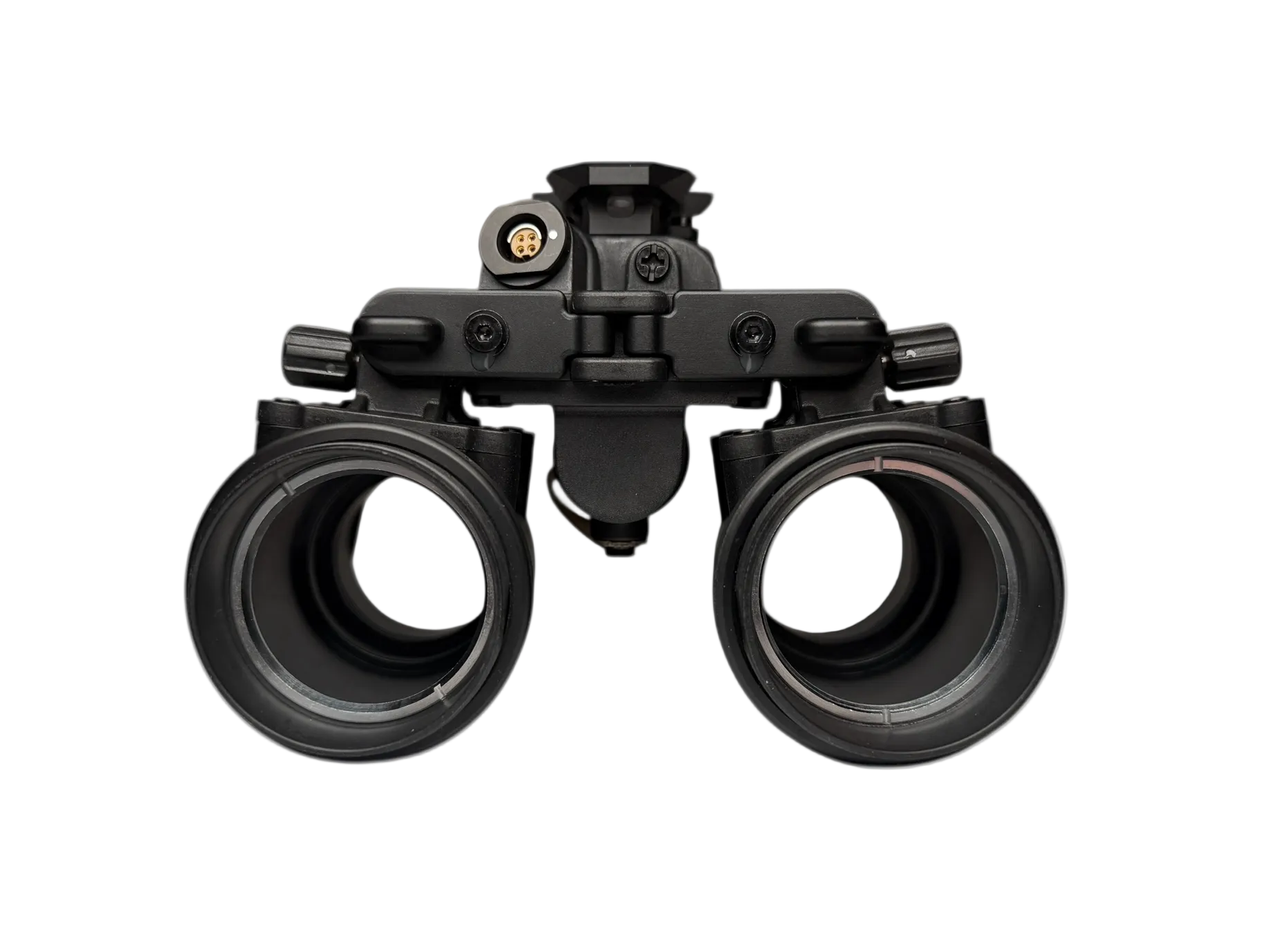

This housing supports both onboard power via a single CR123A battery and external power through the Fischer-style connector. The auto-stow function cuts power when the unit is flipped up on a helmet mount and restores power when deployed. The built-in dual-focus IR illuminator offers selectable Flood and Spot modes, controlled through the rotary gain switch. Status indicators notify the user when the IR illuminator is active or when a low battery is detected.

Unlike other housings in its class, the ANVG includes a 5-year housing warranty that covers accidental damage, making it one of the best values in the articulating housing market.



ANVG Housing Specifications

Specification Details
Power Source (1) CR123 battery
Operation Time ~25 hours
Magnification 1X
Focus Range 9.8 in to infinity
Field of View 40° (with standard optics)
Diopter Adjustment -6 to +2
Interpupillary Adjustment Yes (IPD stops)
Gain Control Manual
Weight 6.6 oz housing
IR Illuminator Built-in dual focus (Flood/Spot)
Indicators IR On + Low Battery
Water Resistance IPX7
External Power Fischer connector
Tube Compatibility MX-11769 and MX-10160
Optic Format PVS-14 eyepiece/objective compatible
Warranty 5-year housing warranty (includes accidental damage)


Housing Options:

  • Housing : Housing ONLY - No Glass or Intensifier Tubes
  • Housing + GLASS : Housing and Mil-Spec Glass ONLY - No Intensifier Tubes





Only Carson/Noctis or NVD optics on our build unless otherwise specified


What's Included

  • DTNVS Housing
  • Mil-Spec Optics

Specifications

  • POWER SOURCE: 1 CR123
  • FOCUS RANGE: 9.8” TO INFINITY
  • OPERATION TIME: APPROXIMATELY 25+ HOURS
  • MAGNIFICATION: (1X) ONE POWER
  • FIELD OF VIEW: 40 DEGREES
  • INTERPUPILLARY ADJUSTMENT: 51 TO 78MM
  • DIOPTER ADJUSTMENT: -6 TO +2
  • EYE RELIEF: 25MM
  • WEIGHT: 440g
  • WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS
  • INTENSIFIER TUBES: COMPATIBLE WITH MX-10160
  • COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
