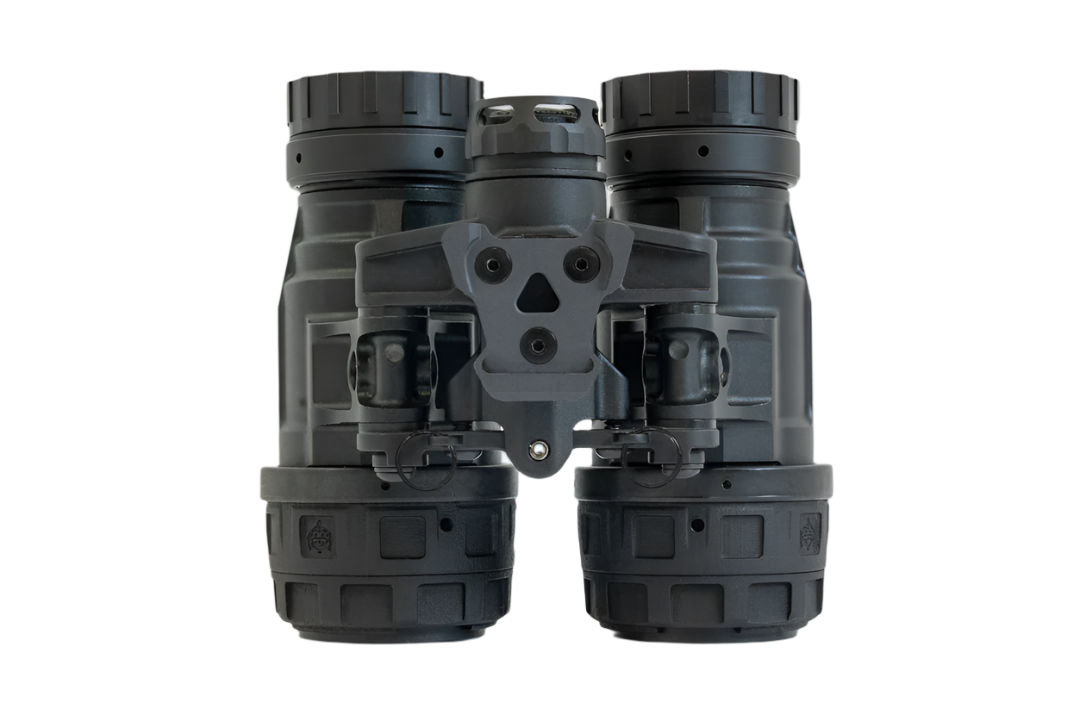

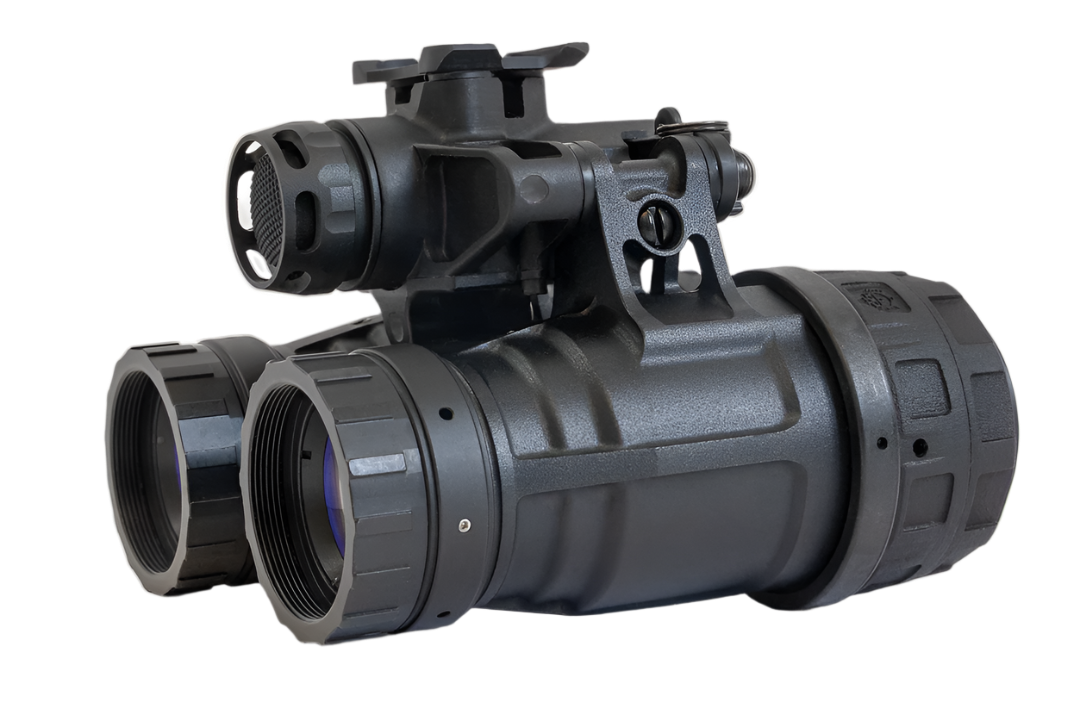

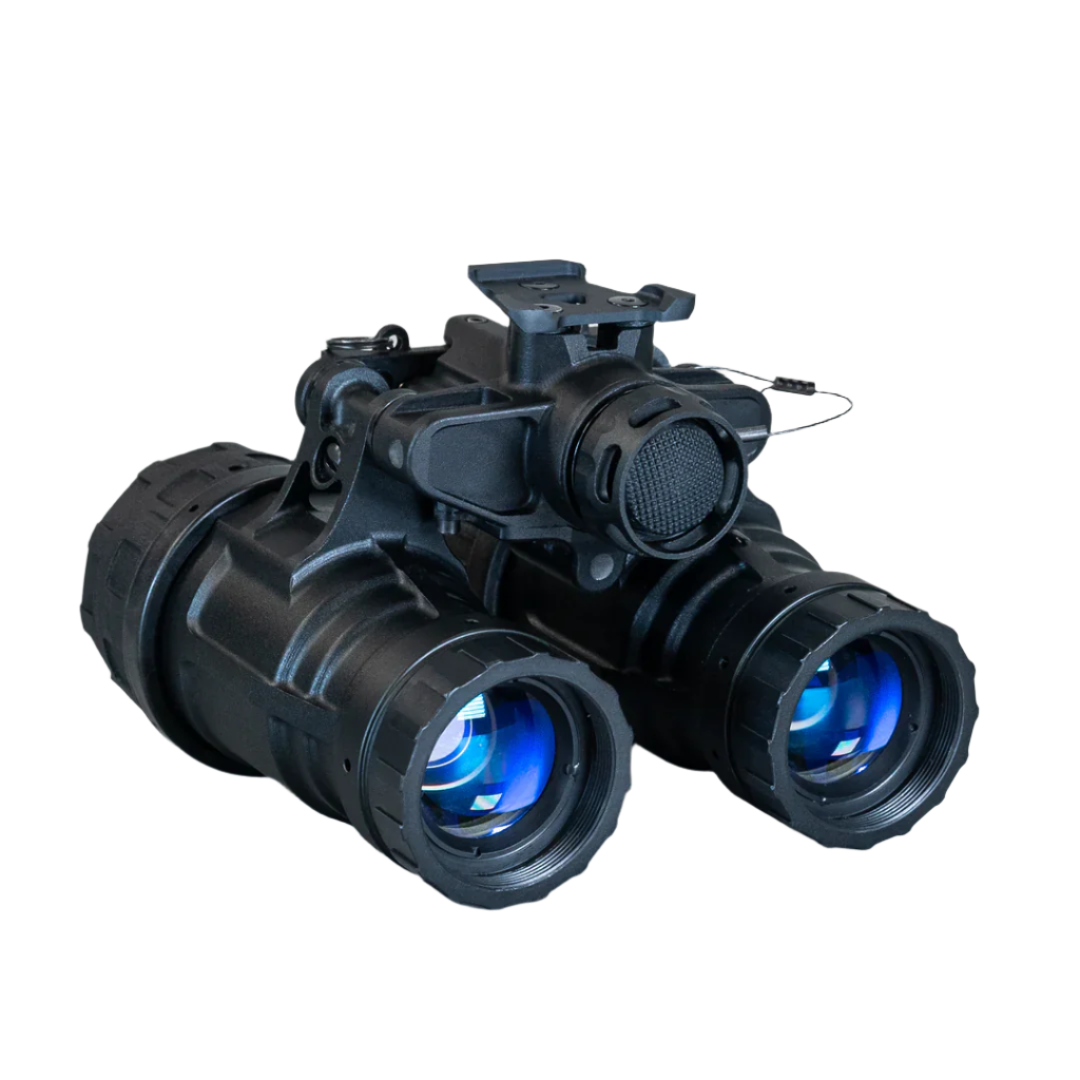

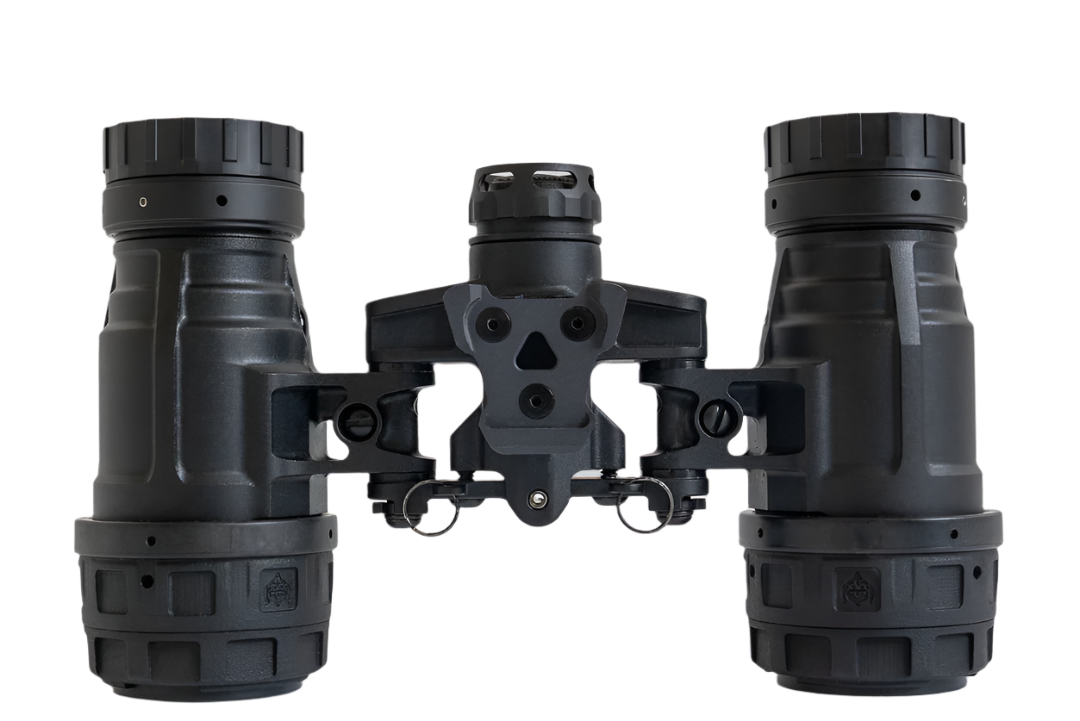

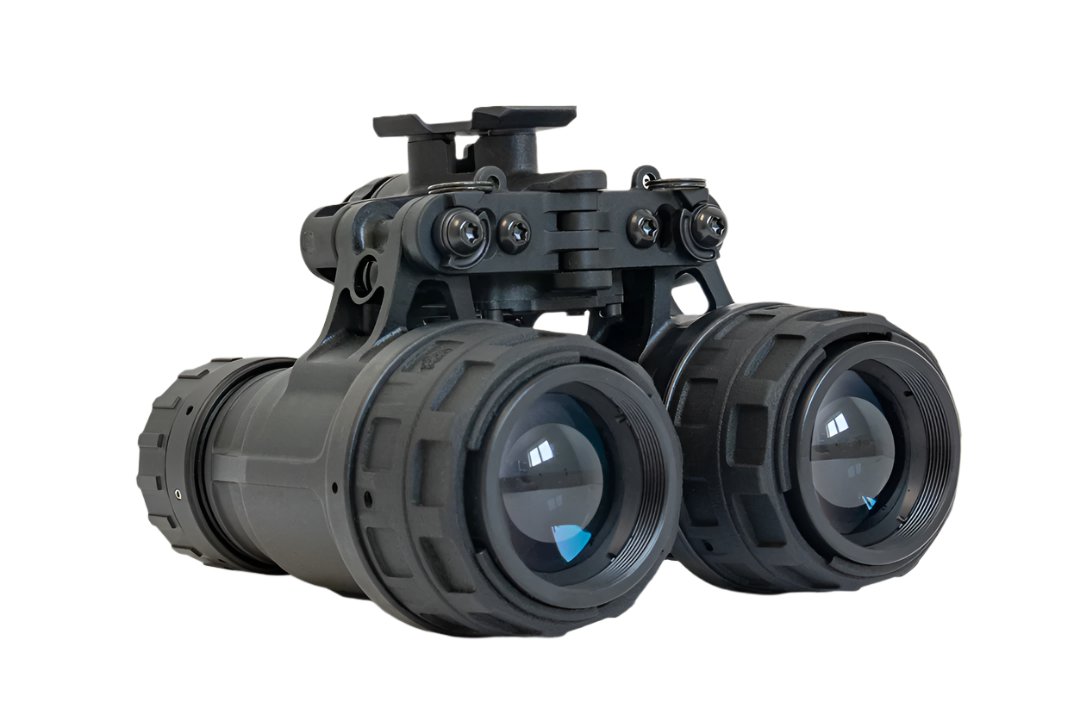

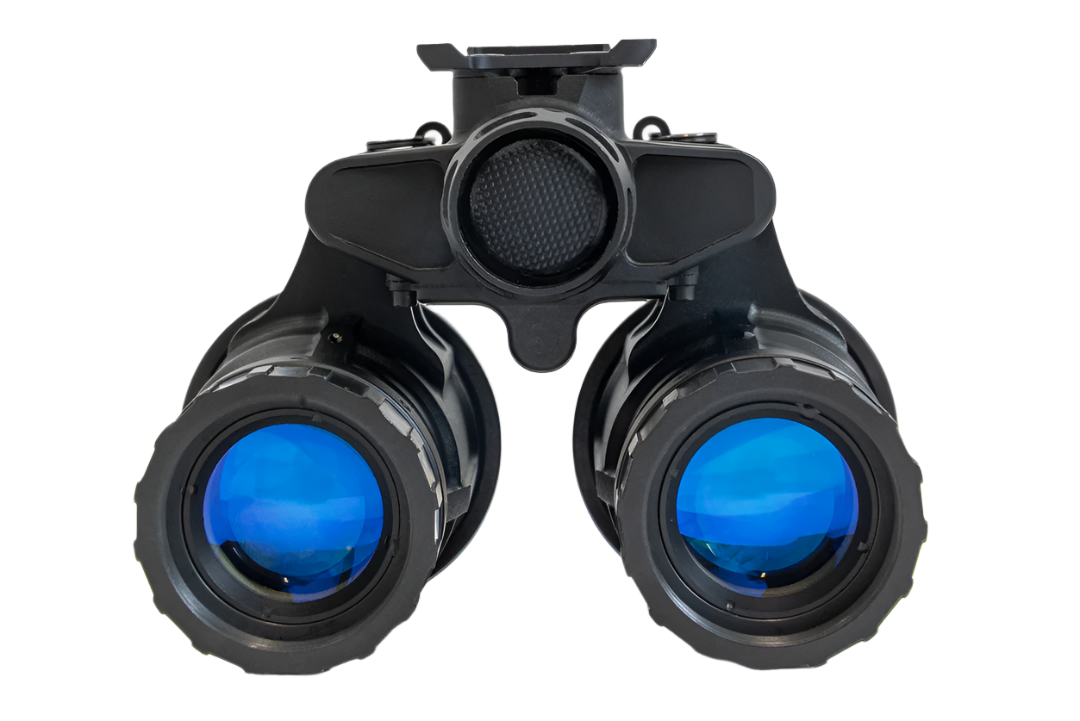

Nocturn | Katana-R Night Vision Binocular

Nocturn | Katana-R Night Vision Binocular

The Ultralight Articulating Night Vision Binocular - Katana Ruggedized (UANVB-R) “Katana Ruggedized” is a articulating binocular housing made of high strength aerospace grade 7075-T6 aluminum. Using advanced multi-axis CNC machining an ultra lightweight and robust design is achieved, including an optimal single piece pod geometry. This binocular includes features such as individual pod stow shutoff, IPD stops, user adjustable pod tension, and low battery indicator. The device is powered on-board by a single CR123A for a continuous runtime of ~25 hours, and equipped with a LEMO port for external power pack use to achieve extensive run time.



Features:

  • 7075-T6 aluminum construction
  • Simple push button on/off design
  • Toolless IPD stops included
  • External power port (LEMO 00B)
  • User adjustable pod tension
  • 24+ hour battery life (CR123A)
  • Individual pod on/off when articulated
  • Low battery indicator
  • IP68+ and MIL-STD-810H rated
  • Lifetime repair or replacement warranty (provided by Nocturn on housing)



Due to constant rotating inventory, not all intensifier tubes are listed. Please contact us if you don't see tubes with the specs you need

Only Carson/Noctis optics on our build unless otherwise specified

Colors may vary in photos but tubes are all the same color

What's Included

  • Katana-R Device
  • Spec Sheets
  • Hard Carry Case

Specifications

  • Material(s) – CNC machined 7075-T6 & 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium.
  • Finish – Mil-standard Type III class II hard anodize, H-Series Cerakote
  • Tube Type – 18mm MX-10160 or MX-11769 style with EGAC pigtail removed
  • IR Illuminator- No
  • Individual Pod on/off – Yes, individually.
  • Housing Weight – 4.93oz / 0.30 lbs / 140g
  • Device Weight Standard – 18.73oz / 1.17lbs / 530.98g
  • Device Weight Lightweight w/o battery – 15.48oz / 0.96lbs / 439.0g
  • On-Board Power – CR123A onboard with a runtime of ~25hours
  • Out-Board Power – Yes, LEMO port
  • Low Battery Indicator – Yes
  • Manual Gain Control – No
  • Ingress rating – Exceeds IP-68, and MIL-STD-810H
Regular price $2,449.00 USD
Regular price Sale price $2,449.00 USD
Sale Sold out
Shipping calculated at checkout.
