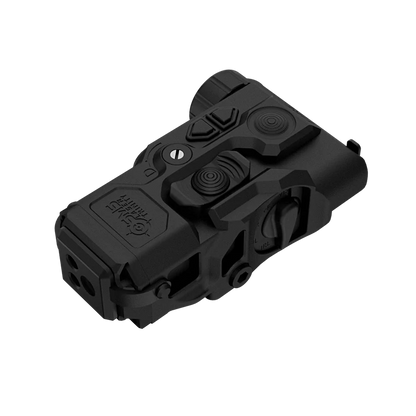

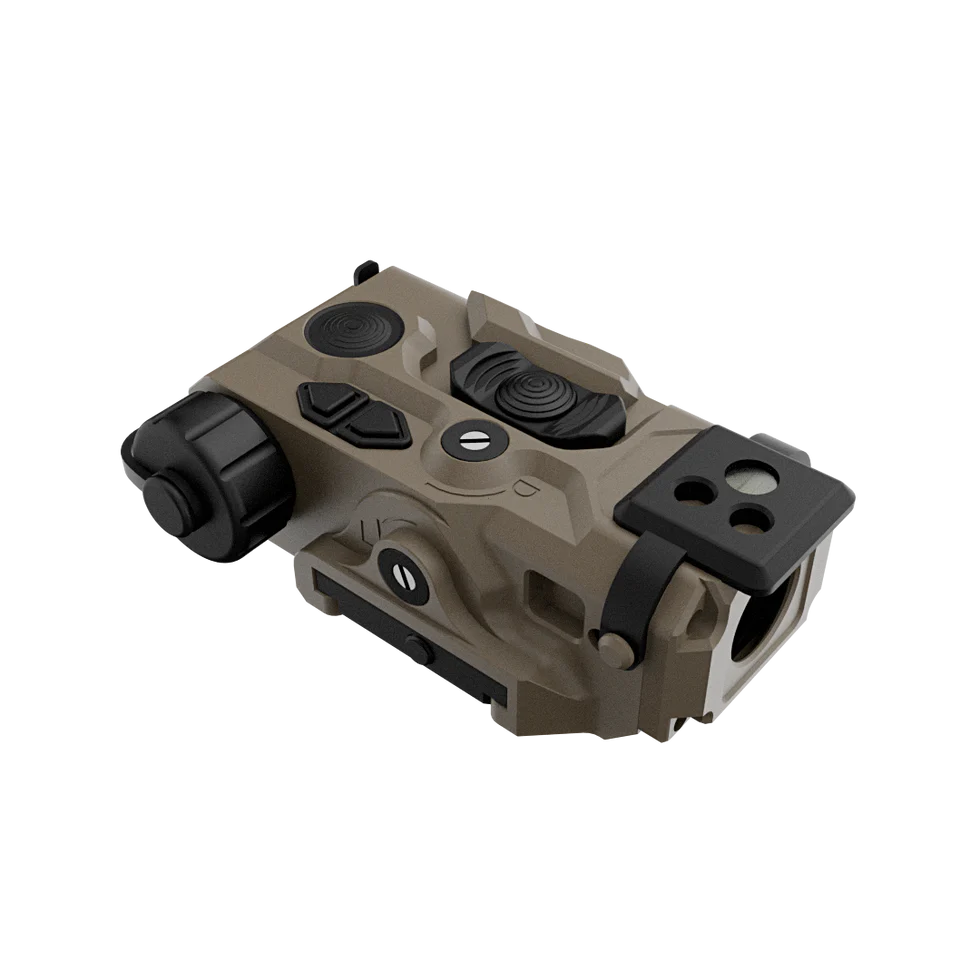

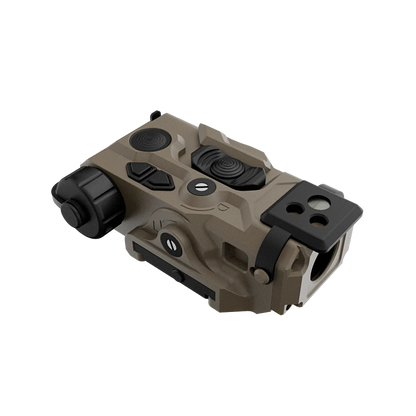

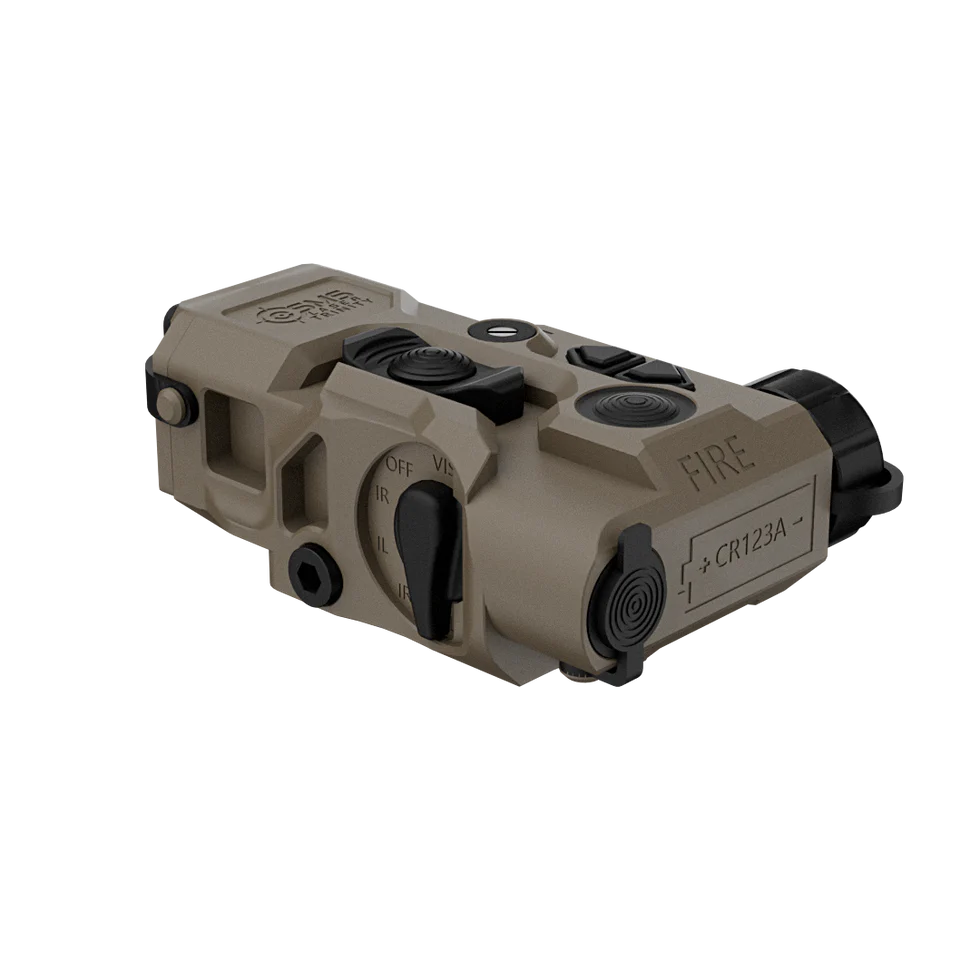

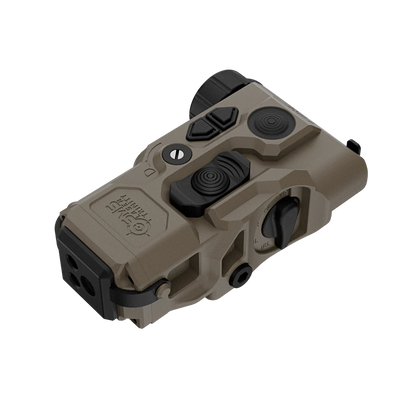

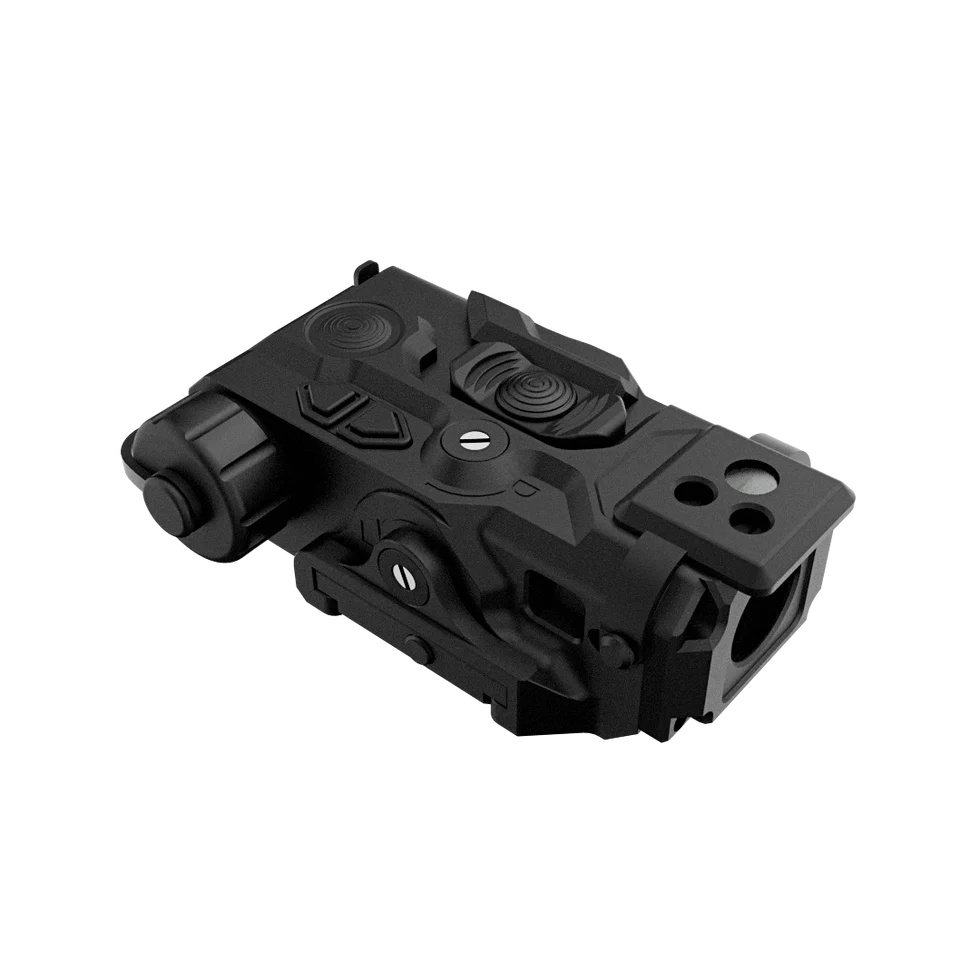

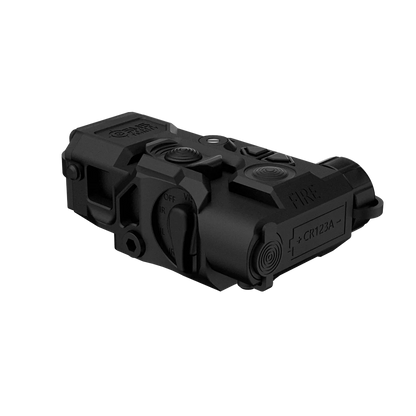

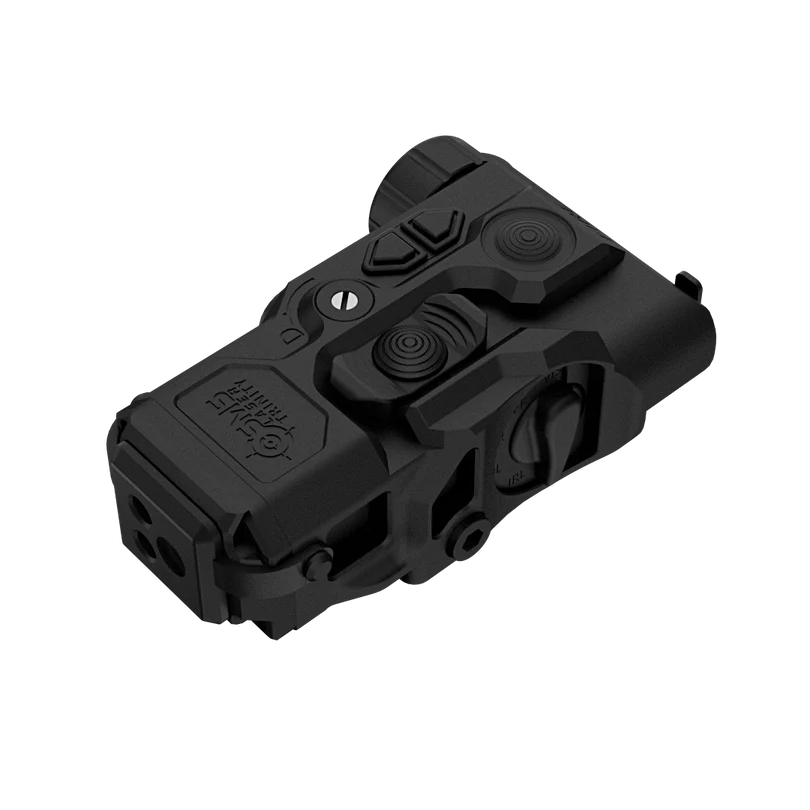

SMS Trinity
The SMS Trinity is a compact, full-featured visible and infrared laser aiming module built around a powerful VCSEL infrared illuminator, coaxial laser architecture, and a rugged 7075 aluminum housing.
The Trinity combines a 520nm visible laser, 850nm infrared aiming laser, and 850nm VCSEL infrared illuminator into a single compact system. Its coaxial design keeps the visible laser, IR laser, and IR illuminator aligned together, eliminating the need to independently calibrate the illuminator to the aiming lasers.
With an adjustable IR illuminator, selectable output, integrated flood capability, and a compact 6.7 oz housing, the Trinity delivers a highly capable night vision laser and illumination package without the size and weight of many traditional laser aiming modules.
Why Choose the SMS Trinity?
- VCSEL infrared illuminator for clean, uniform IR illumination
- Coaxial visible laser, IR laser, and IR illuminator
- Adjustable IR illuminator divergence from approximately 25 to 165 mrad
- 520nm visible green laser
- 850nm infrared aiming laser
- 850nm VCSEL infrared illuminator
- Selectable output settings
- Integrated flood lens for wider-area illumination
- 7075 aluminum housing
- 6.7 oz overall weight

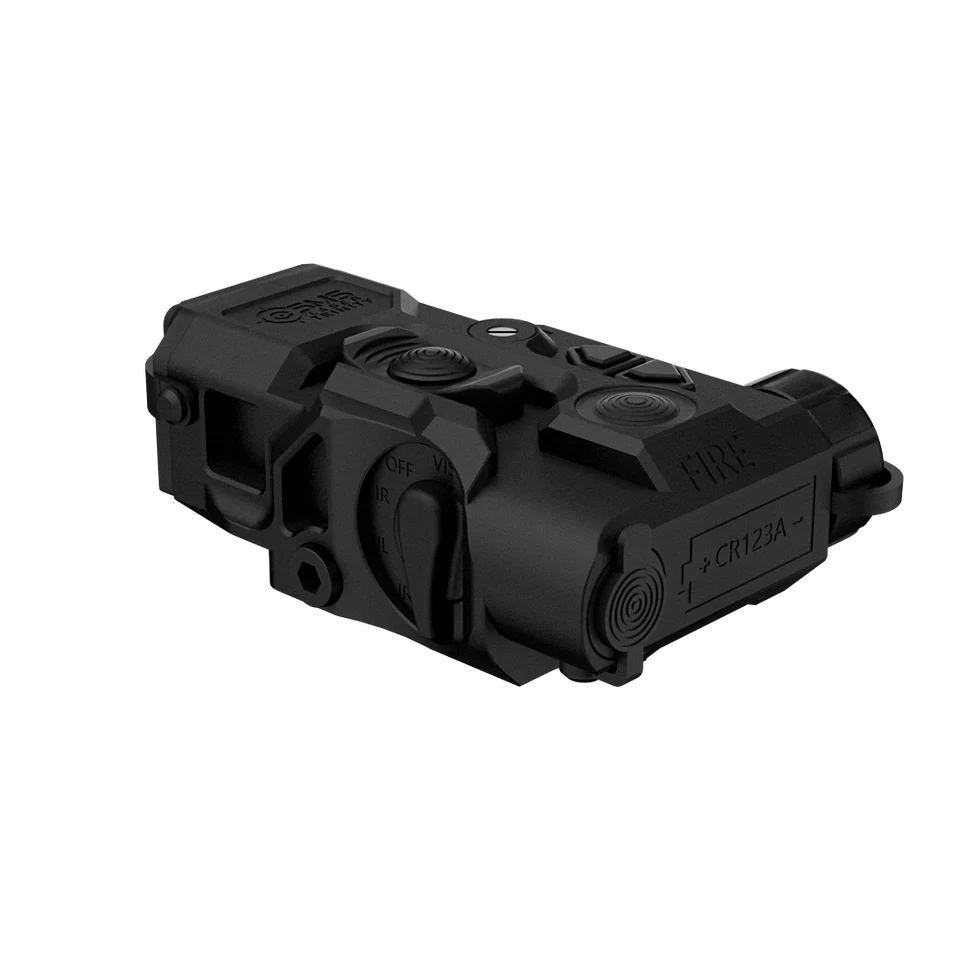

- CR123 or 16340 battery compatibility
- IPX8 waterproof rating
VCSEL Infrared Illuminator
At the center of the Trinity is its 100mW 850nm VCSEL infrared illuminator.
VCSEL technology provides a cleaner and more uniform illumination pattern than traditional edge-emitting laser (EEL) illuminators, giving the user a more usable field of infrared illumination when operating under night vision.
The illuminator also provides variable beam divergence from approximately 25 mrad to 165 mrad, allowing the beam to be adjusted from a tighter illumination pattern to a substantially wider field depending on the environment and application.

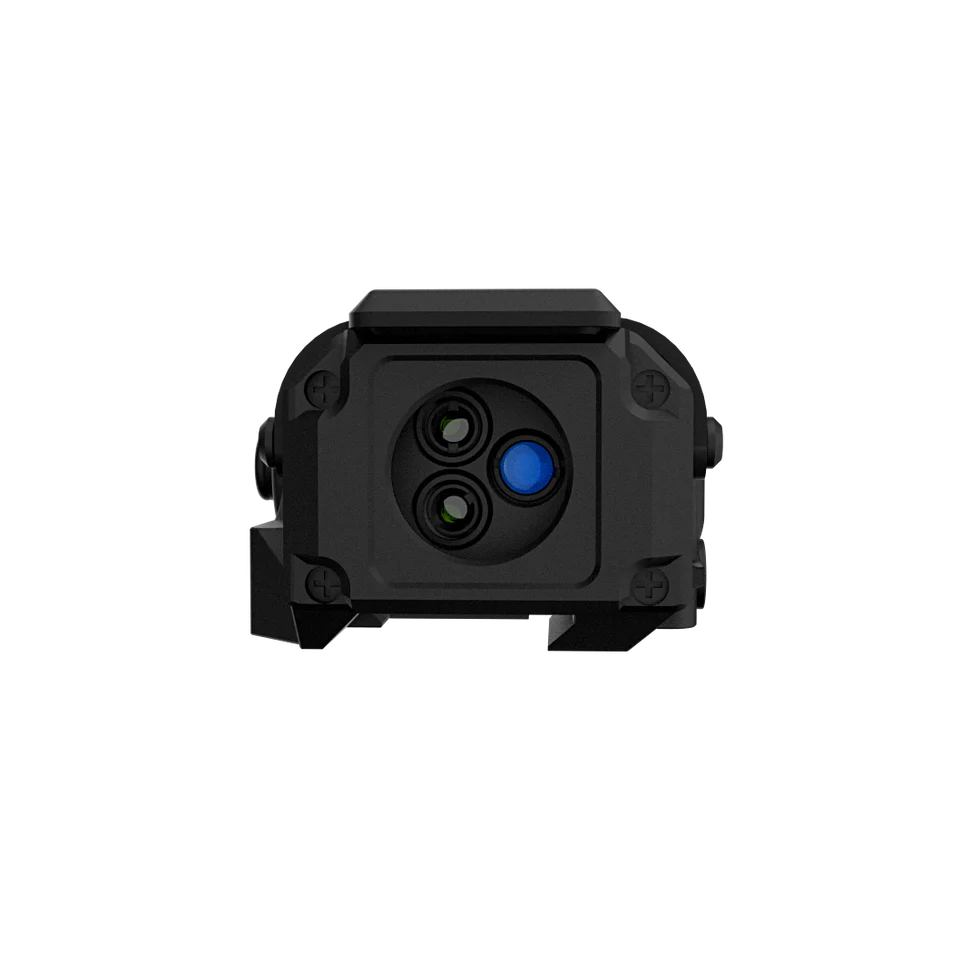

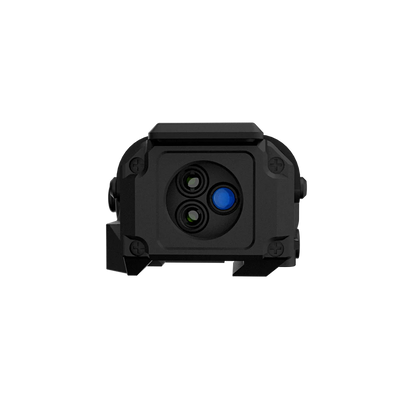

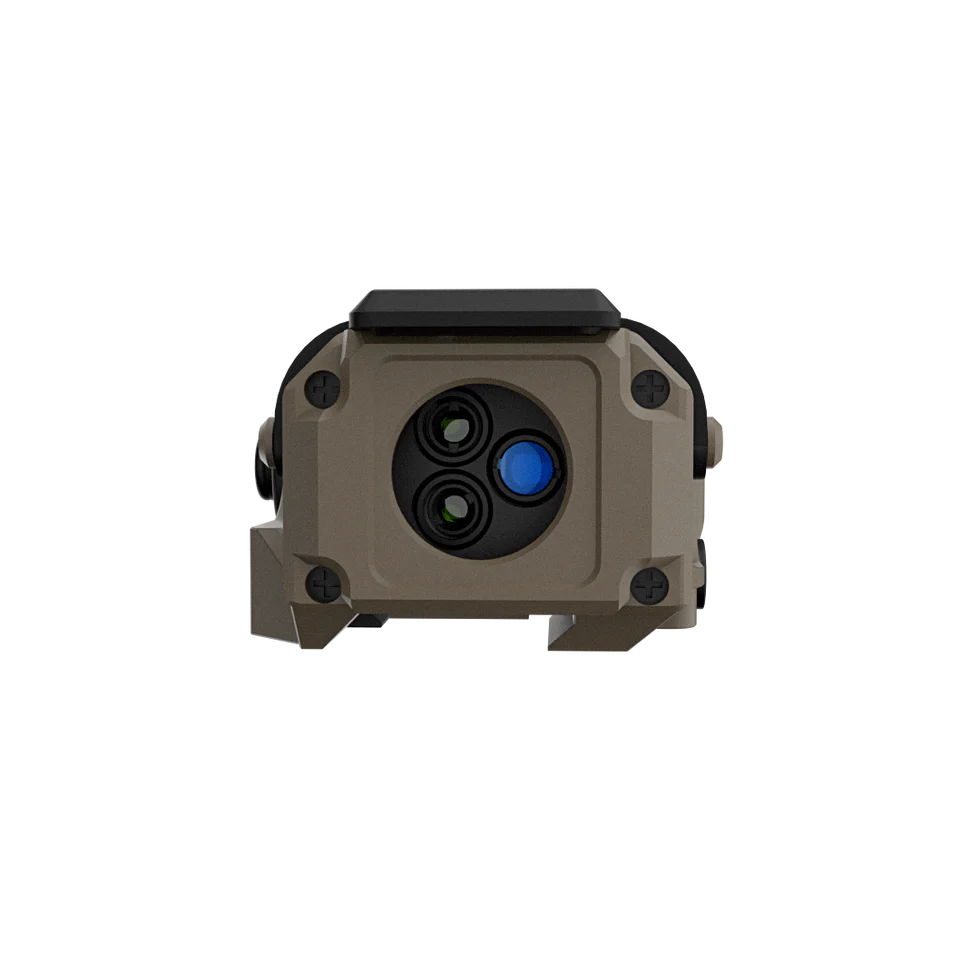

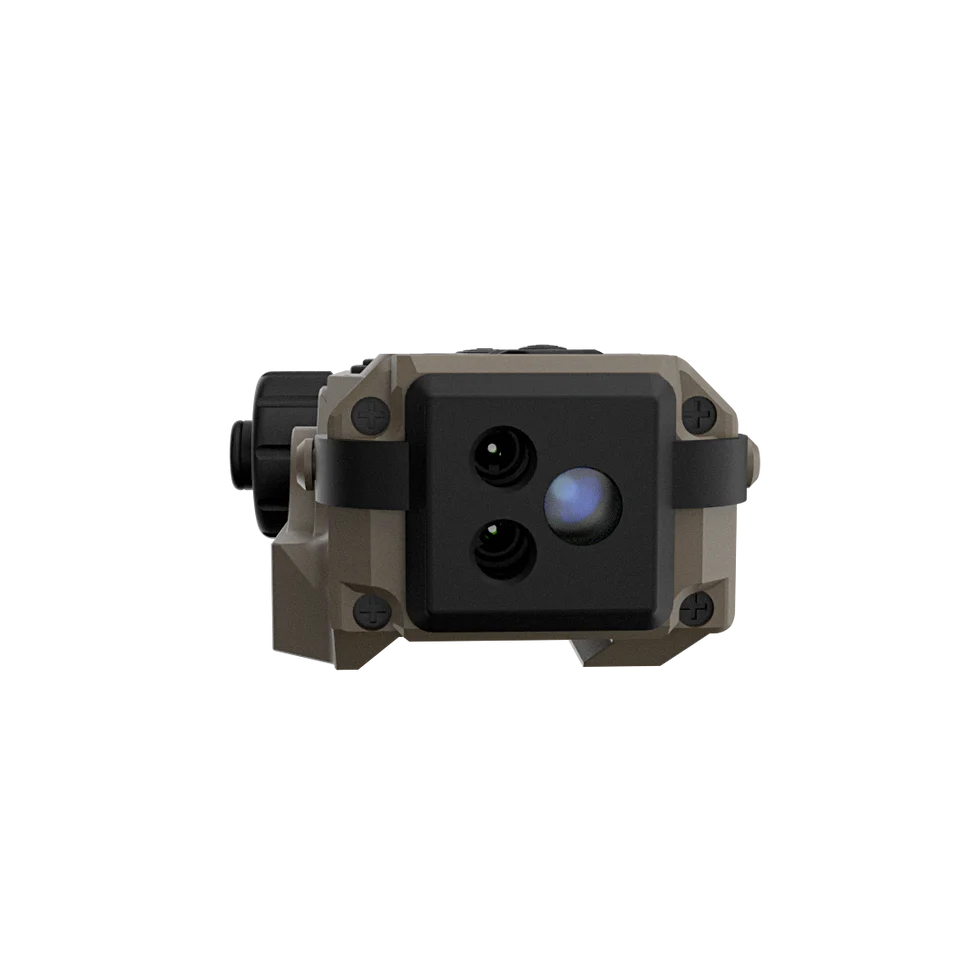

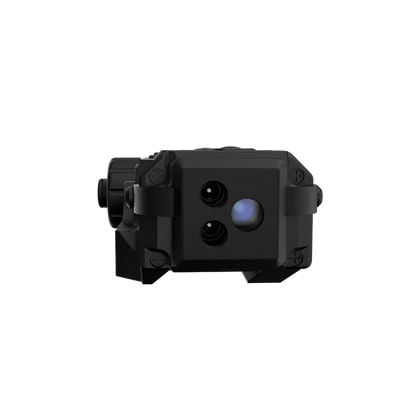

Coaxial Laser & Illuminator Architecture
The Trinity's visible laser, infrared aiming laser, and infrared illuminator are coaxial.
This architecture keeps the aiming and illumination systems mechanically aligned rather than requiring the IR illuminator to be independently calibrated from the aiming lasers.
The result is a simplified setup with the aiming laser and illuminator working together as an integrated optical system.
Visible & Infrared Aiming Lasers
The Trinity incorporates both a 520nm visible green laser and an 850nm infrared aiming laser.
The visible laser provides a daytime-visible aiming and zeroing reference, while the infrared laser provides the aiming point when operating under night vision.
The system uses 0.8 MOA adjustments per click for windage and elevation.
Adjustable IR Illumination
The Trinity gives the user control over the infrared illumination pattern rather than locking the system into a single beam width.
- Narrow Beam: Concentrates IR illumination into a tighter area
- Wide Beam: Expands illumination across a larger field of view

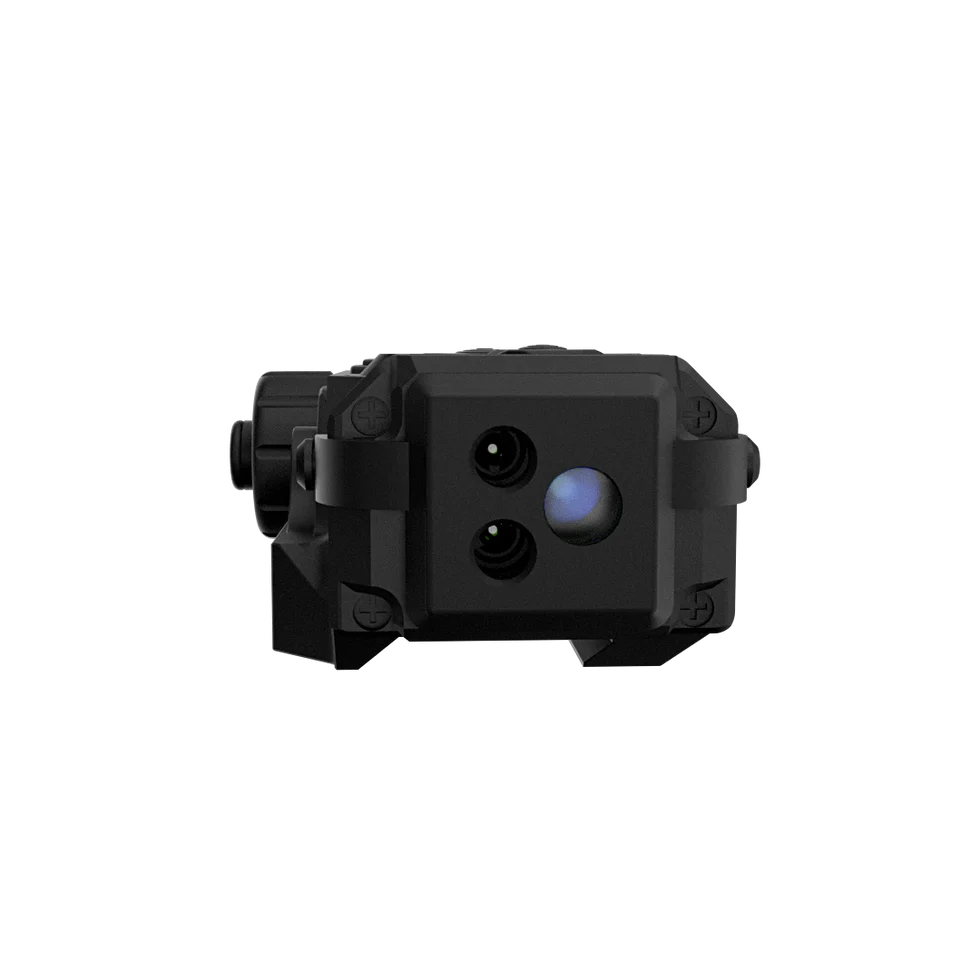

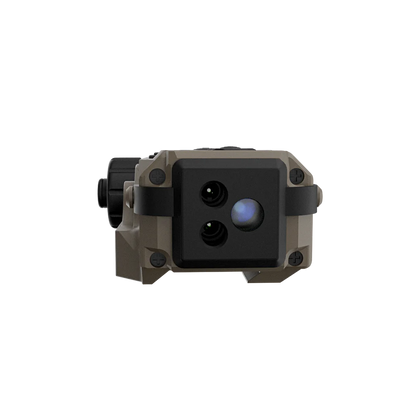

- Flood Lens: Provides additional wide-area illumination when required
The adjustable illumination system allows the Trinity to be configured around the environment instead of forcing the user to work around a fixed illuminator.
Selectable Output
The Trinity provides adjustable output settings for different operating conditions. This allows the user to balance aiming-laser and illuminator output to reduce excessive bloom or halo under night vision while still providing the required amount of infrared illumination.
Built for Hard Use
The Trinity is built around a 7075 aluminum housing and weighs approximately 6.7 oz.
The unit carries an IPX8 waterproof rating and is rated for 1200G vibration.

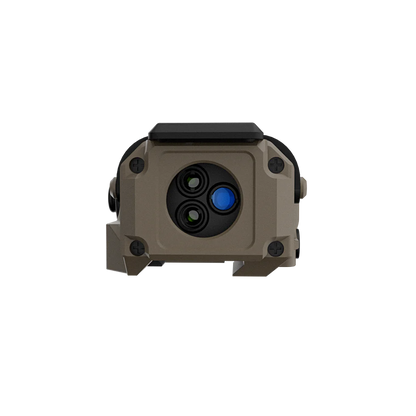

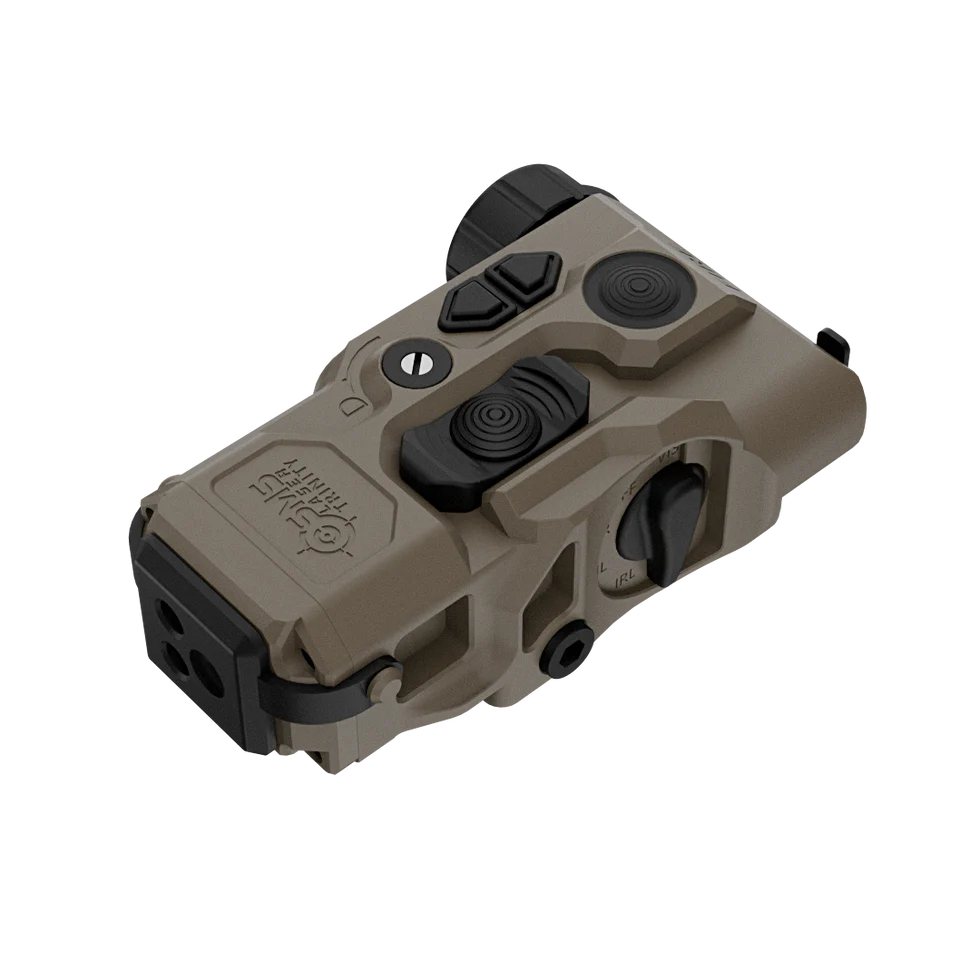

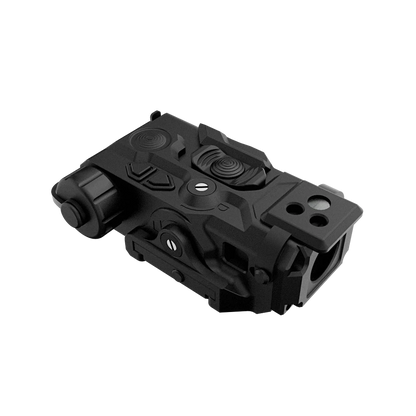

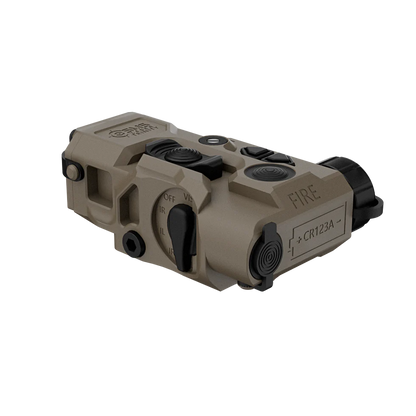

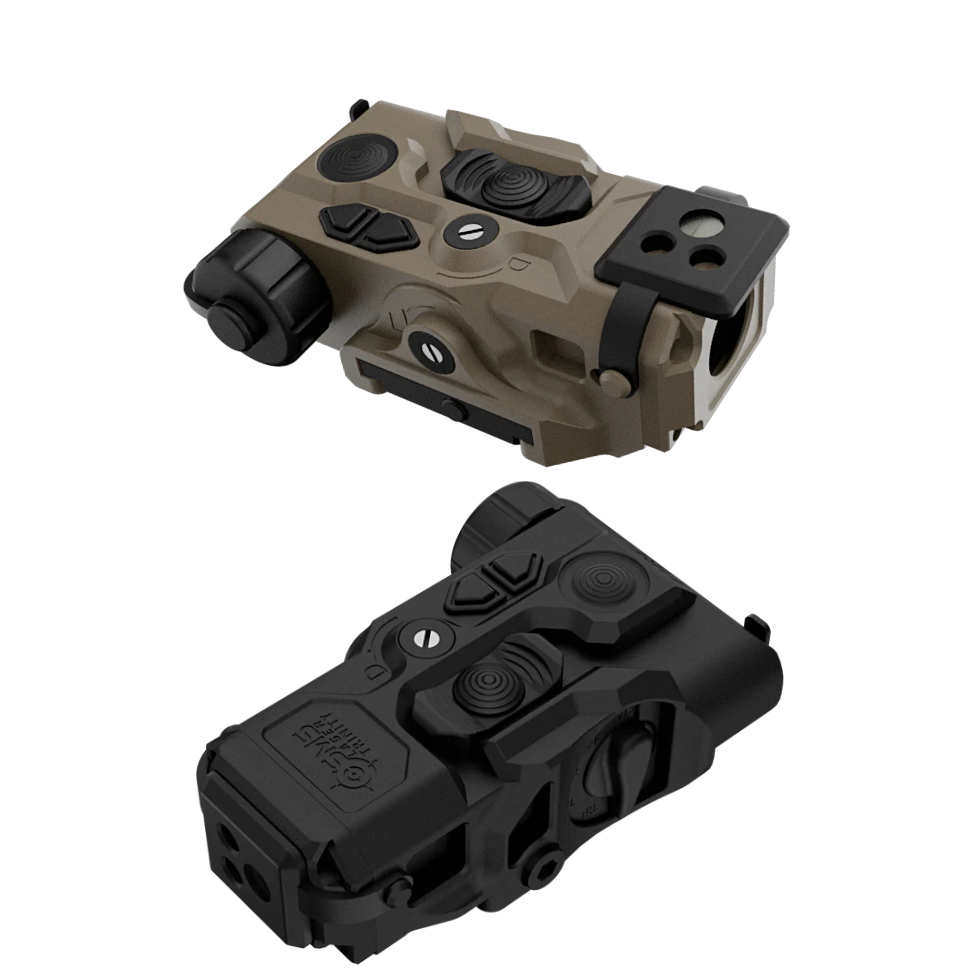

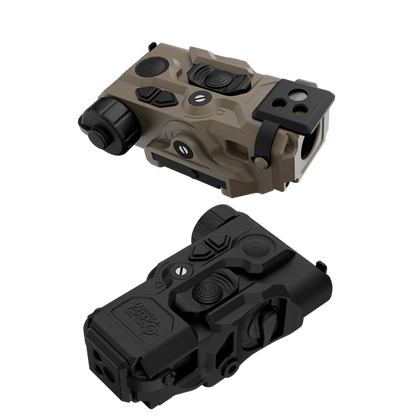

Black models feature an anodized finish, while FDE models use a Cerakote finish.
Optical Specifications
- Visible Laser Power: <5mW
- Visible Laser Wavelength: 520nm
- IR Laser Power: 0.7mW
- IR Laser Wavelength: 850nm
- IR Illuminator Power: 100mW VCSEL
- IR Illuminator Wavelength: 850nm
- IR Illuminator Divergence: Approximately 25–165 mrad
- Adjustment: 0.8 MOA per click
Physical Specifications
- Dimensions: 3.54 × 2.36 × 1.18 in
- Weight: 6.7 oz
- Battery: CR123 or 16340
- Housing: 7075 Aluminum
- Black Finish: Anodized
- FDE Finish: Cerakote
- Water Resistance: IPX8
- Vibration Rating: 1200G
QDEF Inspection & Support
Every SMS Trinity sold by Quad Defense is inspected before shipment. Our team can also assist with night vision, helmet, laser, and supporting equipment selection to help build a complete system around your requirements.
Shipping
Orders over $2,000 ship free via 2-Day Air.
Questions About the SMS Trinity?
Need help determining whether the Trinity is the right laser and illuminator for your night vision setup? Contact Quad Defense and we'll help you select the right equipment for your application.
What's Included
What's Included
Specifications
Specifications
ITAR
ITAR
QDEF COMPLIANCE // U.S. EXPORT CONTROL
Export &
ITAR Compliance
Certain products, components, technical data, and services offered by Quad Defense may be controlled under United States export-control laws and regulations.
These requirements may include the International Traffic in Arms Regulations (ITAR), the Export Administration Regulations (EAR), or other applicable U.S. laws and regulations.
Customers are responsible for understanding and complying with the export-control requirements applicable to the products or information they purchase, receive, transfer, resell, or otherwise provide to others.
Do not export, re-export, transfer, release, or provide controlled products, technical data, or services to a foreign person, foreign destination, or unauthorized end user without first determining whether U.S. Government authorization is required.
This includes transfers that may occur inside the United States when controlled technical data or other controlled items are released to a foreign person.
What Is ITAR?
The International Traffic in Arms Regulations are administered by the U.S. Department of State's Directorate of Defense Trade Controls (DDTC).
ITAR governs defense articles, defense services, and related technical data identified on the United States Munitions List, as well as certain exports, temporary imports, reexports, retransfers, and other controlled transactions.
Not every product sold by Quad Defense is necessarily ITAR-controlled. Export classification depends on the specific product, component, technology, technical data, and transaction.
Night Vision & Related Equipment
Night vision products and related equipment may be subject to U.S. export-control restrictions depending on their classification, configuration, technical characteristics, origin, and intended destination or end user.
Some products may fall under ITAR jurisdiction while others may be controlled under the Export Administration Regulations or another regulatory framework.
The absence of an “ITAR” label on a product page should not be interpreted as confirmation that the product is unrestricted for international transfer.
Who May Receive Controlled Items?
Export-control rules can restrict who may receive certain products, technical data, or defense services.
ITAR distinguishes between U.S. persons and foreign persons. The applicable regulatory definitions should be used when determining whether a particular transfer or release requires authorization.
Citizenship alone should not be used as the sole test for every export-control determination.
Authorization May Be Required
Depending on the item and circumstances, U.S. Government authorization may be required before a controlled product or technical data may be:
- Exported from the United States
- Re-exported from one foreign country to another
- Retransferred to a different end user or end use
- Released or provided to a foreign person
- Sold or transferred to another party for a different destination or purpose
- Used to furnish a controlled defense service
Applicable licenses, agreements, exemptions, exceptions, or other authorizations must be determined before the transaction occurs.
Resale Does Not Remove Export Restrictions
Purchasing a product from Quad Defense and later reselling or transferring it does not eliminate applicable U.S. export-control restrictions.
Customers who resell controlled products are responsible for ensuring that subsequent transfers comply with applicable export-control laws, end-user restrictions, destination restrictions, licensing requirements, and other regulatory obligations.
Where appropriate, downstream purchasers should also be informed that the product may be subject to U.S. export-control restrictions.
Technical Information May Also Be Controlled
Export controls may apply not only to physical hardware but also to certain technical information associated with controlled products.
Depending on its content and classification, controlled technical data may include certain detailed information relating to the design, development, production, manufacture, assembly, operation, repair, testing, maintenance, or modification of controlled defense articles.
Quad Defense may therefore limit the distribution of certain technical information or documentation when necessary to comply with applicable export-control obligations.
Purchaser Acknowledgment
By purchasing or receiving export-controlled products, technical data, or services from Quad Defense, the purchaser acknowledges responsibility for complying with applicable U.S. export-control laws and regulations.
I understand that certain products or technical information provided by Quad Defense may be subject to U.S. export-control laws and regulations.
I will not export, re-export, transfer, release, or otherwise provide controlled products or technical data contrary to applicable U.S. law.
I understand that U.S. Government authorization may be required before certain items or technical data may be transferred to a foreign destination, foreign person, different end user, or different end use.
If I resell or transfer controlled products, I am responsible for determining and complying with applicable restrictions governing that subsequent transaction.
I understand that violations of U.S. export-control laws may result in significant civil, criminal, and administrative penalties.
Quad Defense May Refuse a Transaction
Quad Defense reserves the right to refuse, cancel, delay, or request additional information regarding any transaction when necessary to evaluate export-control compliance, end use, end user, destination, or other legal requirements.
This may include requesting information sufficient to verify purchaser identity, intended end use, ultimate destination, or other compliance information relevant to the transaction.
Classification & Legal Guidance
Information provided on this page is intended as a general compliance notice and does not constitute legal advice, an export classification, or authorization to export any specific product.
Customers requiring a formal classification or authorization should consult the applicable U.S. Government agency or qualified export-control counsel before proceeding with a transaction.
QDEF COMPLIANCE // QUESTIONS
Questions Before You Order?
If you have questions about whether Quad Defense can fulfill an order to a particular customer, destination, or organization, contact us before placing the order.
Email: sales@quaddefense.com
QDEF COMPLIANCE // U.S. EXPORT CONTROL
Export &
ITAR Compliance
Certain products, components, technical data, and services offered by Quad Defense may be controlled under United States export-control laws and regulations.
These requirements may include the International Traffic in Arms Regulations (ITAR), the Export Administration Regulations (EAR), or other applicable U.S. laws and regulations.
Customers are responsible for understanding and complying with the export-control requirements applicable to the products or information they purchase, receive, transfer, resell, or otherwise provide to others.
Do not export, re-export, transfer, release, or provide controlled products, technical data, or services to a foreign person, foreign destination, or unauthorized end user without first determining whether U.S. Government authorization is required.
This includes transfers that may occur inside the United States when controlled technical data or other controlled items are released to a foreign person.
What Is ITAR?
The International Traffic in Arms Regulations are administered by the U.S. Department of State's Directorate of Defense Trade Controls (DDTC).
ITAR governs defense articles, defense services, and related technical data identified on the United States Munitions List, as well as certain exports, temporary imports, reexports, retransfers, and other controlled transactions.
Not every product sold by Quad Defense is necessarily ITAR-controlled. Export classification depends on the specific product, component, technology, technical data, and transaction.
Night Vision & Related Equipment
Night vision products and related equipment may be subject to U.S. export-control restrictions depending on their classification, configuration, technical characteristics, origin, and intended destination or end user.
Some products may fall under ITAR jurisdiction while others may be controlled under the Export Administration Regulations or another regulatory framework.
The absence of an “ITAR” label on a product page should not be interpreted as confirmation that the product is unrestricted for international transfer.
Who May Receive Controlled Items?
Export-control rules can restrict who may receive certain products, technical data, or defense services.
ITAR distinguishes between U.S. persons and foreign persons. The applicable regulatory definitions should be used when determining whether a particular transfer or release requires authorization.
Citizenship alone should not be used as the sole test for every export-control determination.
Authorization May Be Required
Depending on the item and circumstances, U.S. Government authorization may be required before a controlled product or technical data may be:
- Exported from the United States
- Re-exported from one foreign country to another
- Retransferred to a different end user or end use
- Released or provided to a foreign person
- Sold or transferred to another party for a different destination or purpose
- Used to furnish a controlled defense service
Applicable licenses, agreements, exemptions, exceptions, or other authorizations must be determined before the transaction occurs.
Resale Does Not Remove Export Restrictions
Purchasing a product from Quad Defense and later reselling or transferring it does not eliminate applicable U.S. export-control restrictions.
Customers who resell controlled products are responsible for ensuring that subsequent transfers comply with applicable export-control laws, end-user restrictions, destination restrictions, licensing requirements, and other regulatory obligations.
Where appropriate, downstream purchasers should also be informed that the product may be subject to U.S. export-control restrictions.
Technical Information May Also Be Controlled
Export controls may apply not only to physical hardware but also to certain technical information associated with controlled products.
Depending on its content and classification, controlled technical data may include certain detailed information relating to the design, development, production, manufacture, assembly, operation, repair, testing, maintenance, or modification of controlled defense articles.
Quad Defense may therefore limit the distribution of certain technical information or documentation when necessary to comply with applicable export-control obligations.
Purchaser Acknowledgment
By purchasing or receiving export-controlled products, technical data, or services from Quad Defense, the purchaser acknowledges responsibility for complying with applicable U.S. export-control laws and regulations.
I understand that certain products or technical information provided by Quad Defense may be subject to U.S. export-control laws and regulations.
I will not export, re-export, transfer, release, or otherwise provide controlled products or technical data contrary to applicable U.S. law.
I understand that U.S. Government authorization may be required before certain items or technical data may be transferred to a foreign destination, foreign person, different end user, or different end use.
If I resell or transfer controlled products, I am responsible for determining and complying with applicable restrictions governing that subsequent transaction.
I understand that violations of U.S. export-control laws may result in significant civil, criminal, and administrative penalties.
Quad Defense May Refuse a Transaction
Quad Defense reserves the right to refuse, cancel, delay, or request additional information regarding any transaction when necessary to evaluate export-control compliance, end use, end user, destination, or other legal requirements.
This may include requesting information sufficient to verify purchaser identity, intended end use, ultimate destination, or other compliance information relevant to the transaction.
Classification & Legal Guidance
Information provided on this page is intended as a general compliance notice and does not constitute legal advice, an export classification, or authorization to export any specific product.
Customers requiring a formal classification or authorization should consult the applicable U.S. Government agency or qualified export-control counsel before proceeding with a transaction.
QDEF COMPLIANCE // QUESTIONS
Questions Before You Order?
If you have questions about whether Quad Defense can fulfill an order to a particular customer, destination, or organization, contact us before placing the order.
Email: sales@quaddefense.com
Share
Arrived super quick! This sms trinity unit is far nicer than i anticipated. Its built well and the fde amd black look awesome. It did come with its own crane plug but i decided to use a unity modbutton lite crane plug which i can confirm works. Havent tested it yet to see if it shifts from zero (which is really the only complaint i have read that people have had with these which arent alot of people at that) but i will have to see for myself. The IR works and the sliding IR focus toggle is nice touch. Will come back and re rate after putting some rounds through if it holds zero id say its definitely worth it for being less than 500$ if it holds i will definitely be getting more as well as going through quad defense to do it 🤙🏾
Delivered fast and as described
Exceeded my expectations for the price point.
Awesome piece , you can tell that the quality is great the minute you pick it up. Easy to use and the power is incredible!!! Ordering two more this week!
Awesome lasers for the money! They hold zero well and the throw on ths IR light is great.
- 5 stars: 7 (88%)
- 4 stars: 1 (13%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)

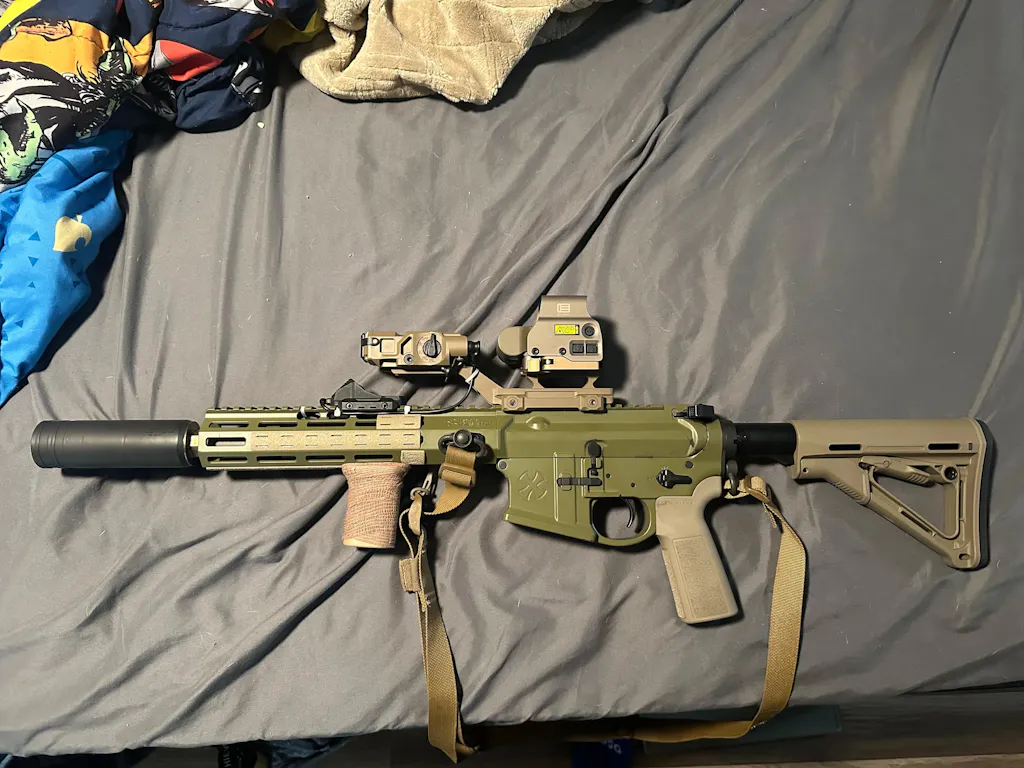

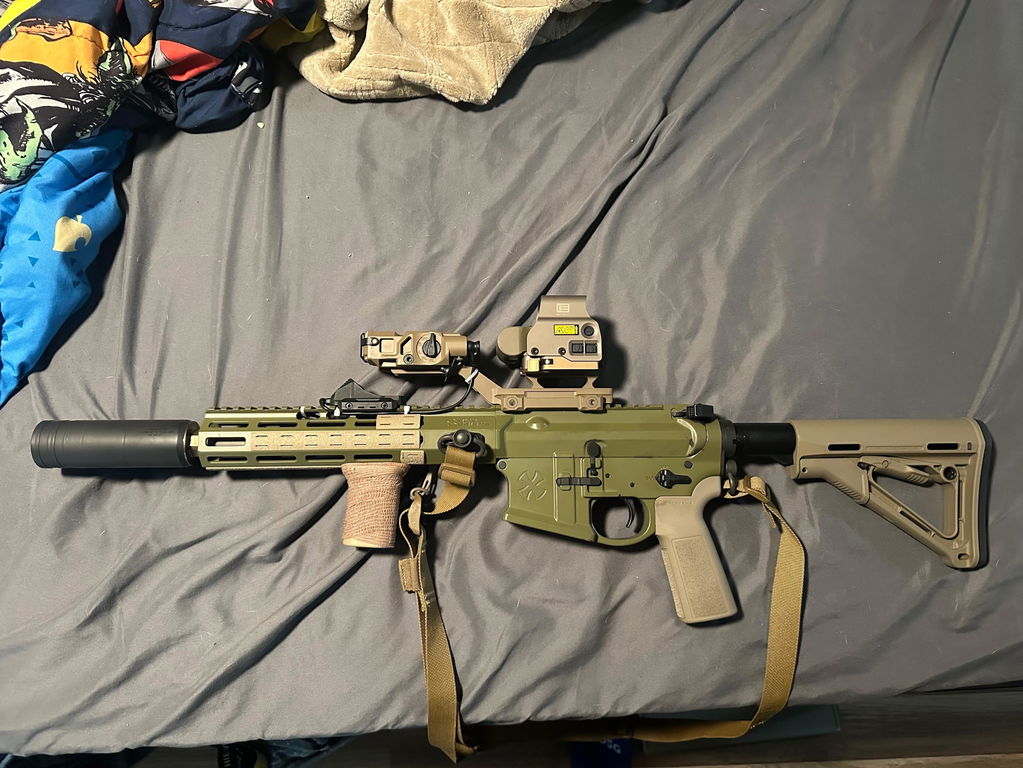

Got this in fde, shipped super super quick! Works amazing. Holds zero and punches way above its cost!
