SIG SAUER | Echo CV25 Thermal Clip-On OPEN BOX
SIG SAUER | Echo CV25 Thermal Clip-On OPEN BOX
Couldn't load pickup availability
QDEF // THERMAL TECHNICAL OVERVIEW
SIG SAUER
ECHO CV25
640 × 512 Thermal Imaging
NEW // OPEN BOX
This unit is new with opened packaging.

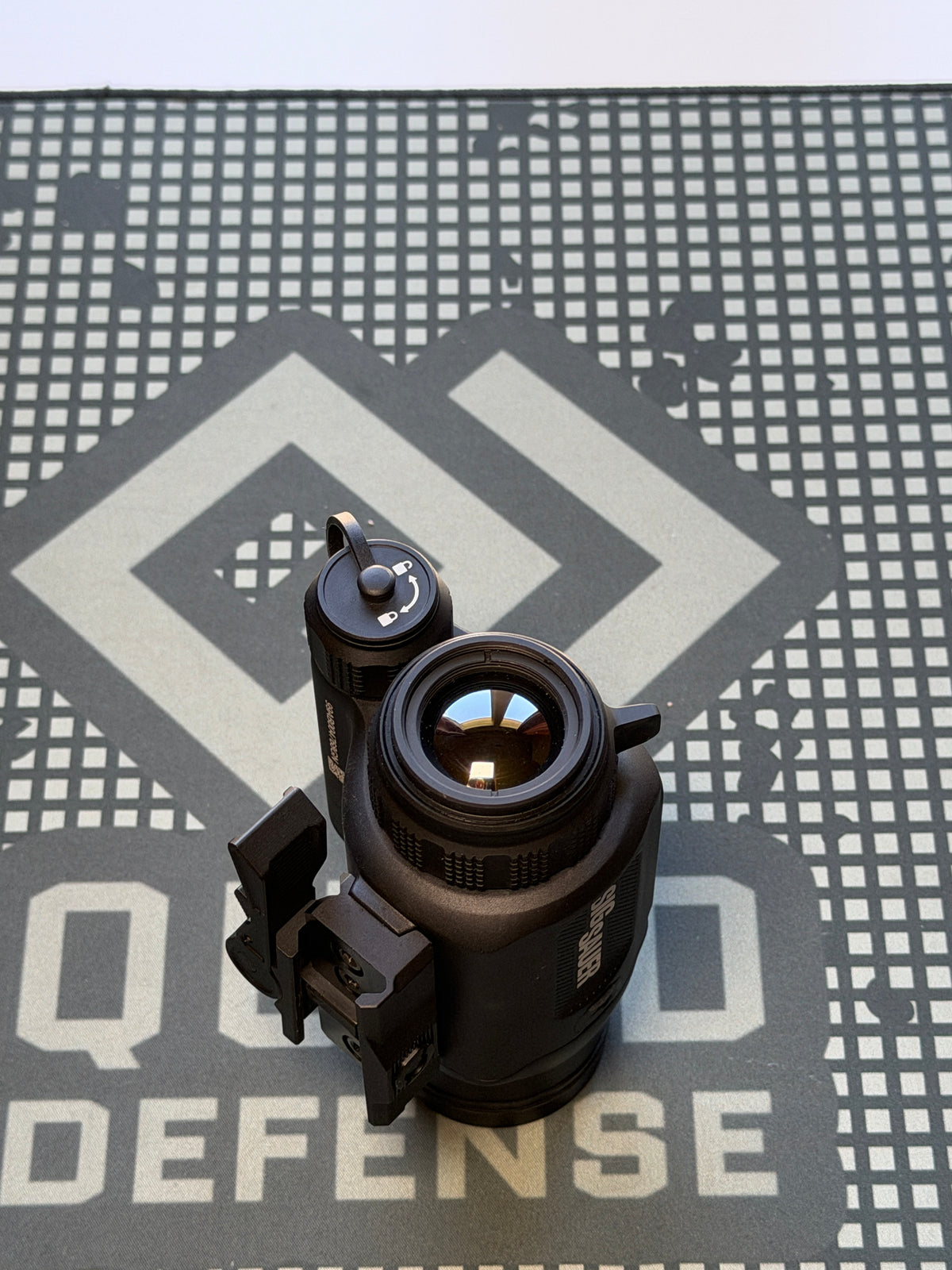

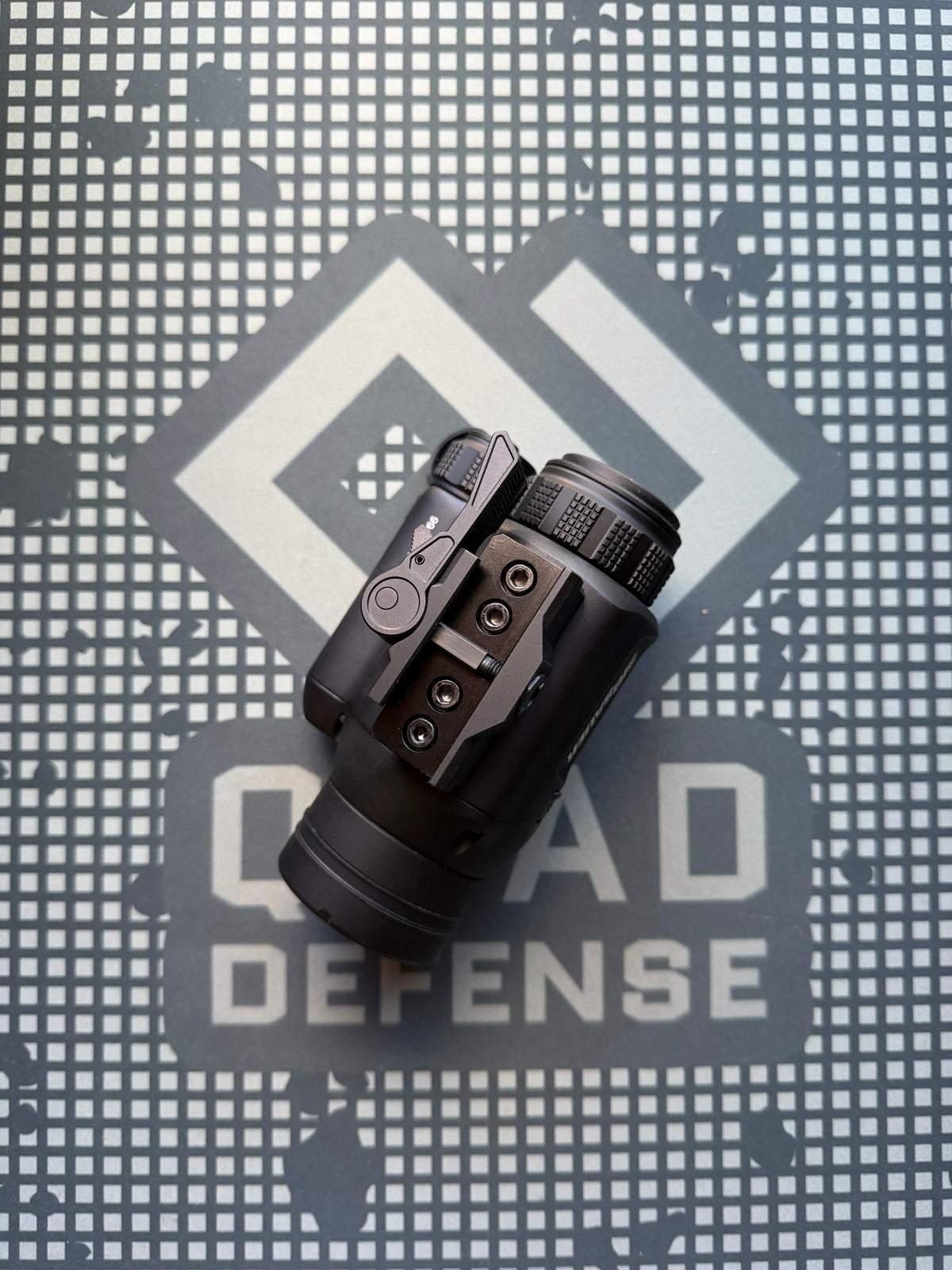

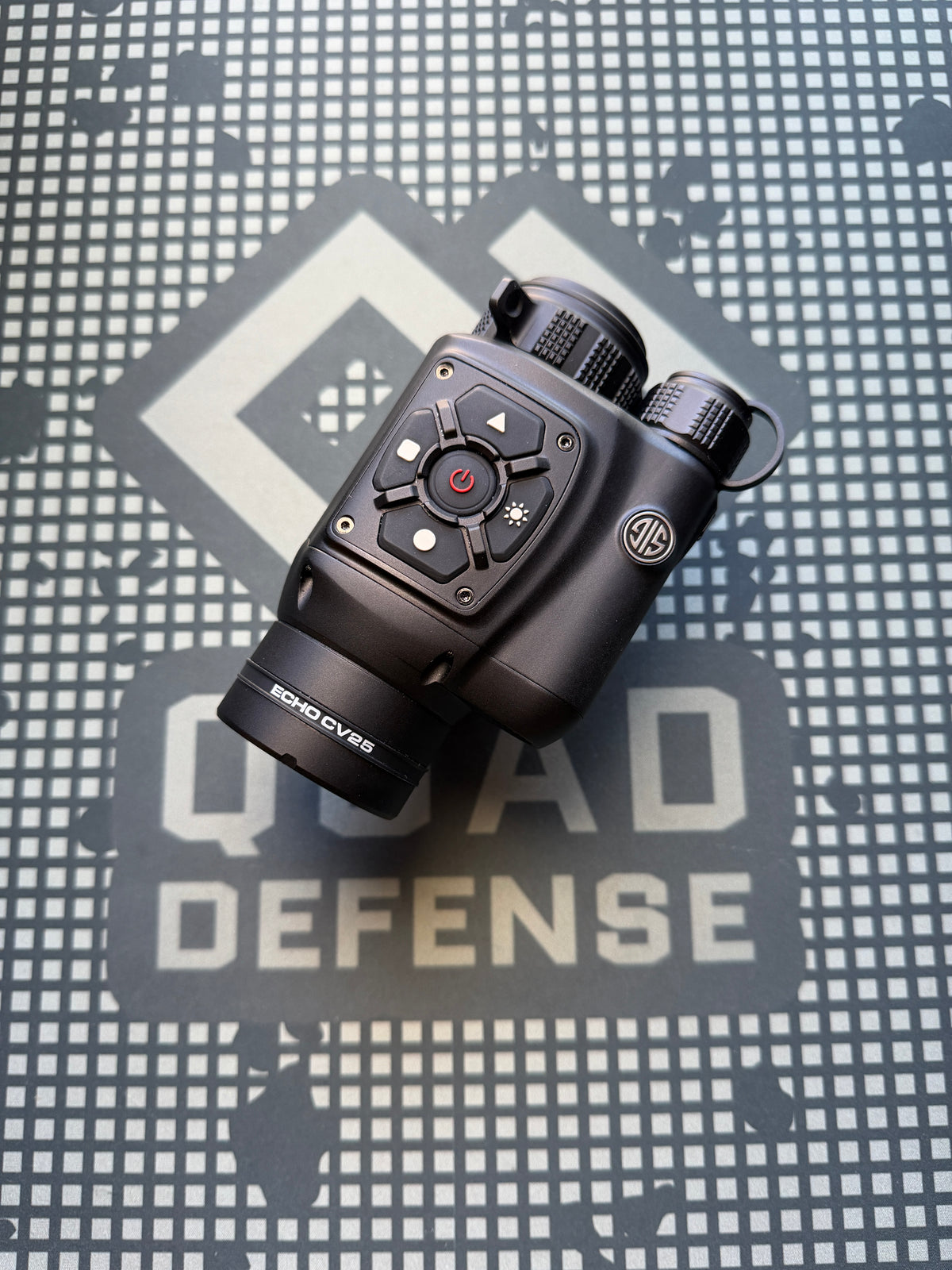

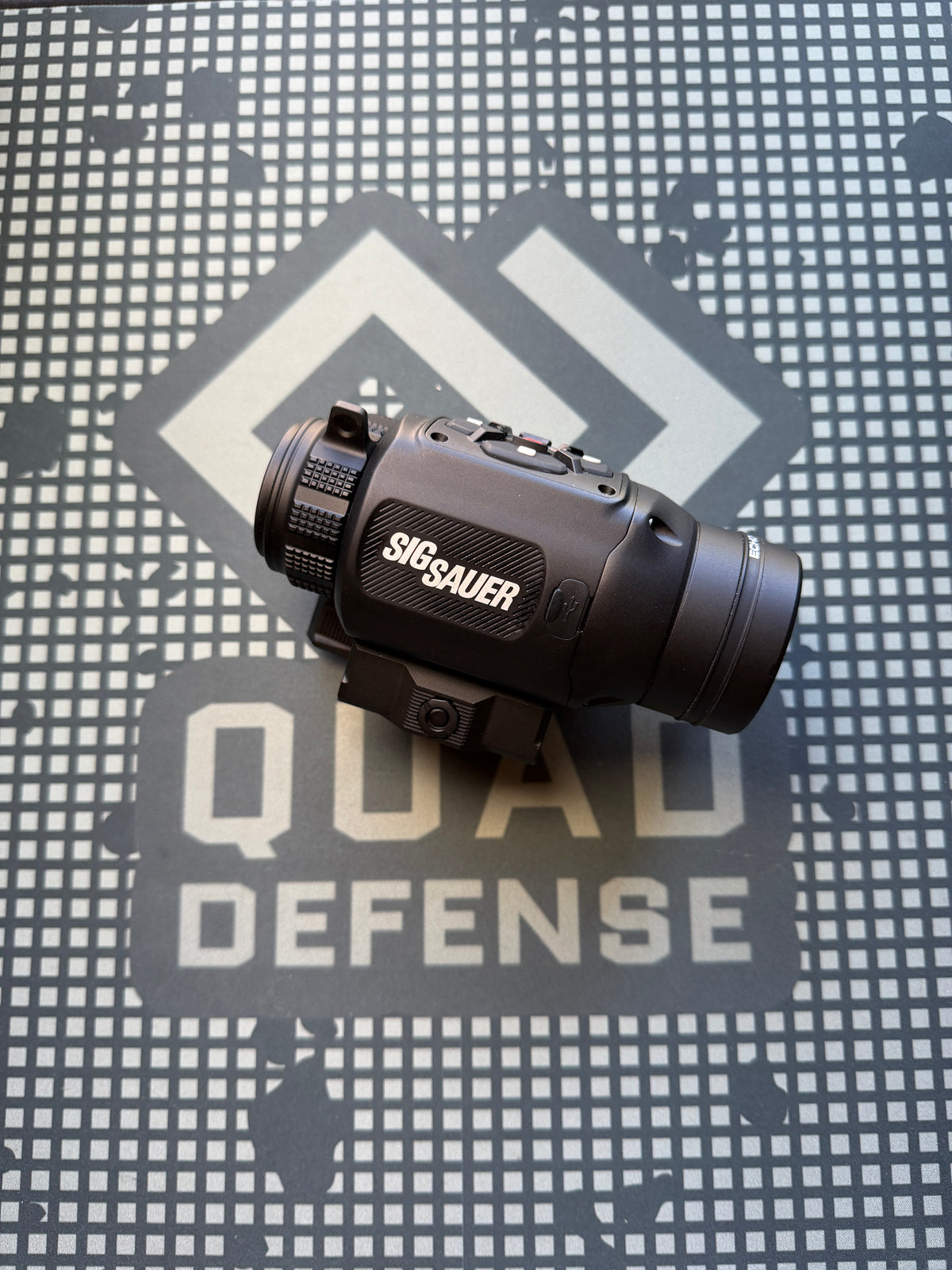

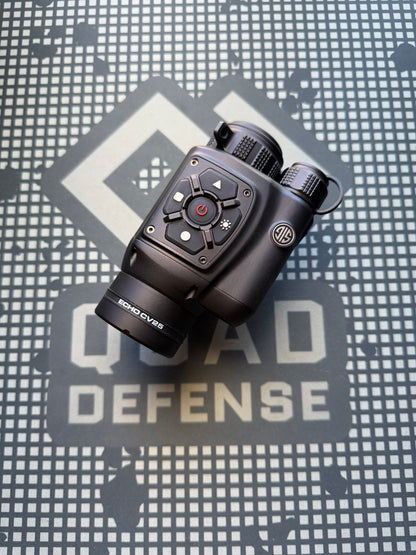

The SIG SAUER ECHO CV25 is a thermal clip-on imaging device featuring a 640 × 512 LWIR sensor, a 25 mm objective lens, and a 1024 × 768 AMOLED display.
The device supports still photography, video recording with audio, and configuration through the SIG SAUER BDX app. Power comes from a removable, rechargeable 18650 lithium-ion battery.
01 // SENSOR & DISPLAY
Imaging specifications
Thermal sensor
The LWIR detector has a 640 × 512 resolution and 12 µm pixel pitch.
Refresh & sensitivity
SIG lists a 50 Hz refresh rate and 20 mK thermal sensitivity.
AMOLED display
The internal AMOLED microdisplay has a 1024 × 768 resolution.
Lens & field of view
A 25 mm objective lens provides a manufacturer-listed 17° field of view.
02 // RECORDING, CONNECTIVITY & POWER
Device functions
Onboard recording
Records still photos and video with audio to 32 GB of internal storage.
BDX configuration
Supports device configuration through the SIG SAUER BDX app.
Removable battery
Powered by one rechargeable 18650 lithium-ion battery.
Ingress protection
Manufacturer-listed IP67 ingress protection.
BATTERY RUNTIME
SIG lists 9+ hours of runtime. Actual runtime varies with settings, temperature, battery condition, and use.
03 // TECHNICAL SPECIFICATIONS
The details
126 × 76 × 78 mm
Technical specifications: SIG SAUER ECHO CV25 manufacturer reference .
04 // UNIT CONDITION
New // Open Box
This specific unit is new with opened packaging. Model specifications above describe the ECHO CV25 platform. Accessories accompanying this unit should be documented separately from the manufacturer's standard package contents.
