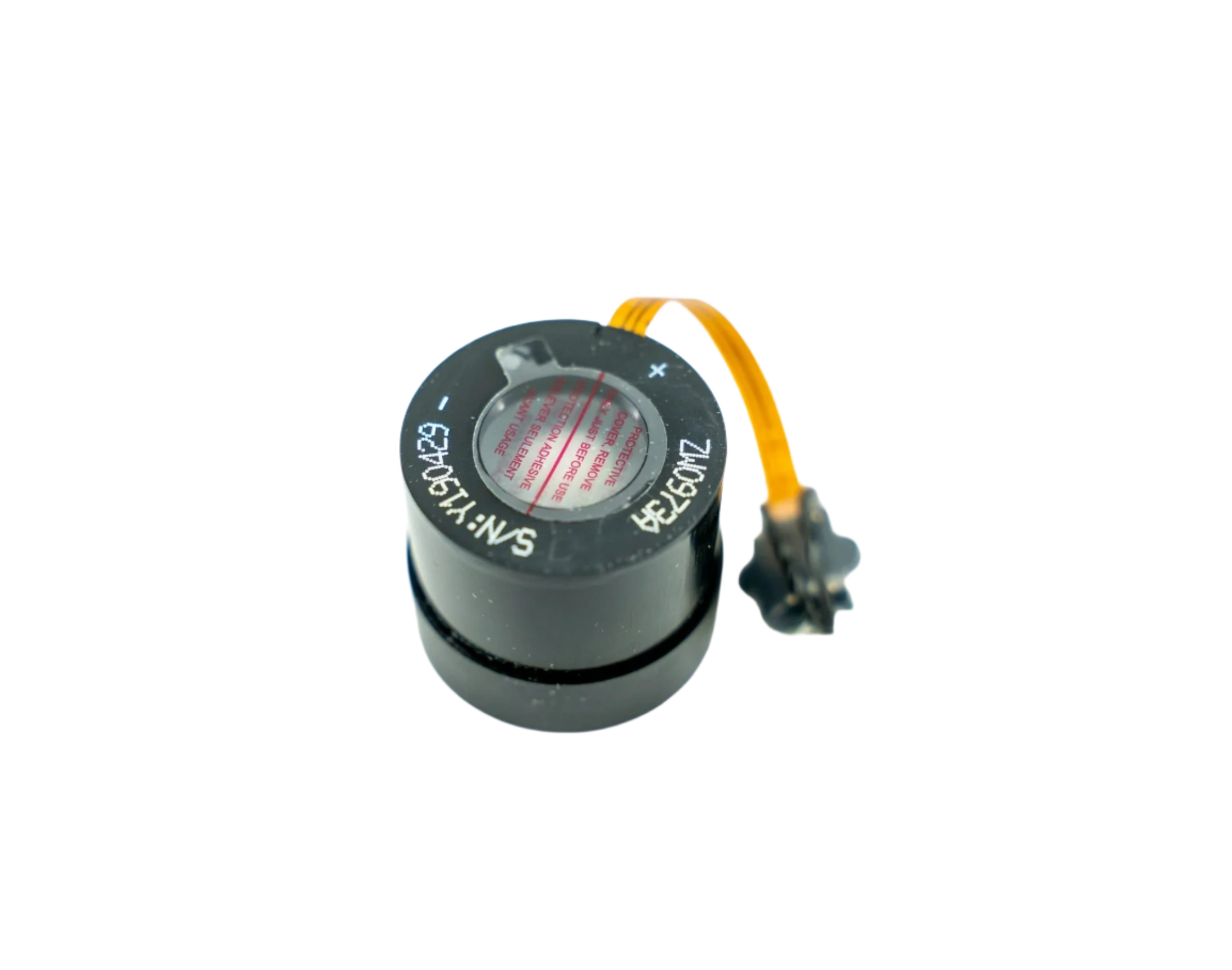

Photonis ECHO Gen 2+ Image Intensifier Tubes
The Photonis ECHO Gen 2+ image intensifier tube is a high-performance commercial night vision intensifier designed to deliver excellent image quality across a wide range of lighting conditions.
Known for fast autogating, small halo, excellent contrast, and strong high-light performance, Photonis ECHO tubes are a popular option for users looking for a capable, versatile image intensifier at a competitive price point.
These are brand-new Photonis ECHO image intensifier tubes and include the applicable factory specification sheet and warranty.
QDEF Hand-Selected Photonis Tubes
Every image intensifier tube sold by Quad Defense is hand-selected for our customers. We don't simply pull a tube from inventory based on FOM and ship it.
Our team reviews the available tube specifications and cosmetics and will work directly with you to select a tube based on your intended use and personal preferences.
If you're looking for specific characteristics such as SNR, EBI, halo, gain, resolution, FOM, or tube cosmetics, contact us and let us know what matters most to you. We'll review current inventory and help identify the best available tube for your requirements.
For binocular night vision systems, QDEF also selects and pairs tubes with attention to their specifications and overall image characteristics to provide a consistent viewing experience between both optical channels.
Photonis ECHO Performance
Photonis ECHO tubes are commercial high-performance image intensifiers designed to provide excellent image quality across changing lighting environments, from dusk and mixed urban lighting to darker nighttime conditions.
One of the defining characteristics of Photonis technology is its ability to perform across a broad range of illumination levels. Fast autogating helps the tube respond rapidly to changing light conditions, while the platform is known for strong contrast, small halo, and excellent resolution when operating around artificial light sources.
This makes Photonis ECHO a compelling option for users operating in environments where lighting conditions can change quickly or where artificial light sources are frequently present.
Key Photonis ECHO Features
- Gen 2+ high-performance image intensifier technology
- Ultra-fast autogating
- Excellent high-light resolution
- Small halo characteristics
- High contrast and image clarity
- High-resolution image performance
- Available in white or green phosphor
- Factory specification sheet included
Available Performance
Photonis ECHO tube specifications vary with current inventory. ECHO intensifiers are commonly available around the 2000 FOM performance level, with tubes available up to approximately 2200 FOM depending on inventory and configuration.
FOM isn't everything. Two tubes with similar FOM can have different SNR, resolution, EBI, halo, gain, and cosmetic characteristics. QDEF evaluates the complete specification set when helping customers select an intensifier.
Understanding Photonis ECHO Tube Specifications
When comparing Photonis ECHO image intensifier tubes, consider the complete specification sheet rather than focusing exclusively on FOM.
- SNR (Signal-to-Noise Ratio) — describes the relationship between usable image information and image noise as available light decreases.
- Resolution — measured in line pairs per millimeter (lp/mm) and describes the tube's ability to resolve fine detail.
- FOM (Figure of Merit) — calculated by multiplying SNR by resolution and useful as a general performance reference.
- EBI (Equivalent Background Illumination) — represents background output generated by the tube and becomes increasingly relevant under very low-light conditions.
- Halo — describes the visible bloom surrounding bright points of light. Photonis tubes are particularly well known for their small halo characteristics.
- Autogating — allows the intensifier to rapidly adapt to changing light conditions and helps maintain image quality in environments containing artificial illumination.
White & Green Phosphor Options
Photonis ECHO image intensifier tubes are available in both white phosphor and green phosphor configurations depending on current inventory.
Availability changes frequently, so contact QDEF if you are looking for a specific phosphor type, performance range, or cosmetic requirement.
Matched Photonis Tube Pairs for Binocular NVGs
When purchasing Photonis ECHO tubes for a binocular night vision system, QDEF evaluates available specifications and image characteristics when selecting a pair.
If you're purchasing tubes for a bino build, let us know your priorities. We'll work directly with you to select a pair based on available inventory, performance specifications, and cosmetic preferences.
Build a Complete Night Vision System
Building a complete system? Photonis ECHO image intensifier tubes can be selected as part of a custom night vision build through the QDEF Dark Room Night Vision Configurator. Choose your housing, image intensifier performance level, and optics to configure a system around your requirements.
Tube Upgrades & Installation
Already have a quality housing and optics? Upgrading the image intensifier tube or tubes can be an effective way to change the performance characteristics of an existing night vision system without replacing the entire device.
Quad Defense offers professional tube installation, inspection, purging, housing upgrades, and night vision service through The Service Bench.
Don't See the Photonis Tube You're Looking For?
Our image intensifier inventory changes constantly, and not every available Photonis tube is listed online. If you don't see the specifications, phosphor type, or cosmetic characteristics you're looking for, contact us.
We'll work directly with you to review available inventory and select a Photonis ECHO tube based on your preferred specifications and cosmetics.
Phosphor color and image appearance may vary between photographs, cameras, displays, and individual tubes. Product photos should not be considered an exact representation of phosphor appearance.
