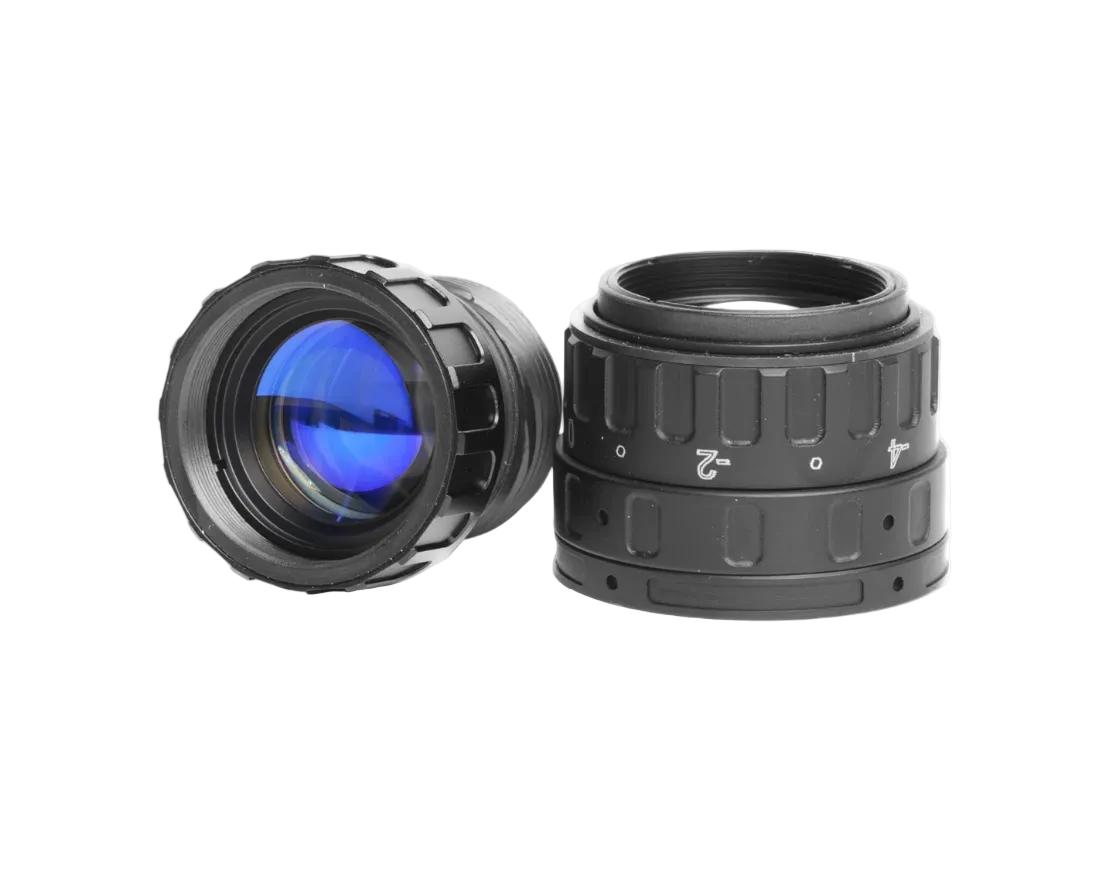

MBS | Optics U.L.R Ultra Light Rugged Optics Set
MBS | Optics U.L.R Ultra Light Rugged Optics Set
Couldn't load pickup availability
MBS ULR Ultra Light Rugged Optics Set
The MBS ULR (Ultra Light Rugged) Optics Set is a lightweight, ruggedized objective and eyepiece package designed for night vision systems using standard PVS-14-pattern optics.
MBS combines lightweight optical assemblies with reinforced aluminum objective and diopter interfaces, targeting two common priorities in a modern night vision build: reducing overall system weight while maintaining durability at critical mechanical interfaces.
At approximately 98g per complete objective and eyepiece set, MBS ULR provides a substantial weight reduction compared with traditional Noctis mil-spec optics while retaining the familiar PVS-14-pattern optical architecture.
Why Choose MBS ULR Optics?
- Approximately 98g per complete optical set
- Designed for PVS-14-pattern optical interfaces
- Reinforced aluminum objective sleeve
- Aluminum ruggedized diopter assembly
- 40Β° field of view
- F/1.23 objective
- 72 lp/mm specified resolution
- Lightweight alternative to traditional Mil-Spec glass
- Available for compatible monocular and binocular configurations
Ultra Light. Ruggedized.
Reducing optical weight can make a meaningful difference in the completed weight of a night vision system, particularly with binocular configurations where the objective and eyepiece assemblies are duplicated.
A complete MBS ULR objective and eyepiece set weighs approximately 98g, compared with approximately 126g for the referenced Noctis optical set.
That represents approximately 28g of weight savings per optical set. On a binocular system using two complete sets of optics, the difference increases to approximately 56g β nearly 2 oz removed from the completed system.
That's approximately a 22% reduction in optical-set weight compared with the referenced Noctis configuration.
Reinforced Aluminum Interfaces
MBS designed the ULR around more than weight reduction. Both the objective and eyepiece assemblies incorporate reinforced aluminum interfaces at critical mechanical areas.
The objective uses an aluminum sleeve, while the eyepiece is paired with the Steele Industries Lightweight Rugged Diopter and diopter lock ring.
This construction is intended to increase durability around areas that can be susceptible to damage from impacts and drops while maintaining the lightweight design of the complete optical package.
Optical Performance
MBS specifies the ULR optical system at 72 lp/mm resolution with a traditional 40Β° field of view.
According to MBS optical testing, the ULR system demonstrates strong flare suppression and contrast along with approximately 8% greater light transmission than the referenced Noctis optics.
The objective uses an F/1.23 optical design with a specified spectral range of 530β910nm.
Compatibility
MBS ULR optics are designed for housings that accept standard PVS-14-pattern objective and eyepiece assemblies.
This makes the ULR system suitable for a wide range of compatible monocular and binocular night vision housings, whether used in a new build or as part of an existing system upgrade.
Compatibility ultimately depends on the specific housing and configuration. If you're unsure whether MBS ULR optics will work with your system, contact QDEF and we'll verify the configuration before ordering.
Technical Specifications
Eyepiece
- Resolution: 72 lp/mm
- System Distortion: 5%
- Effective Focal Length: 25.1mm Β± 0.5mm
- Field of View: 40Β°
- Eye Relief: 29mm
- Spectral Range: Visible Light
- Diopter: Steele Industries Lightweight Rugged Diopter
Objective
- Resolution: 72 lp/mm
- System Distortion: 5%
- Effective Focal Length: 25.1mm Β± 0.5mm
- F-Number: F/1.23
- Field of View: 40Β°
- Spectral Range: 530β910nm
What's Included
Select the appropriate configuration for your night vision system:
- Monocular Set: One MBS ULR objective assembly, one MBS ULR eyepiece assembly, and applicable locking hardware
- Binocular Set: Two MBS ULR objective assemblies, two MBS ULR eyepiece assemblies, and applicable locking hardware
MBS ULR vs. Mil-Spec & RPO
QDEF offers three primary optical configurations across many of our custom night vision systems: MBS ULR, Mil-Spec Noctis/NVD, and RPO 4.0.
Mil-Spec Noctis/NVD is the traditional choice for proven optical performance, durability, and broad compatibility.
MBS ULR combines significant weight reduction with reinforced aluminum interfaces, making it particularly attractive for users who want a lightweight optical package with additional attention paid to mechanical durability.
RPO Ultralight is another premium lightweight option designed around reducing the weight of the objective and eyepiece assemblies for lightweight night vision builds.
Each has a different balance of weight, construction, optical characteristics, and cost. The right choice depends on the housing, intended use, and priorities of the complete system.
Building a Lightweight Night Vision System?
Optics are only one part of total system weight. Housing selection, image intensifiers, battery configuration, mounting hardware, and optics all contribute to the final weight and balance of a completed night vision device.
Quad Defense can help match the appropriate housing, image intensifiers, and optical package to your performance, durability, weight, and budget requirements.
