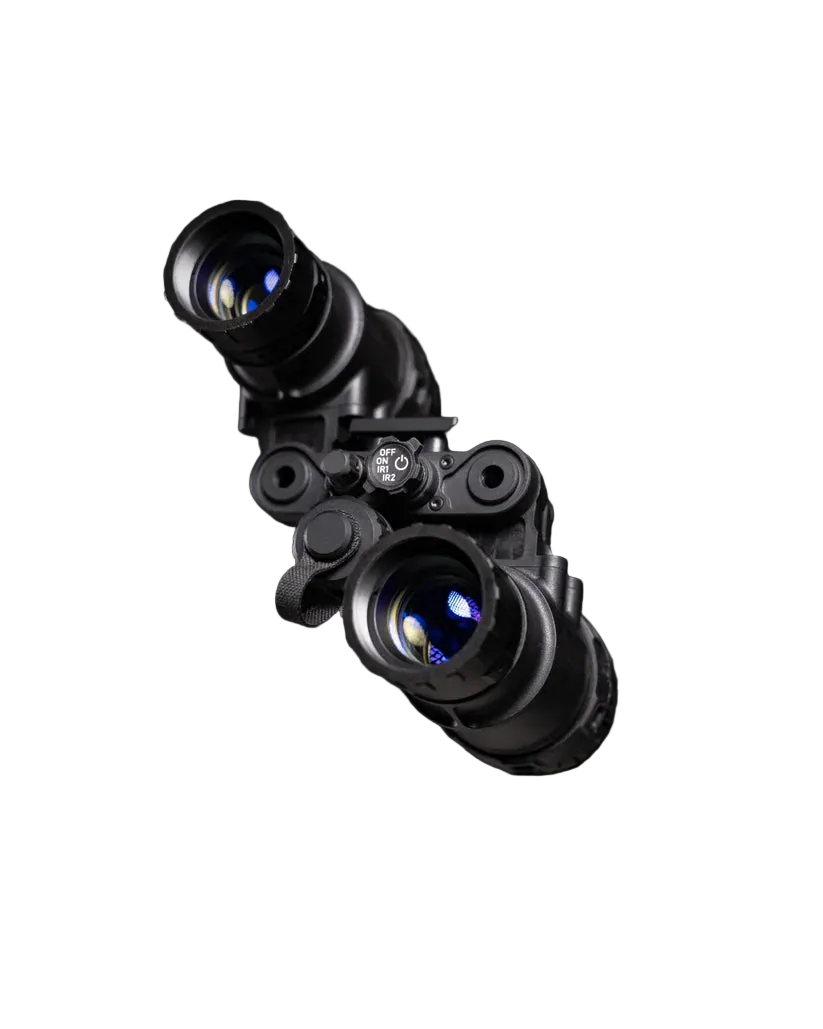

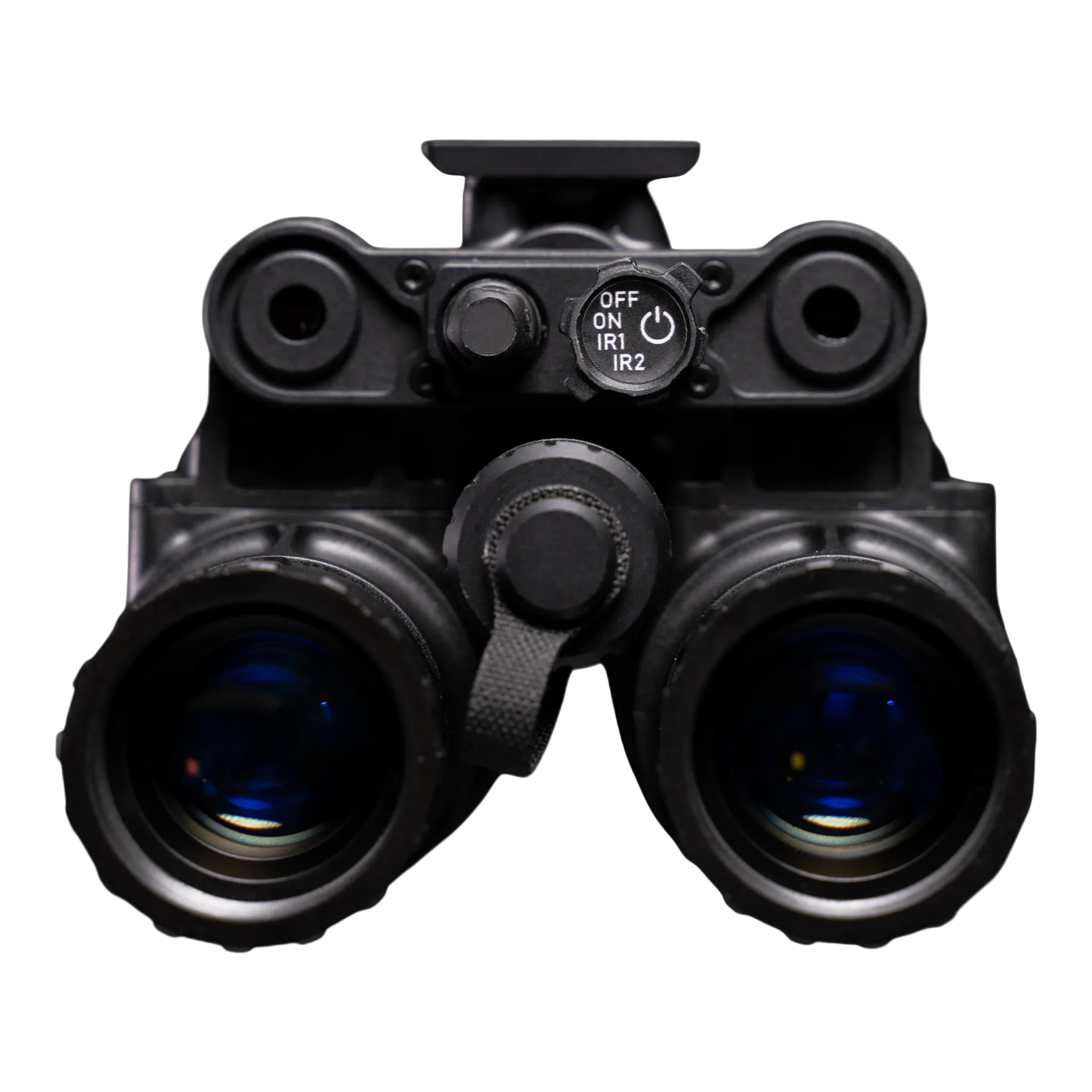

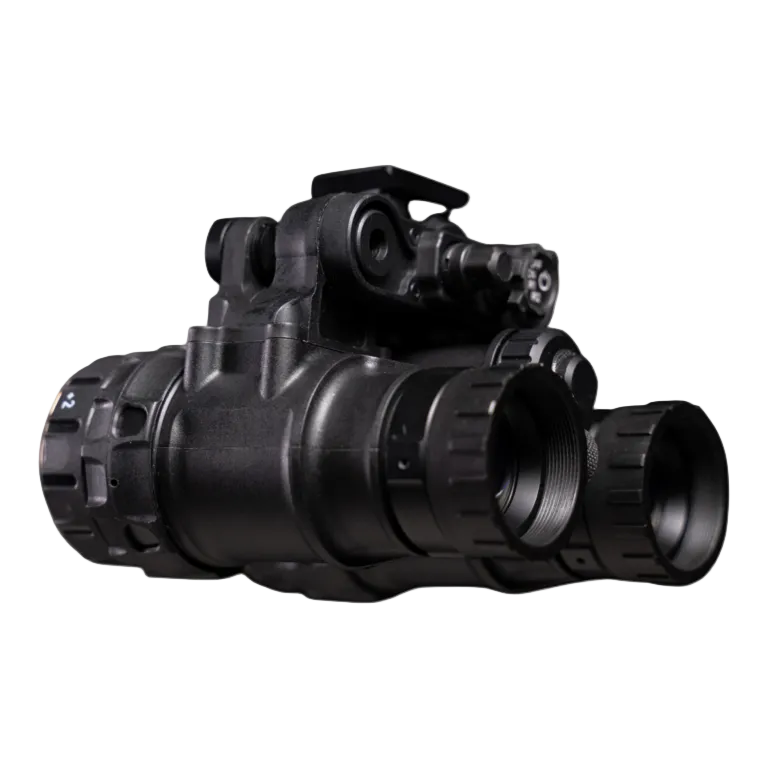

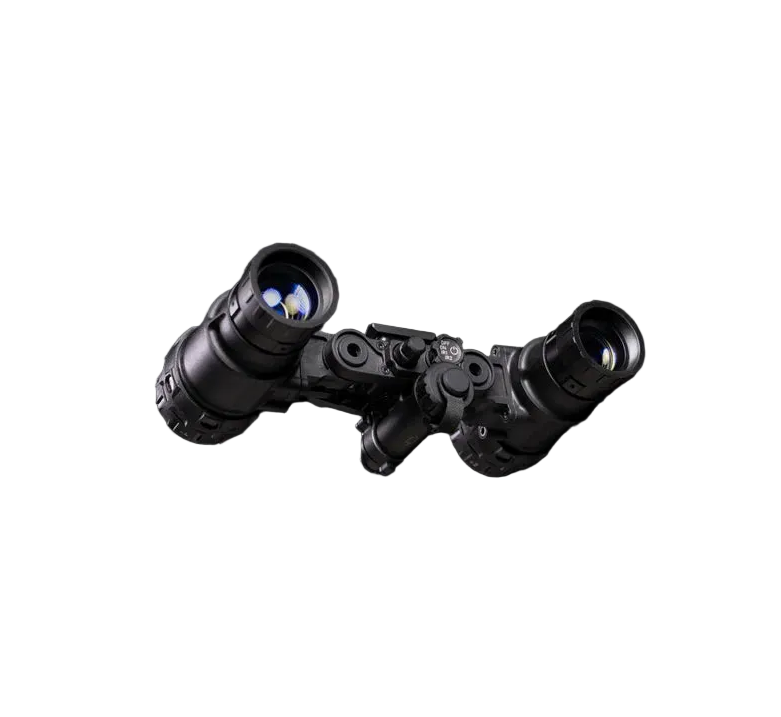

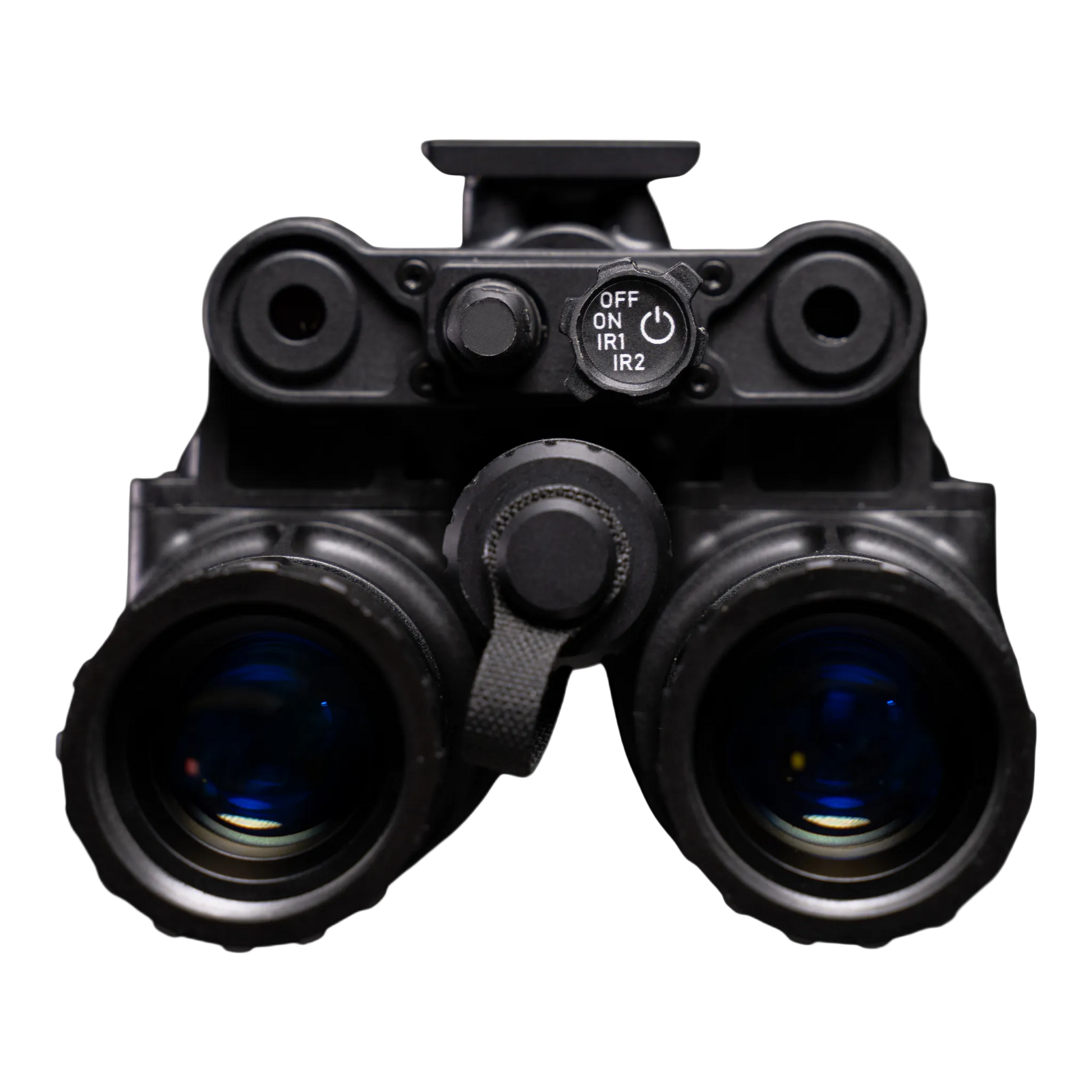

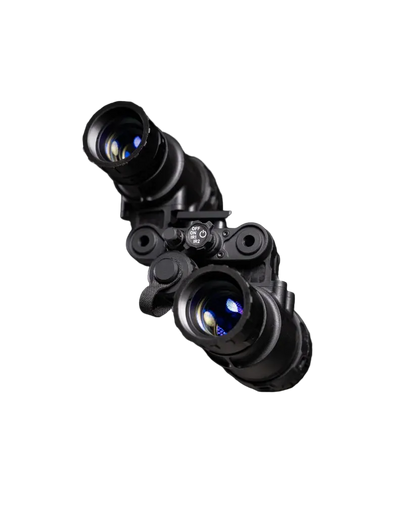

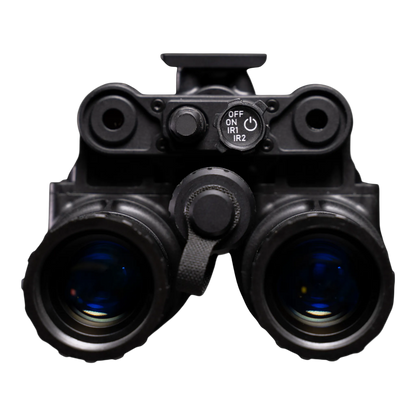

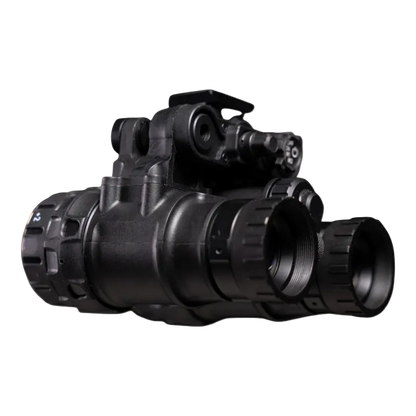

Low Light Innovations | UH-1 Night Vision Binocular

BASE price does NOT include Intensifier Tubes

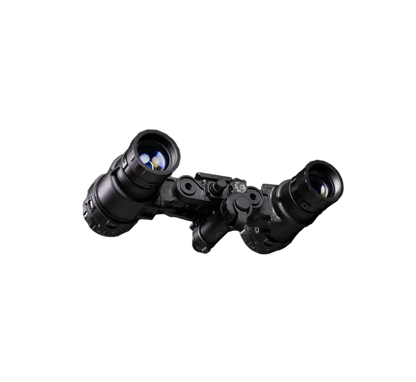

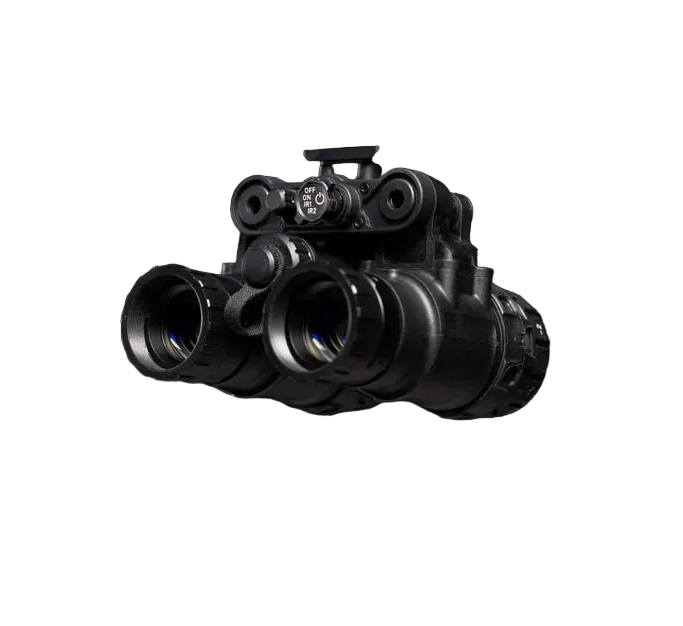

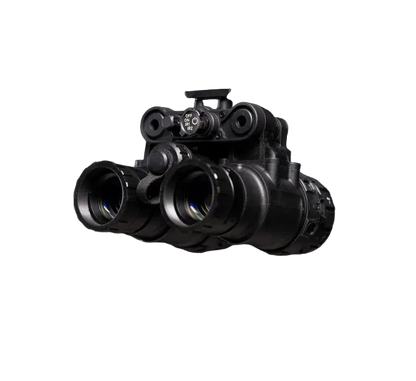

The Low Light Innovations UH-1 is an affordable, USA-made, feature-packed dual-tube binocular night vision platform from Low Light Innovations.

The housing is constructed from fiber-reinforced polymer with an aluminum dovetail, aluminum rear plate, and aluminum battery compartment. This material set delivers structural precision and durability at a lower production cost than the magnesium and titanium construction of the flagship MH-1. The UH-1 is user serviceable with field-level access for tube swaps and routine maintenance. It is non-modular by design.

The UH-1 runs on AA batteries with external power input via Fischer 4-pin connector. Both sources can be connected at the same time, and onboard smart circuit logic provides automatic failover if external power is interrupted. Continuous runtime is approximately 25 to 90 hours depending on configuration and power source.

The optical system is PVS-14 compatible and the housing is fully tube agnostic, accepting any standard 18mm image intensifier tube including MX-10160 and MX-11769.

The UH-1's manual gain assembly connects without soldering, allowing installation and service at the field level. Every UH-1 is designed and assembled in East Greenwich, Rhode Island, manufactured in the United States, and backed by a transferable lifetime warranty.

SPECIFICATIONS:

• POWER SOURCE: AA / 4-PIN FISCHER
• FOCUS RANGE: 9.8" TO INFINITY
• OPERATION TIME: APPROXIMATELY 25-90 HOURS
• MAGNIFICATION: 1× (ONE POWER)
• FIELD OF VIEW: 40 DEGREES
• INTERPUPILLARY ADJUSTMENT: 54 TO 78MM
• DIOPTER ADJUSTMENT: -6 TO +2
• EYE RELIEF: 25MM
• MINIMUM WEIGHT: 459g (housing only)
• WATER RESISTANCE: DESIGNED TO MEET IP68
• INTENSIFIER TUBES: COMPATIBLE WITH MX-10160 / MX-11769 (not included)
• OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE (not included)
• WARRANTY: TRANSFERABLE LIFETIME WARRANTY
• EXPORT: EAR-99 (HOUSING ONLY)

Made in the USA

All tubes are hand picked. Please contact us if you require certain specs.

Only Carson/Noctis optics on our build unless otherwise specified.
