QDEF // LASER & VCSEL IR ILLUMINATION
LASERSPEED
TH3R
Less bulk • More night
The Laserspeed TH3R combines a green visible aiming laser, an IR aiming laser, and an adjustable 850 nm VCSEL IR illuminator in a compact three-in-one system. At a listed 173 g / 6.10 oz, all three functions come together in one lightweight package.
Your setup already has enough going on. TH3R brings four selectable illumination patterns, co-aligned emitter adjustment, and a Quick Aim Diffuser without taking over the rail.
01 // PLATFORM FEATURES
Three functions in a compact package
Integrated laser & illumination
A green visible aiming laser, IR aiming laser, and VCSEL IR illuminator provide three functions with selectable low and high output settings.
Four illumination patterns
Select 2°, 7°, 12°, or 17° beam angles using a push-pull adjustment system.
Co-aligned adjustment
A single windage and elevation adjustment controls the alignment of the visible laser, IR aiming laser, and IR illuminator.
Quick Aim Diffuser
The QAD changes the concentrated aiming point into a larger circle for an alternate aiming display at close distances.
02 // VCSEL IR ILLUMINATION
Four patterns at your fingertips
The TH3R's VCSEL illuminator offers four selectable beam divergence angles through a push-pull adjustment system. Choose from the narrowest 2° pattern through the broadest 17° pattern.
2° //
Narrowest pattern
The most concentrated of the four available illumination patterns.
7° //
Medium-narrow pattern
A step wider than the 2° setting.
12° //
Wider coverage
A broader illumination pattern for more coverage within your view.
17° //
Broadest pattern
The widest of the four selectable illumination patterns.
03 // CONTROLS & ALIGNMENT

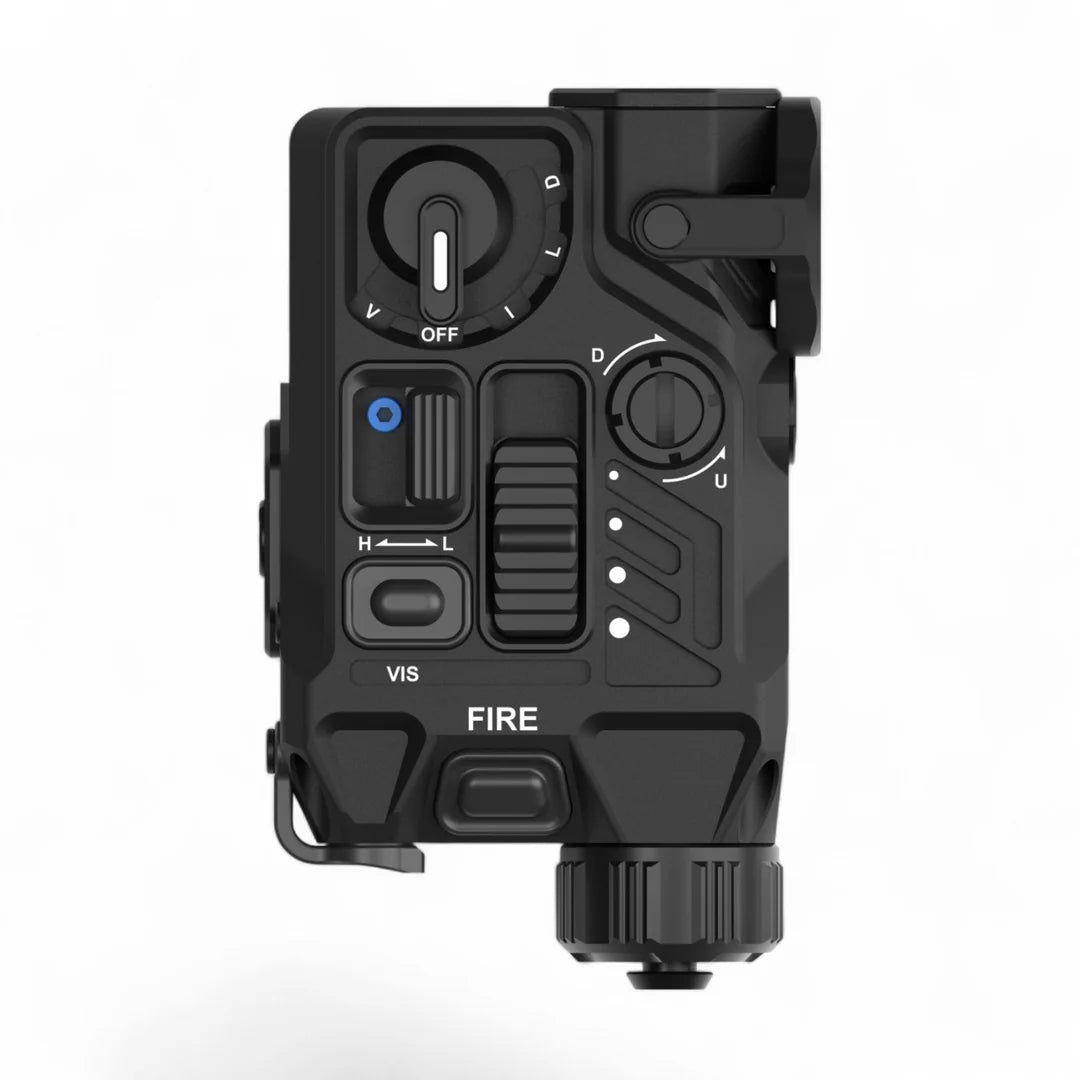

Built for hands-on use
Tactile, glove-friendly controls bring together momentary activation, visible laser override, and push-pull illumination adjustment .
The three emitters share a co-aligned adjustment system with a single windage and elevation adjustment. The Quick Aim Diffuser adds the option to change the concentrated aiming point into a larger aiming circle.
04 // LASER & ILLUMINATOR OUTPUT
Know your output
| Component | Wavelength | Low | High |
|---|---|---|---|
| Visible green laser | 515 ±5 nm | <0.7 mW | <5 mW |
| IR aiming laser | 850 ±15 nm | <0.7 mW | <5 mW |
| VCSEL IR illuminator | 850 ±15 nm | <5 mW | <70 mW |
05 // CONSTRUCTION & POWER
Lightweight with durable materials
The TH3R uses 6061 aluminum and 304 stainless steel construction with a listed weight of 173 g / 6.10 oz. Its housing measures approximately 3.86 × 2.24 × 1.30 inches.
The system carries an IP68 rating, specified at 2 meters for 1 hour, and a published operating temperature range of -40°C to +55°C (-40°F to +131°F) .
SINGLE-BATTERY POWER
Compatible with one CR123A or one 16340 battery.
06 // TECHNICAL SPECIFICATIONS
The details
- Manufacturer
- Laserspeed
- Model
- LS-TH3R
- System
- 3-in-1 laser aiming and IR illumination
- Weight
- 173 g / 6.10 oz
- Dimensions
-
98 × 57 × 33 mm
Approximately 3.86 × 2.24 × 1.30 inches - Construction
- 6061 aluminum / 304 stainless steel
- Battery compatibility
- 1 × CR123A or 1 × 16340
- IR illuminator beam angles
- 2° / 7° / 12° / 17°
- Advertised illuminator range
- ≥2,000 meters
- Advertised visible / IR laser range
- ≥500 meters
- Operating temperature
-
-40°C to +55°C
-40°F to +131°F - Waterproof rating
- IP68; 2 meters for 1 hour
- Listed shock resistance
- 1,000G, 15Hz
- Mounting torque
- 30–35 in-lbs
- Listed windage / elevation increment
- 0.3 mrad / 1 MOA per click
- Adjustment range
- ±2°
- Listed model colors
- Black, Grey, FDE; see QDEF ordering options for current availability at launch
ABOUT THE SPECIFICATIONS
Specifications reflect published product data. Range figures are advertised values, not guaranteed identification distances. Actual visibility depends on conditions and night vision equipment.
The published adjustment increment is reproduced as listed; 0.3 mrad is approximately 1.03 MOA.
QDEF SUPPORT // COMING SOON
Questions before launch?
Putting together your night setup? Contact QDEF with questions about the TH3R, launch configurations, or included accessories.
Sales open and shipping begins the first week of November 2026.
