LaserSpeed LS-M6TR

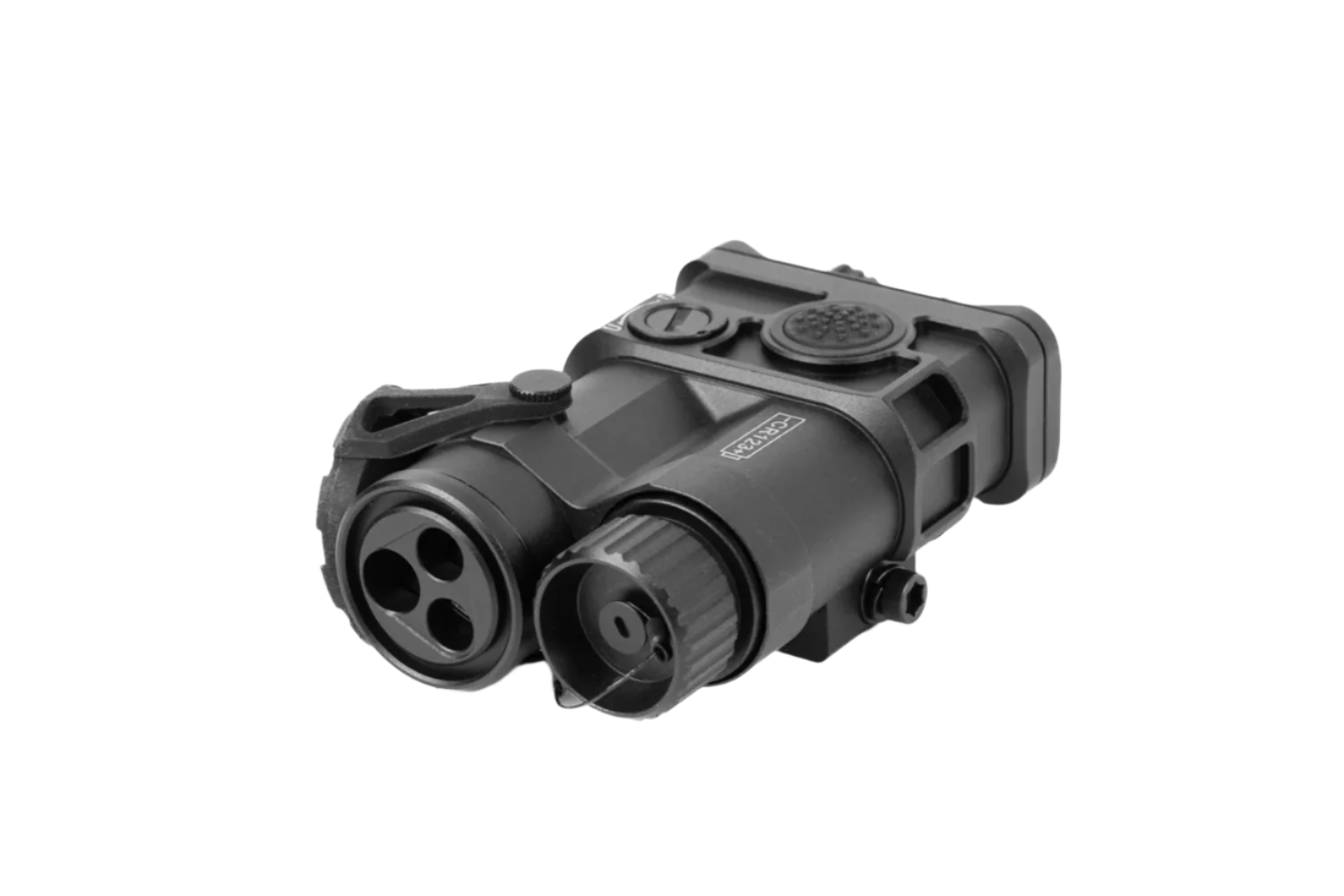

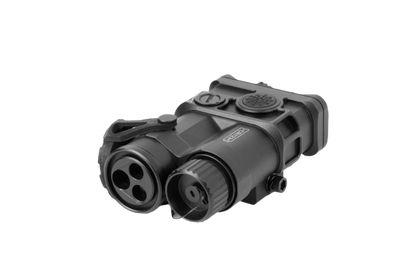

The LaserSpeed LS-M6TR is a compact multi-function laser aiming module combining a visible green laser, infrared aiming laser, and adjustable VCSEL infrared illuminator in a single rugged housing.
Designed for use with night vision systems, the M6TR provides selectable low- and high-power laser and illuminator modes, co-aligned emitters, an adjustable IR illumination pattern, visible laser override, and Crane-style remote switch compatibility.
The housing is machined from 6061-T6 aluminum and features an integrated Picatinny mount, IP68 waterproof construction, and a compact 7.51 oz footprint. Power is supplied by a single CR123A or rechargeable 16340 battery.
Why Choose the LS-M6TR?
- Visible green laser, IR aiming laser, and VCSEL IR illuminator in one compact module
- Full-power IR aiming laser with 2 mW output
- Full-power VCSEL IR illuminator with up to 10 mW output
- Selectable Class 3A and full-power operating modes
- Adjustable 40–150 mrad VCSEL illuminator divergence
- Co-aligned visible, IR aiming, and IR illumination system
- Visible laser override for immediate activation
- Momentary and constant-on activation
- Crane-style remote pressure switch compatibility
- 6061-T6 aluminum construction
- Integrated Picatinny mounting system
- IP68 waterproof construction
- Compact 7.51 oz / 213 g weight
Laser Output & Modes
The LS-M6TR provides separate low- and high-power settings for its aiming and illumination functions, with selectable Class 3A and full-power operating modes.
Full-Power Output:
- Visible Green Laser: 5 mW Low / 5 mW High
- IR Aiming Laser: 2 mW Low / 2 mW High
- VCSEL IR Illuminator: 2 mW Low / 10 mW High
Class 3A Output:
- IR Aiming Laser: 0.7 mW Low / 0.7 mW High
- VCSEL IR Illuminator: 0.7 mW Low / 5 mW High
The visible green laser operates at 520 ±10 nm, while both infrared channels operate at 850 ±15 nm.
VCSEL IR Illuminator
The M6TR uses a VCSEL infrared illuminator with adjustable beam divergence from approximately 40–150 mrad.
The adjustable illuminator allows the user to change the size of the IR illumination pattern based on distance and environment. The beam can be tightened when more concentrated illumination is needed or opened up to illuminate a wider field of view under night vision.
In full-power high mode, the VCSEL illuminator provides 10 mW of IR output. Class 3A operation reduces maximum illuminator output to 5 mW.

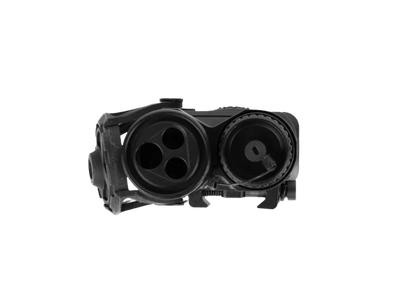

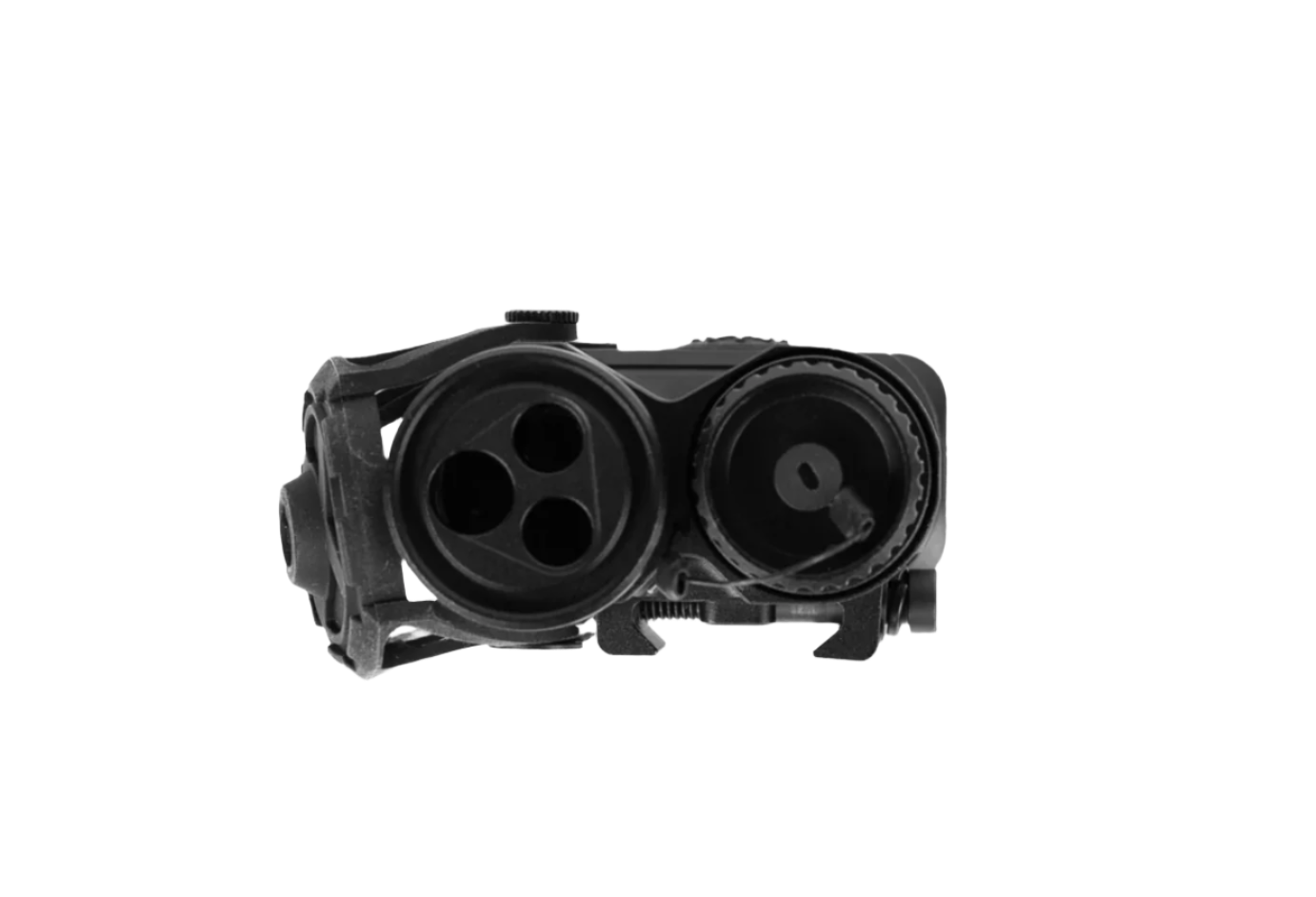

Co-Aligned Laser System
The visible laser, IR aiming laser, and IR illuminator are designed around a common alignment system. This simplifies adjustment and provides a consistent relationship between the visible and infrared aiming systems.
Windage and elevation adjustments are made directly from the housing using the integrated adjustment controls.

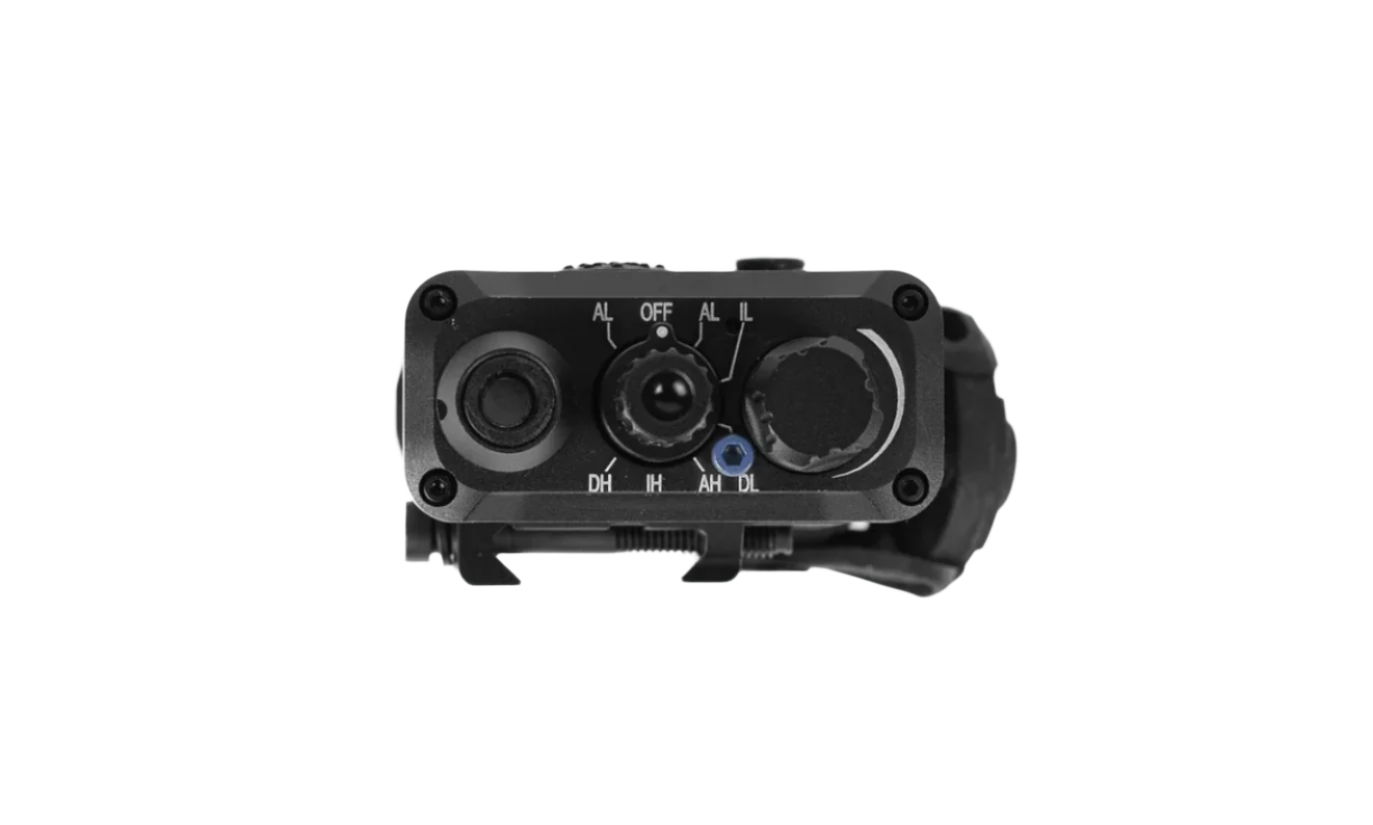

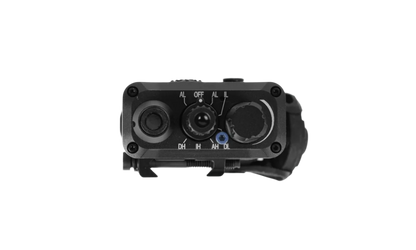

Controls & Activation
The LS-M6TR uses a rotary mode selector along with a top-mounted fire button. The included remote pressure switch provides the same activation functions as the onboard fire button.
Pressing and holding provides momentary activation, while a double-tap activates constant-on mode. Constant-on operation automatically shuts off after approximately five minutes and can also be cancelled with a single press.
A dedicated override button bypasses the current selector position for rapid access to the appropriate visible or infrared combination.
The M6TR also provides selectable Class 3A and Class 3B/full-power operation, allowing output to be reduced when maximum laser or illuminator power is not required.
6061-T6 Aluminum Construction
The LS-M6TR housing is constructed from 6061-T6 aluminum alloy for a balance of strength, durability, and weight.

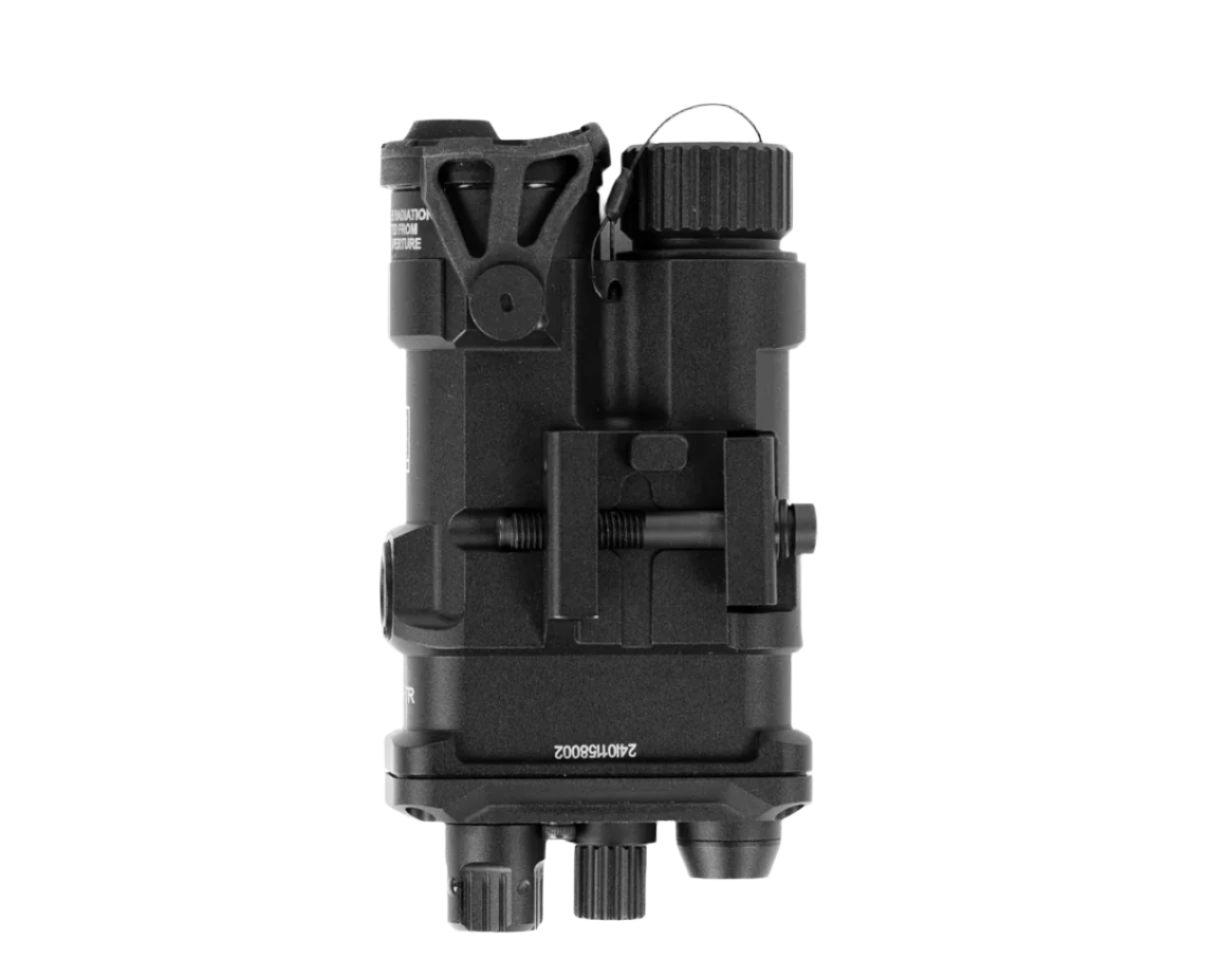

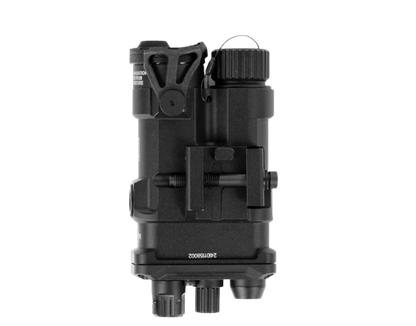

An integrated Picatinny mounting system allows the module to mount directly to a compatible rail without requiring a separate mounting interface. The complete unit weighs approximately 213 g / 7.51 oz.
The housing is rated IP68 waterproof and designed to operate in temperatures ranging from approximately -20°C to +50°C (-4°F to +122°F).

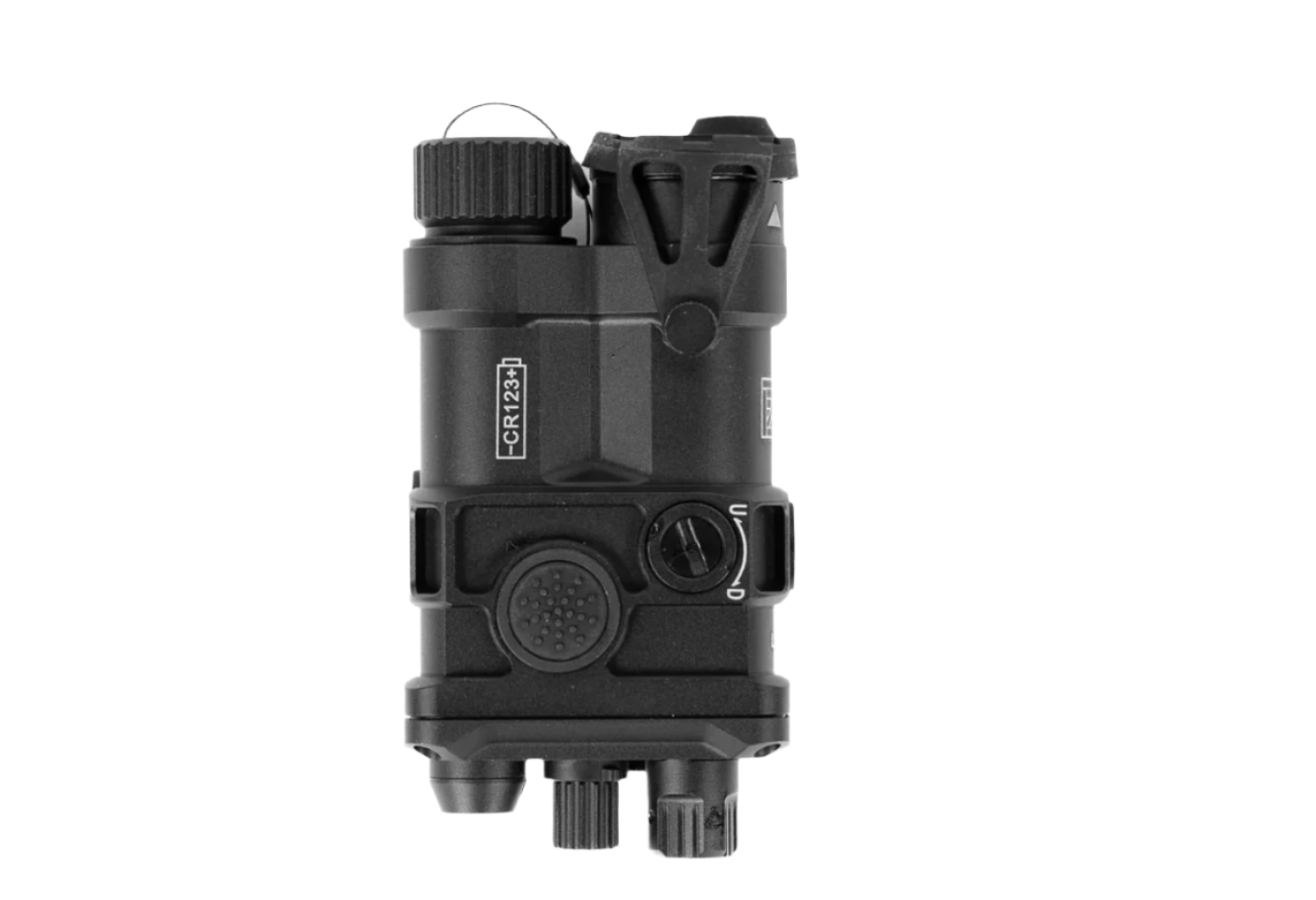

Power

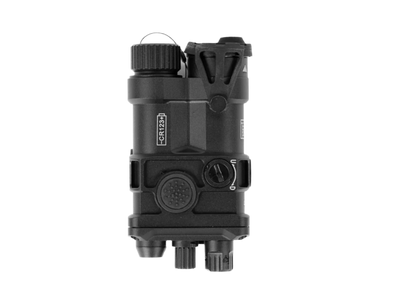

The M6TR operates from a single CR123A or rechargeable 16340 battery, providing a common and easily replaceable power source.
A low-battery indicator provides a visual warning when battery voltage drops and replacement or recharging is required.
Specifications
- Model: LaserSpeed LS-M6TR
- Visible Laser: Green
- Visible Laser Wavelength: 520 ±10 nm
- Visible Laser Output: 5 mW Low / 5 mW High (Full Power)
- IR Aiming Laser Wavelength: 850 ±15 nm
- IR Aiming Laser Output: 2 mW Low / 2 mW High (Full Power)
- IR Aiming Laser Output – Class 3A: 0.7 mW Low / 0.7 mW High
- IR Illuminator: VCSEL
- IR Illuminator Wavelength: 850 ±15 nm
- IR Illuminator Output: 2 mW Low / 10 mW High (Full Power)
- IR Illuminator Output – Class 3A: 0.7 mW Low / 5 mW High
- VCSEL Illuminator Divergence: 40–150 mrad
- Material: 6061-T6 Aluminum Alloy
- Dimensions: 102 × 57 × 37 mm / 4.01" × 2.24" × 1.46"
- Weight: 213 g / 7.51 oz
- Mount: Integrated Picatinny mount
- Remote Switch: Crane-style pressure switch interface
- Waterproof Rating: IP68
- Operating Temperature: -20°C to +50°C (-4°F to +122°F)
- Battery: 1 × CR123A or 16340

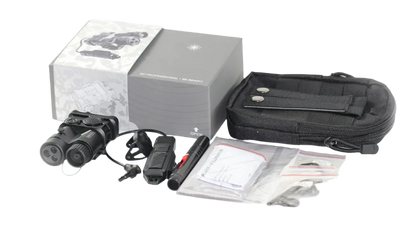

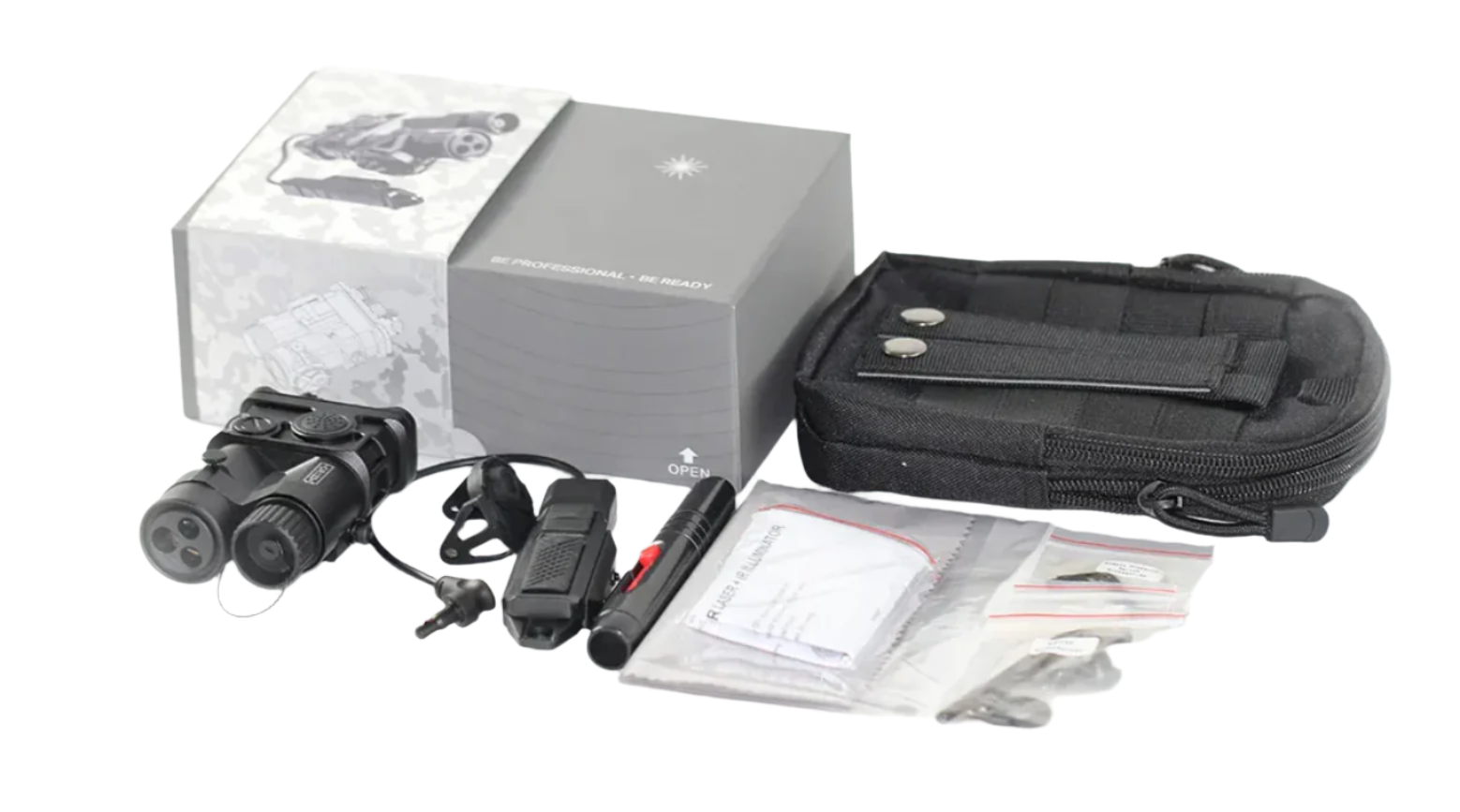

What's Included
- LaserSpeed LS-M6TR
- Remote pressure switch
- Diffuser
- Lens cleaning cloth
- Cleaning brush
- Adjustment wrench
- Soft carrying bag
- User manual
Need Help With Your Laser & Night Vision Setup?
The LS-M6TR is a strong option for users looking for a compact laser aiming module with a VCSEL IR illuminator, selectable output levels, and industry-standard remote switch compatibility.
If you're comparing the M6TR with another laser or need help pairing a laser with your night vision system, contact Quad Defense and we'll help determine the right setup for your application.
Enter Darkness.
ITAR
ITAR
QDEF COMPLIANCE // U.S. EXPORT CONTROL
Export &
ITAR Compliance
Certain products, components, technical data, and services offered by Quad Defense may be controlled under United States export-control laws and regulations.
These requirements may include the International Traffic in Arms Regulations (ITAR), the Export Administration Regulations (EAR), or other applicable U.S. laws and regulations.
Customers are responsible for understanding and complying with the export-control requirements applicable to the products or information they purchase, receive, transfer, resell, or otherwise provide to others.
Do not export, re-export, transfer, release, or provide controlled products, technical data, or services to a foreign person, foreign destination, or unauthorized end user without first determining whether U.S. Government authorization is required.
This includes transfers that may occur inside the United States when controlled technical data or other controlled items are released to a foreign person.
What Is ITAR?
The International Traffic in Arms Regulations are administered by the U.S. Department of State's Directorate of Defense Trade Controls (DDTC).
ITAR governs defense articles, defense services, and related technical data identified on the United States Munitions List, as well as certain exports, temporary imports, reexports, retransfers, and other controlled transactions.
Not every product sold by Quad Defense is necessarily ITAR-controlled. Export classification depends on the specific product, component, technology, technical data, and transaction.
Night Vision & Related Equipment
Night vision products and related equipment may be subject to U.S. export-control restrictions depending on their classification, configuration, technical characteristics, origin, and intended destination or end user.
Some products may fall under ITAR jurisdiction while others may be controlled under the Export Administration Regulations or another regulatory framework.
The absence of an “ITAR” label on a product page should not be interpreted as confirmation that the product is unrestricted for international transfer.
Who May Receive Controlled Items?
Export-control rules can restrict who may receive certain products, technical data, or defense services.
ITAR distinguishes between U.S. persons and foreign persons. The applicable regulatory definitions should be used when determining whether a particular transfer or release requires authorization.
Citizenship alone should not be used as the sole test for every export-control determination.
Authorization May Be Required
Depending on the item and circumstances, U.S. Government authorization may be required before a controlled product or technical data may be:
- Exported from the United States
- Re-exported from one foreign country to another
- Retransferred to a different end user or end use
- Released or provided to a foreign person
- Sold or transferred to another party for a different destination or purpose
- Used to furnish a controlled defense service
Applicable licenses, agreements, exemptions, exceptions, or other authorizations must be determined before the transaction occurs.
Resale Does Not Remove Export Restrictions
Purchasing a product from Quad Defense and later reselling or transferring it does not eliminate applicable U.S. export-control restrictions.
Customers who resell controlled products are responsible for ensuring that subsequent transfers comply with applicable export-control laws, end-user restrictions, destination restrictions, licensing requirements, and other regulatory obligations.
Where appropriate, downstream purchasers should also be informed that the product may be subject to U.S. export-control restrictions.
Technical Information May Also Be Controlled
Export controls may apply not only to physical hardware but also to certain technical information associated with controlled products.
Depending on its content and classification, controlled technical data may include certain detailed information relating to the design, development, production, manufacture, assembly, operation, repair, testing, maintenance, or modification of controlled defense articles.
Quad Defense may therefore limit the distribution of certain technical information or documentation when necessary to comply with applicable export-control obligations.
Purchaser Acknowledgment
By purchasing or receiving export-controlled products, technical data, or services from Quad Defense, the purchaser acknowledges responsibility for complying with applicable U.S. export-control laws and regulations.
I understand that certain products or technical information provided by Quad Defense may be subject to U.S. export-control laws and regulations.
I will not export, re-export, transfer, release, or otherwise provide controlled products or technical data contrary to applicable U.S. law.
I understand that U.S. Government authorization may be required before certain items or technical data may be transferred to a foreign destination, foreign person, different end user, or different end use.
If I resell or transfer controlled products, I am responsible for determining and complying with applicable restrictions governing that subsequent transaction.
I understand that violations of U.S. export-control laws may result in significant civil, criminal, and administrative penalties.
Quad Defense May Refuse a Transaction
Quad Defense reserves the right to refuse, cancel, delay, or request additional information regarding any transaction when necessary to evaluate export-control compliance, end use, end user, destination, or other legal requirements.
This may include requesting information sufficient to verify purchaser identity, intended end use, ultimate destination, or other compliance information relevant to the transaction.
Classification & Legal Guidance
Information provided on this page is intended as a general compliance notice and does not constitute legal advice, an export classification, or authorization to export any specific product.
Customers requiring a formal classification or authorization should consult the applicable U.S. Government agency or qualified export-control counsel before proceeding with a transaction.
QDEF COMPLIANCE // QUESTIONS
Questions Before You Order?
If you have questions about whether Quad Defense can fulfill an order to a particular customer, destination, or organization, contact us before placing the order.
Email: sales@quaddefense.com
QDEF COMPLIANCE // U.S. EXPORT CONTROL
Export &
ITAR Compliance
Certain products, components, technical data, and services offered by Quad Defense may be controlled under United States export-control laws and regulations.
These requirements may include the International Traffic in Arms Regulations (ITAR), the Export Administration Regulations (EAR), or other applicable U.S. laws and regulations.
Customers are responsible for understanding and complying with the export-control requirements applicable to the products or information they purchase, receive, transfer, resell, or otherwise provide to others.
Do not export, re-export, transfer, release, or provide controlled products, technical data, or services to a foreign person, foreign destination, or unauthorized end user without first determining whether U.S. Government authorization is required.
This includes transfers that may occur inside the United States when controlled technical data or other controlled items are released to a foreign person.
What Is ITAR?
The International Traffic in Arms Regulations are administered by the U.S. Department of State's Directorate of Defense Trade Controls (DDTC).
ITAR governs defense articles, defense services, and related technical data identified on the United States Munitions List, as well as certain exports, temporary imports, reexports, retransfers, and other controlled transactions.
Not every product sold by Quad Defense is necessarily ITAR-controlled. Export classification depends on the specific product, component, technology, technical data, and transaction.
Night Vision & Related Equipment
Night vision products and related equipment may be subject to U.S. export-control restrictions depending on their classification, configuration, technical characteristics, origin, and intended destination or end user.
Some products may fall under ITAR jurisdiction while others may be controlled under the Export Administration Regulations or another regulatory framework.
The absence of an “ITAR” label on a product page should not be interpreted as confirmation that the product is unrestricted for international transfer.
Who May Receive Controlled Items?
Export-control rules can restrict who may receive certain products, technical data, or defense services.
ITAR distinguishes between U.S. persons and foreign persons. The applicable regulatory definitions should be used when determining whether a particular transfer or release requires authorization.
Citizenship alone should not be used as the sole test for every export-control determination.
Authorization May Be Required
Depending on the item and circumstances, U.S. Government authorization may be required before a controlled product or technical data may be:
- Exported from the United States
- Re-exported from one foreign country to another
- Retransferred to a different end user or end use
- Released or provided to a foreign person
- Sold or transferred to another party for a different destination or purpose
- Used to furnish a controlled defense service
Applicable licenses, agreements, exemptions, exceptions, or other authorizations must be determined before the transaction occurs.
Resale Does Not Remove Export Restrictions
Purchasing a product from Quad Defense and later reselling or transferring it does not eliminate applicable U.S. export-control restrictions.
Customers who resell controlled products are responsible for ensuring that subsequent transfers comply with applicable export-control laws, end-user restrictions, destination restrictions, licensing requirements, and other regulatory obligations.
Where appropriate, downstream purchasers should also be informed that the product may be subject to U.S. export-control restrictions.
Technical Information May Also Be Controlled
Export controls may apply not only to physical hardware but also to certain technical information associated with controlled products.
Depending on its content and classification, controlled technical data may include certain detailed information relating to the design, development, production, manufacture, assembly, operation, repair, testing, maintenance, or modification of controlled defense articles.
Quad Defense may therefore limit the distribution of certain technical information or documentation when necessary to comply with applicable export-control obligations.
Purchaser Acknowledgment
By purchasing or receiving export-controlled products, technical data, or services from Quad Defense, the purchaser acknowledges responsibility for complying with applicable U.S. export-control laws and regulations.
I understand that certain products or technical information provided by Quad Defense may be subject to U.S. export-control laws and regulations.
I will not export, re-export, transfer, release, or otherwise provide controlled products or technical data contrary to applicable U.S. law.
I understand that U.S. Government authorization may be required before certain items or technical data may be transferred to a foreign destination, foreign person, different end user, or different end use.
If I resell or transfer controlled products, I am responsible for determining and complying with applicable restrictions governing that subsequent transaction.
I understand that violations of U.S. export-control laws may result in significant civil, criminal, and administrative penalties.
Quad Defense May Refuse a Transaction
Quad Defense reserves the right to refuse, cancel, delay, or request additional information regarding any transaction when necessary to evaluate export-control compliance, end use, end user, destination, or other legal requirements.
This may include requesting information sufficient to verify purchaser identity, intended end use, ultimate destination, or other compliance information relevant to the transaction.
Classification & Legal Guidance
Information provided on this page is intended as a general compliance notice and does not constitute legal advice, an export classification, or authorization to export any specific product.
Customers requiring a formal classification or authorization should consult the applicable U.S. Government agency or qualified export-control counsel before proceeding with a transaction.
QDEF COMPLIANCE // QUESTIONS
Questions Before You Order?
If you have questions about whether Quad Defense can fulfill an order to a particular customer, destination, or organization, contact us before placing the order.
Email: sales@quaddefense.com
Share
- 5 stars: 1 (100%)
- 4 stars: 0 (0%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)

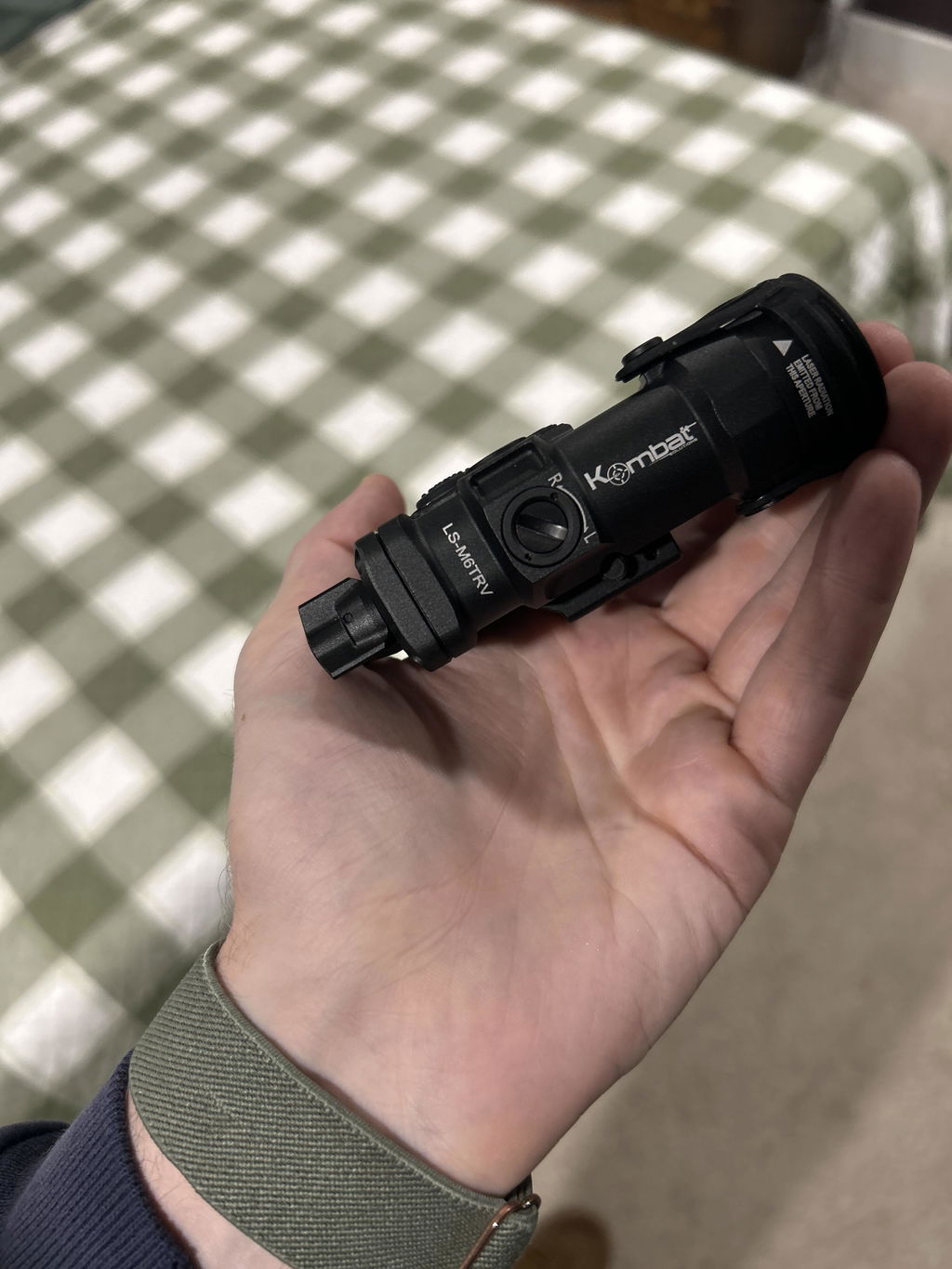

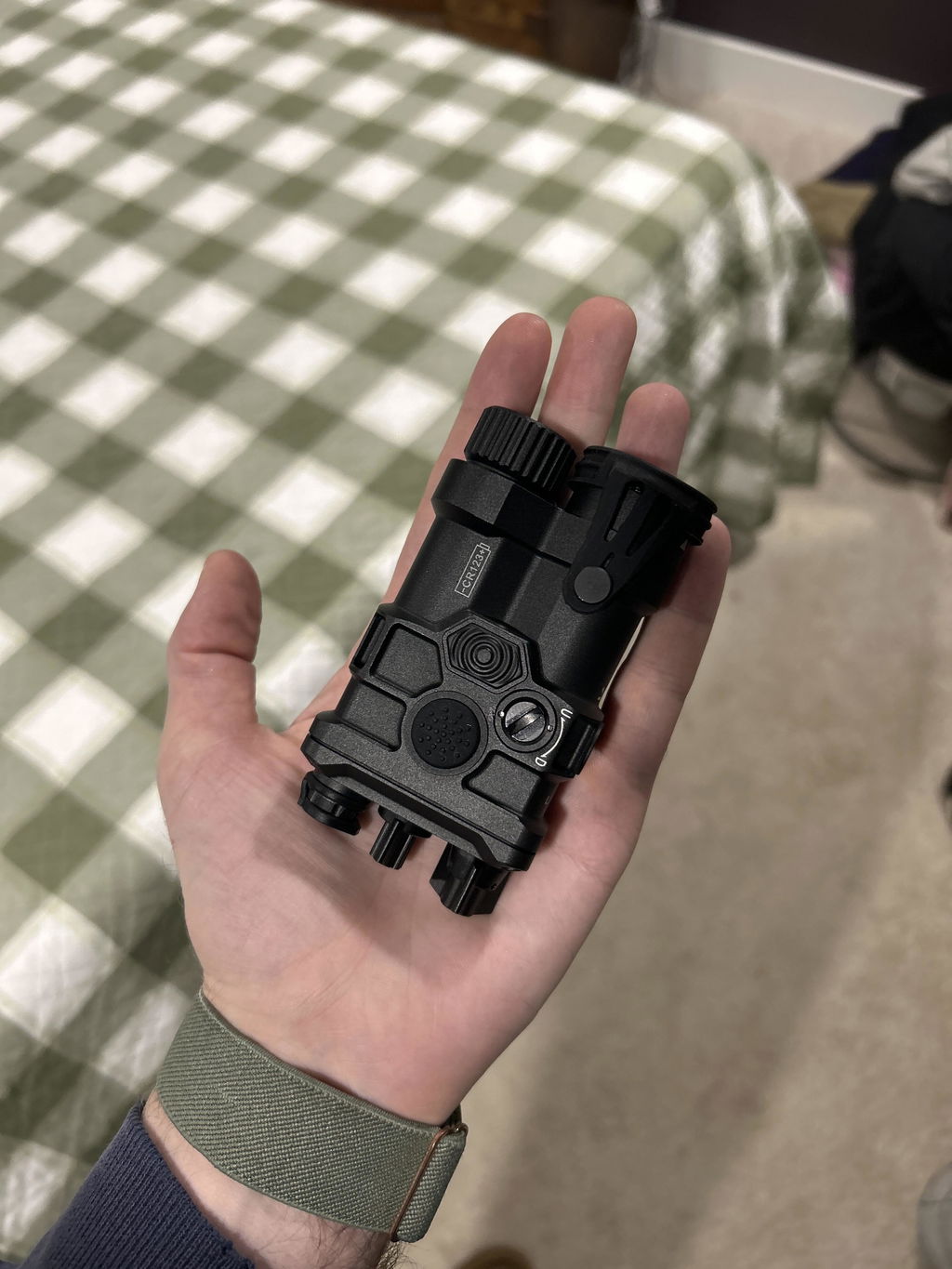

M6TR-V has exceeded expectations and genuinely is an excellent choice for a LAM needed for night shooting. The IR illum has excellent throw and doesn’t just flood out the environment with IR it has a nice focused circle of illum which under consistent fire never weakens or flash indicating a good PCB potting job within the unit itself
